ALTANA Auto-Chart User Manual

Page 33

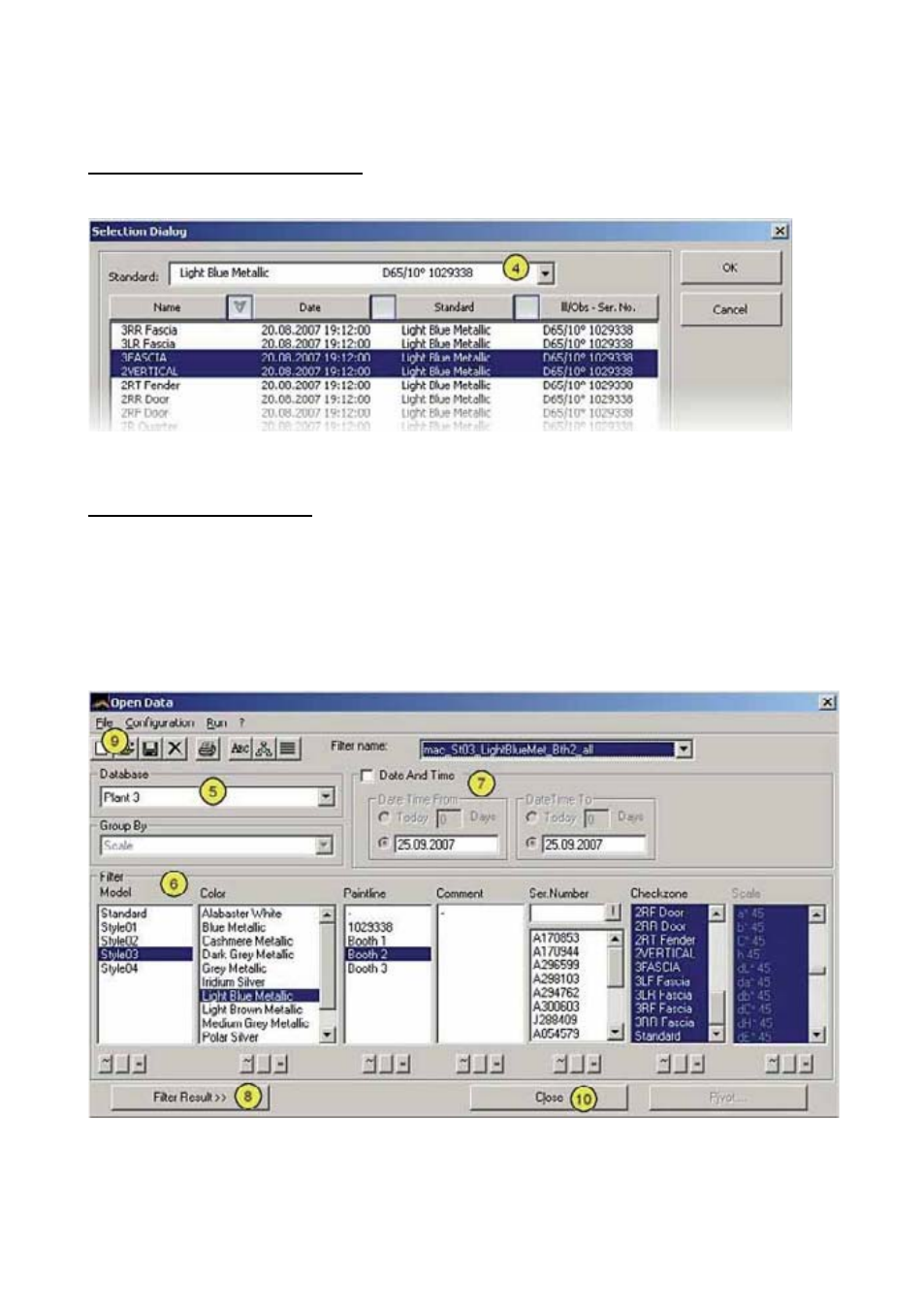

Selection

(3)

This function enables to populate the color graphs for further analysis:

Compare Standard and Samples
Select the appropriate standard

(4)

, then highlight the samples to be compared:

Press "OK" to start the population of the graphs.

Compare Sample readings
Select "none" in the Standard box

(4)

and highlight the samples to be analyzed. By

selecting "none" the first sample in the list will be automatically used as standard. Press
"OK" to start the population of the graphs.

Recall data from Database
Press the button "Run Filters"

(2)

, to activate the Open Data window:

Select the required database

(5)

and the filter parameters

(6)

, e.g. model, color, paintline,

and checkzone. The time range can be narrowed down, e.g. to the actual week or day

(7)

Use the "Filter Result" button

(8)

to display a list of the filtered objects and for selection of

individual records.
