Appendix B. Microcell Specifications
B-2

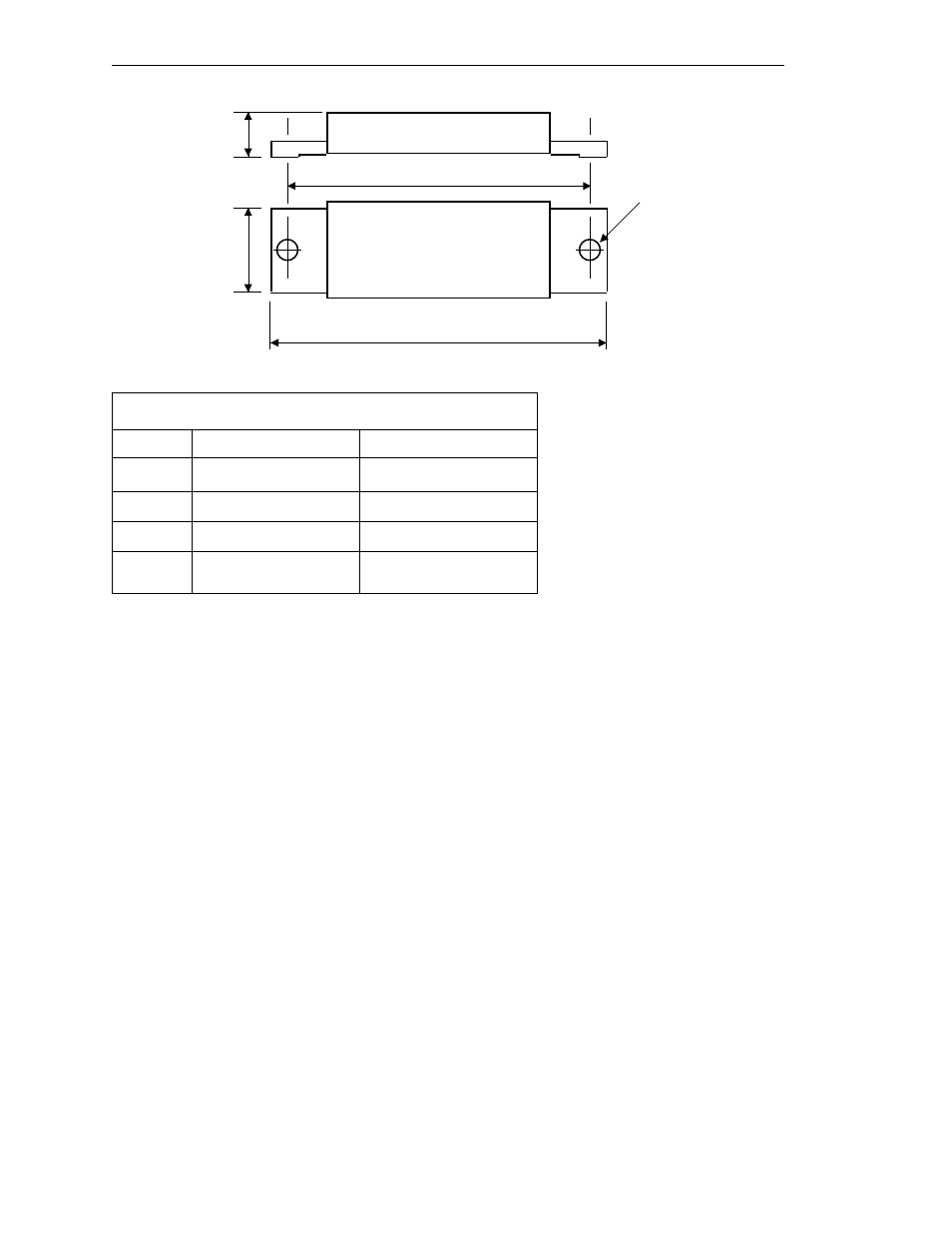

Reference Dimensions
3-inch Microcell 2-inch Microcell
A .375” (9.52mm) .375” (9.52mm)
B 0.75” (19.0mm) 0.75” (19.0mm)
C 3.00” (76.2mm) 2.00” (50.8mm)
D 2.75” (69.8mm) 1.75” (44.4mm)
Note: These dimensions are for reference only.
Use the Microcell drill template to locate, drill,
and tap the mounting holes.
A
B
C
D
0.18” (4.6mm)
Diameter
