Chapter 4. L-Cell Installation on Horizontal Beams
4-12

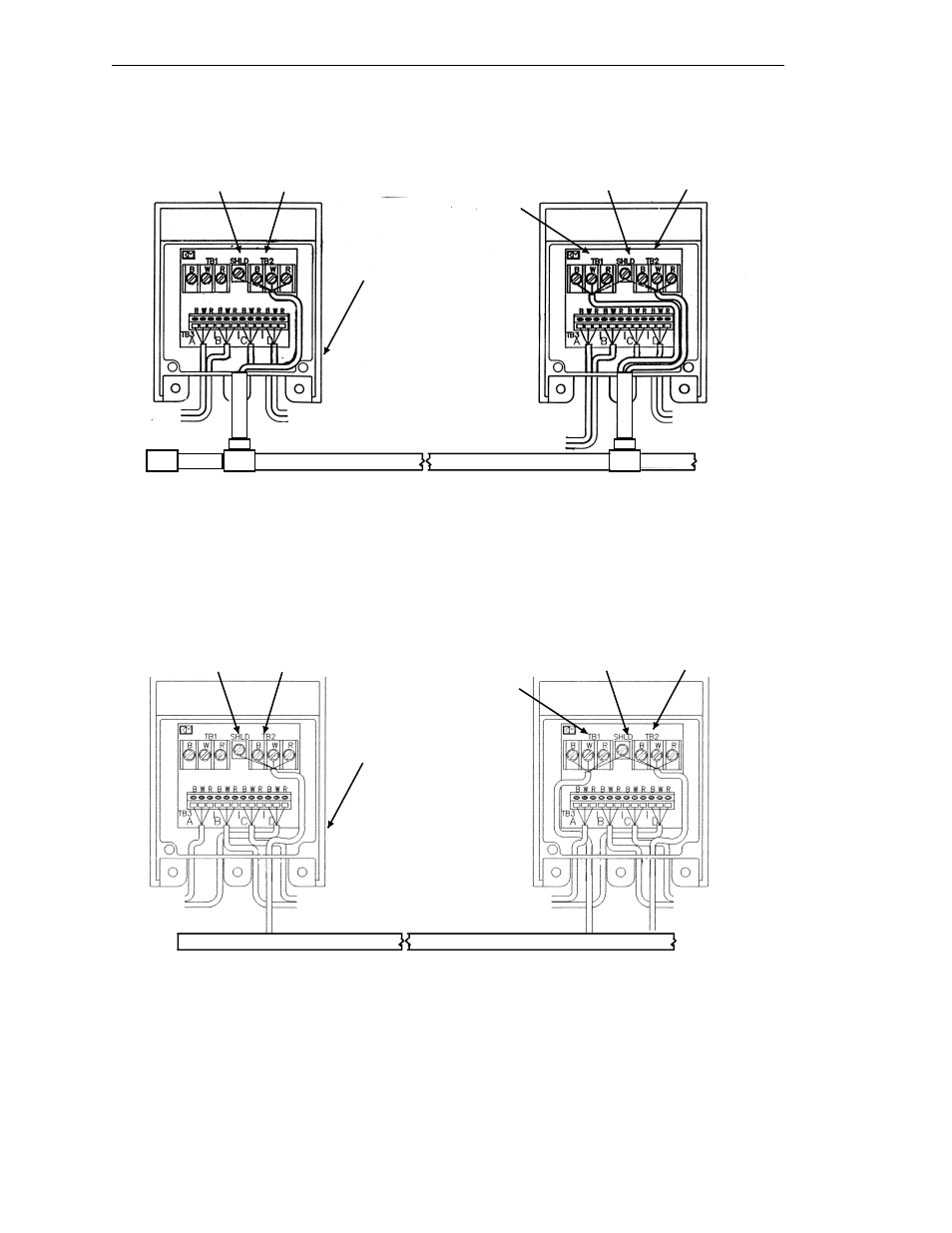

Figure 4-18. Wiring Junction Boxes Together — Conduited Installation
Connect 3-Conductor
Cable to TB2
Connect 3-Conductor
Cable from First
Junction Box to TB1
Connect another
3-Conductor
Cable to TB2
To Next Junction
Box or Signal
Processor
Connect Shield Wire
from Both Cables to
Shield Terminal
Connect Shield
Wire (typical)
To L-Cells A
and B
To L-Cells C and D
(if applicable) To L-Cells A
and B
First
Junction Box
To L-Cells C and D
(if applicable)
Figure 4-19. Wiring Junction Boxes Together — Non-Conduited Installation
Connect 3-Conductor
Cable to TB2
Connect 3-Conductor
Cable from First
Junction Box to TB1
Connect another
3-Conductor
Cable to TB2
Connect Shield Wire
from Both Cables to
Shield Terminal
Connect Shield
Wire (typical)
To L-Cells C and D
(if applicable) To L-Cells A
and B
First
Junction Box
To L-Cells A
and B
To L-Cells C and D
(if applicable)
To Next Junction
Box or Signal
Processor
Cable Tray
