HI 2151 Series Weight Controller
Profibus Interface Option
14
3.3.1 SETTING THE ADDRESS FOR BLIND UNITS
1. The Dipswitches on the PROFIBUS Interface Card represent a binary value as
follows:
Switch Binary Value
1 1
2 2
3 4
4 8
5 16
6 32
7 64
8 Not used
2. A PROFIBUS address can have a binary value from 1 to 125.
3. To set the address move the dipswitches that total the address binary number to the
“on” position. For example: Address 17 requires dip switches 5 (16) and 1 (1) to be
turned “on”, and all the other switches must be turned “off”. (See Fig. 3-6)
4. After setting the address, the PLC can communicate with the Blind Weight Controller.

NOTE: The PROFIBUS Station Address cannot be changed through the PROFIBUS network.

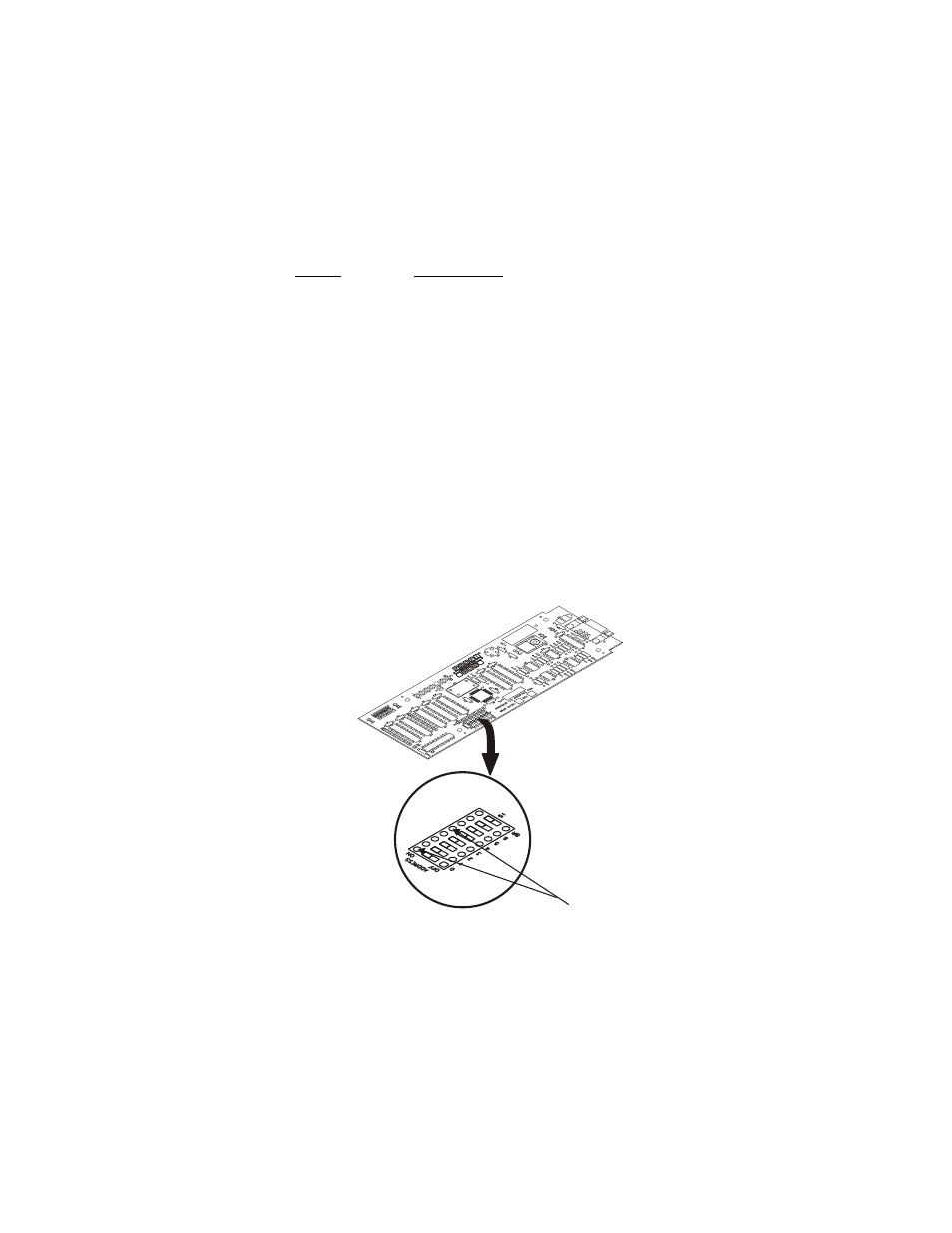

PROFIBUS PCB DIPSWITCH
SETTING ADDRESS
To set the address to 17, set
switches 1 and 5
and all other switches .
dipswitch
ON OFF
Figure 3-6

NOTE: For PROFIBUS Card Serial Numbers 1001 - 1050, the dipswitch numbers do not match
the silk screened numbers on the circuit board. To set an address of 17 on the dipswitch
turn on 1 & 5, which correspond to the silk screened numbers 0 & 4.
