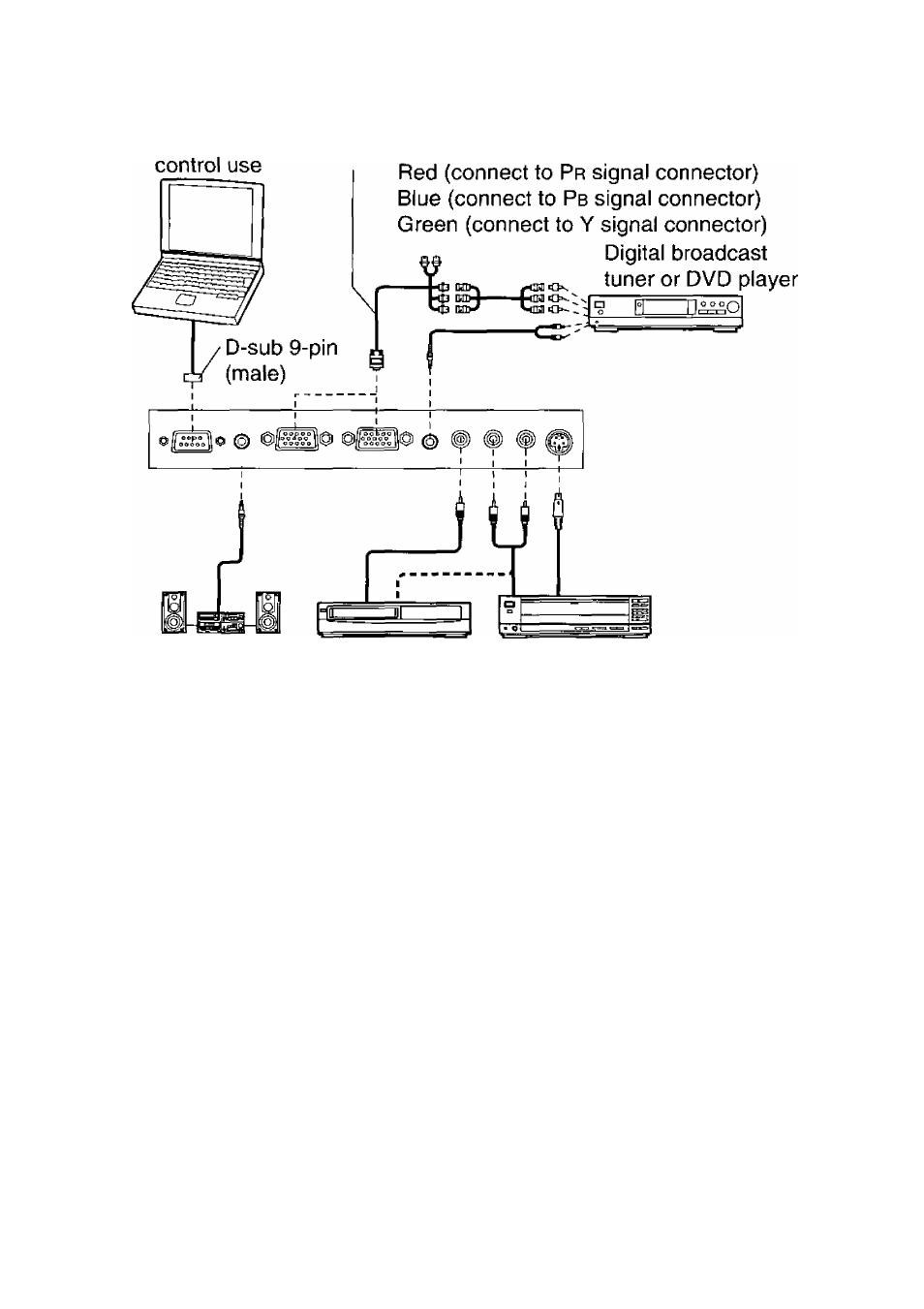

Example of connecting with video equipments
Computer for
D-sub 15 (male) - BNC5 (female)
adapter cable (sold separately)
Audio
system
Video deck Laser disc
player
NOTE:
• Only one audio system circuit is available for the AUDIO IN L-R jacks for
S-VIDEOA/IDEO signals, so if you wish to change the audio input source,
you will need to remove and insert the appropriate plugs.
• Only one audio system circuit is available for the RGB AUDIO IN jacks, so
if you wish to change the audio input source, you will need to remove and
insert the appropriate plugs.
• If an audio system is connected to the AUDIO OUT jack, the sound
volume balance can be controlled by the remote control unit which is
supplied with the projector.
• If the video signal source is connected using a cable with a BNC
connector plug, use a BNC/RCA adapter (sold separately) to convert the
cable end to an RCA plug-type jack.
• Refer to page 50 for a list of compatible YP b P r signals which can be input
to the projector.
• If the signal cables are disconnected or if the power supply for the
computer or video deck is turned off while the digital zoom or index
window functions are being used, these functions will be cancelled.
18
