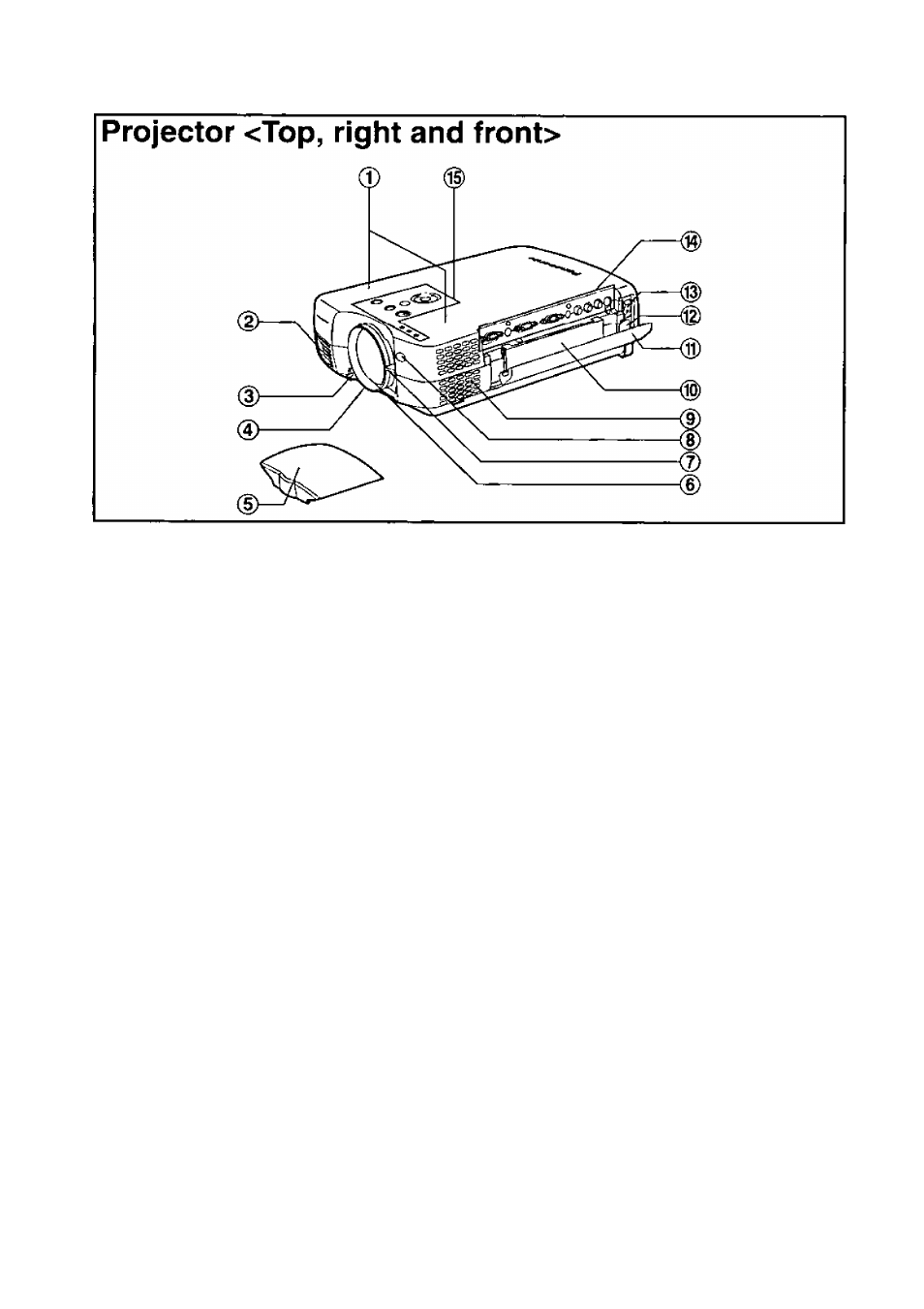

Location and function of each part
c
.9
cc
ca
Q.
0)
©Stereo speakers
d)Air inlet port
Do not cover this port.
(3)Leg adjuster button
(pages 12 and 23)
This button is used to unlock the
front adjustable leg. Press to
adjust the angle of tilt of the
projector.
©Focus ring
(pages 22 and 23)
® Lens cover
CD
Projection lens
©Zoom knob
(page 23)
(D Remote control signal receptor
(page 16)
©Air filter
(page 42)
@Card remote control unit holder
(page 15)
(^Carrying handle
When the handle is retracted, it
covers the connector panel.
©Power input socket (AC IN)
(page 22)
The accessory power cord is
connected here.
Do not use any power cord other
than the accessory power cord.
©MAIN POWER switch
(pages 22 and 23)
©Connector panel
(page 13)
Extend the carrying handle to use
the terminal board.
©Projector control panel
(page 14)
