9. Troubleshooting and Maintenance
Cleaning the feeder unit and thermal head
Cleaning the feeder rollers, the sub roller, the rubber flap, the white plate and the glass:
—when misfeeding occurs frequently, or
—when a dirty pattern or a black line appears on a transmitted or copied document.
Clean the thermal head:
—when a dirty pattern or a black line appears on a received or copied document.

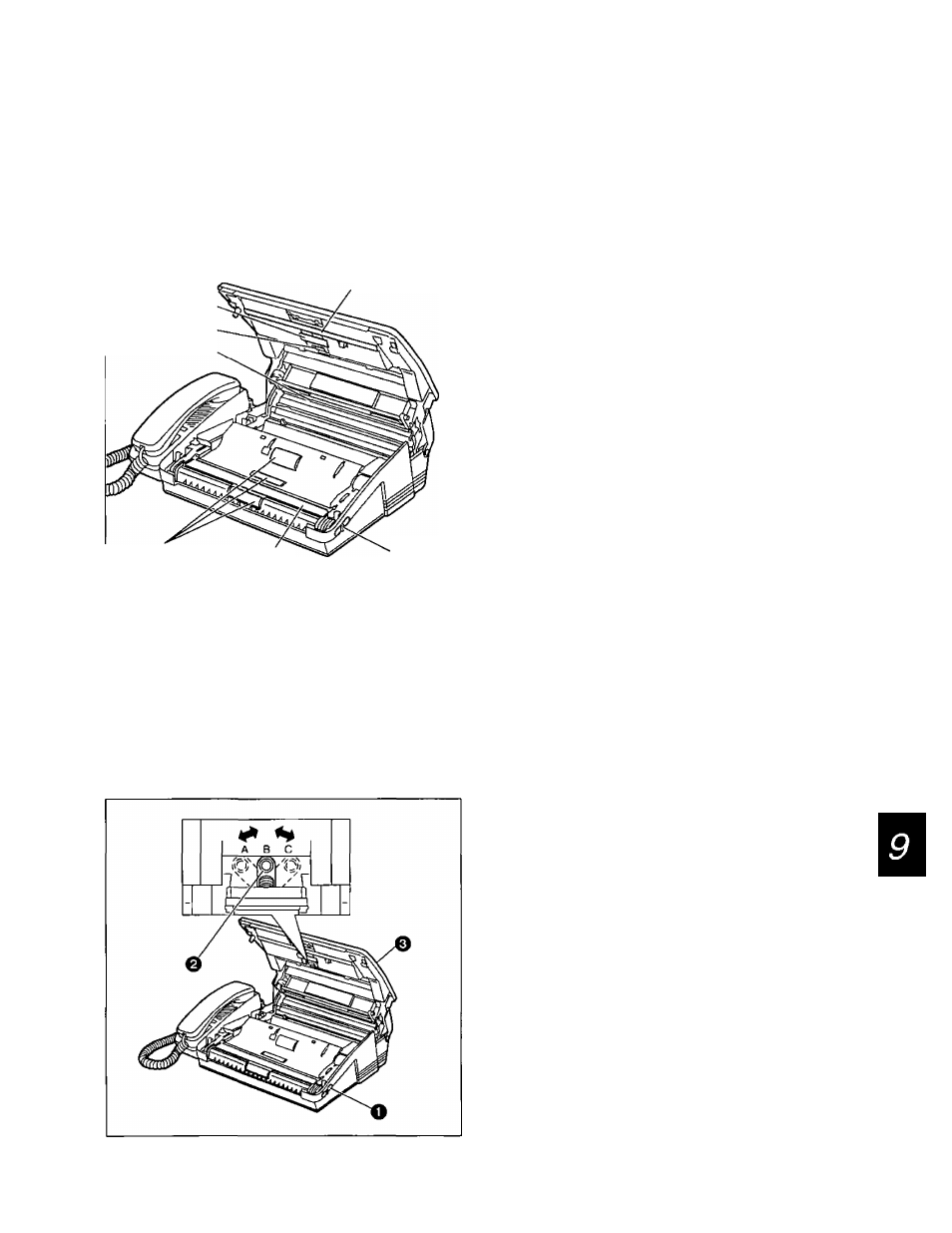

Sub roller
Rubber flap
Thermal head
White plate
O Disconnect the power cord and the telephone
line cord.
Q Slide the lever toward you to open the top
cover, and remove the recording paper roll.
o
■ For the feeder rollers, the sub roller, the
rubber flap and the thermal head:
—Clean with a cloth moistened with
Isopropyl rubbing alcohol, then dry
thoroughly.
■ For the glass and the white plate:
—Clean with a dry soft cloth.
Q Re-install the recording paper, then close the
cover carefully by gently pressing down on
both ends.
0 Connect the power cord and telephone line
cord.
Note:
• To prevent malfunction due to static electricity, do not use a dry cloth for the thermal head, and do
not touch it directly with your finger.
Feeder rollers
Glass
Lever
Adjusting the feeder pressure
If misfeeding of documents, such as a multiple feeding or no feeding, occurs frequently, adjust the feeder
pressure by following the steps below.
Q Slide the lever toward you to open the top
cover.
Q Shift the position of the lever by using an
instrument with a pointed end, like a clip or
ball-point pen.
Position A: In the case of no feeding
Position B: Standard position
Position C: In the case of multiple feeding
o Close the cover carefully by gently pressing
down on both ends.
