With a DSS Receiver

You can:

1) Record and view any channel including

scrambled channels; channel selection

must be made at the DSS Receiver.

2) Program one channel for unattended

recording.

NOTE: The DSS receiver must be turned

off to view programs from a cable

box or antenna. See the DSS
manual for details.

IN FROM
CABLE or

Antenna

IN FROM

Satellite Dish

OUT TO TV

VHF/UHF

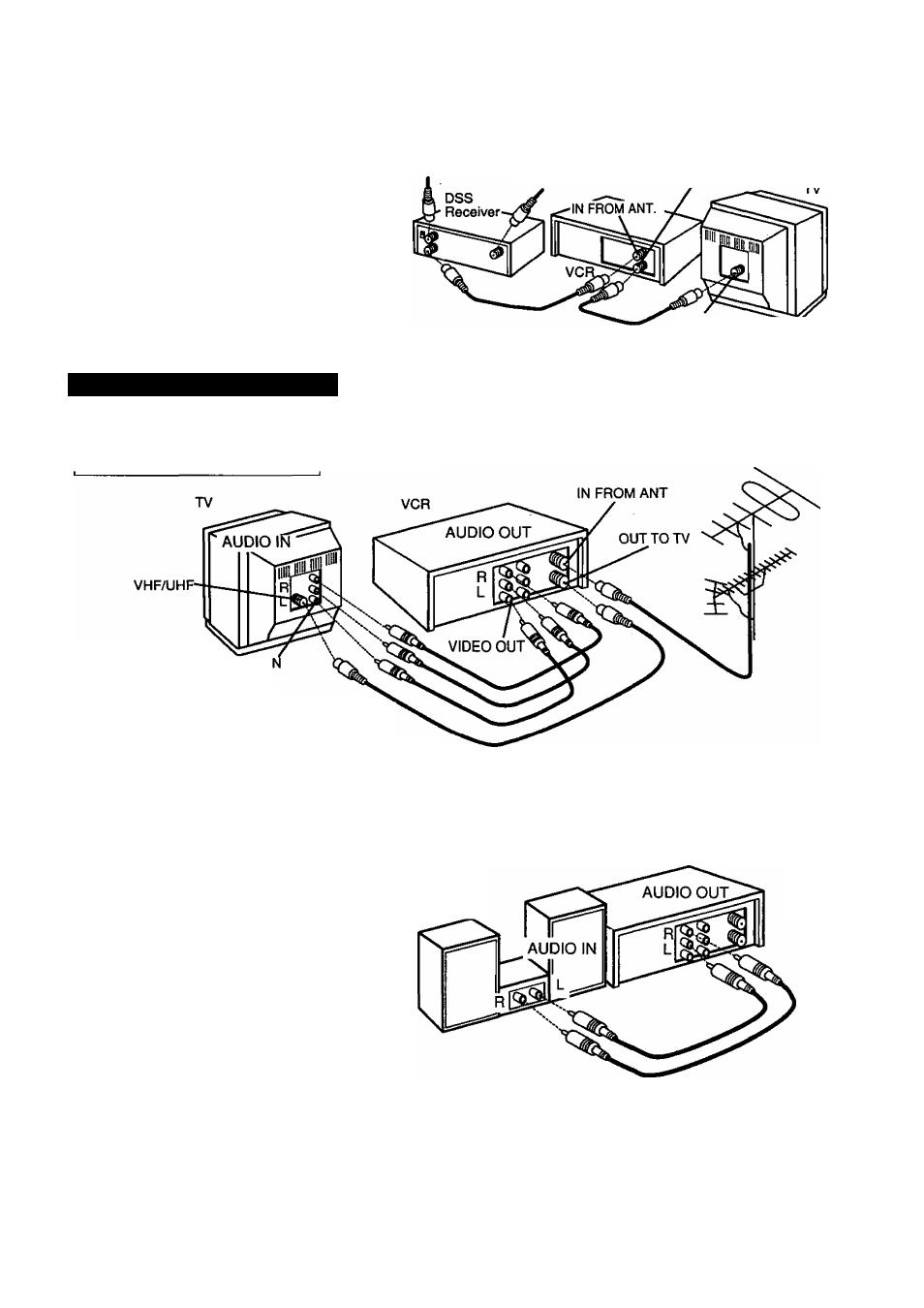

Audio/Video Connections

If your TV has AUDIO IN and VIDEO IN terminals, you can connect your VCR to them to receive a higher quality
picture and sound. The antenna-VCR and VCR-TV connection is as shown.

r AudioA/ideo Connections

VIDEO I

Connect the VIDEO OUT terminal on the

VCR to the VIDEO IN terminal of your TV.

Connect the “L" and “R” AUDIO OUT terminals on

the VCR to the “L" and “R" AUDIO IN terminals of your TV.

Set the VIDEO/TV selector of your TV (Monitor/Receiver) to “VIDEO."

NOTE: To use your TV as a VCR monitor, set the VIDEO/TV selector on the TV (Monitor/Receiver) to “VIDEO.

(- Stereo Amplifier Connections

When you connect your VCR to a
Stereo Component System, you can
view the picture from the VCR while
enjoying stereo from your audio
system.

Connect the “L" and “R” AUDIO OUT
terminals on the VCR to the “L” and “R"
AUDIO IN terminals of your stereo.

Stereo Amplifier

VCR

**DSS® is a registered trademark of DIRECTV, INC., a unit of GM Hughed Electronics.

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC in USA (and to the
Canadian Electrical code in Canada) that provides guidelines for proper grounding and, in particular, specifies that the cable

ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
