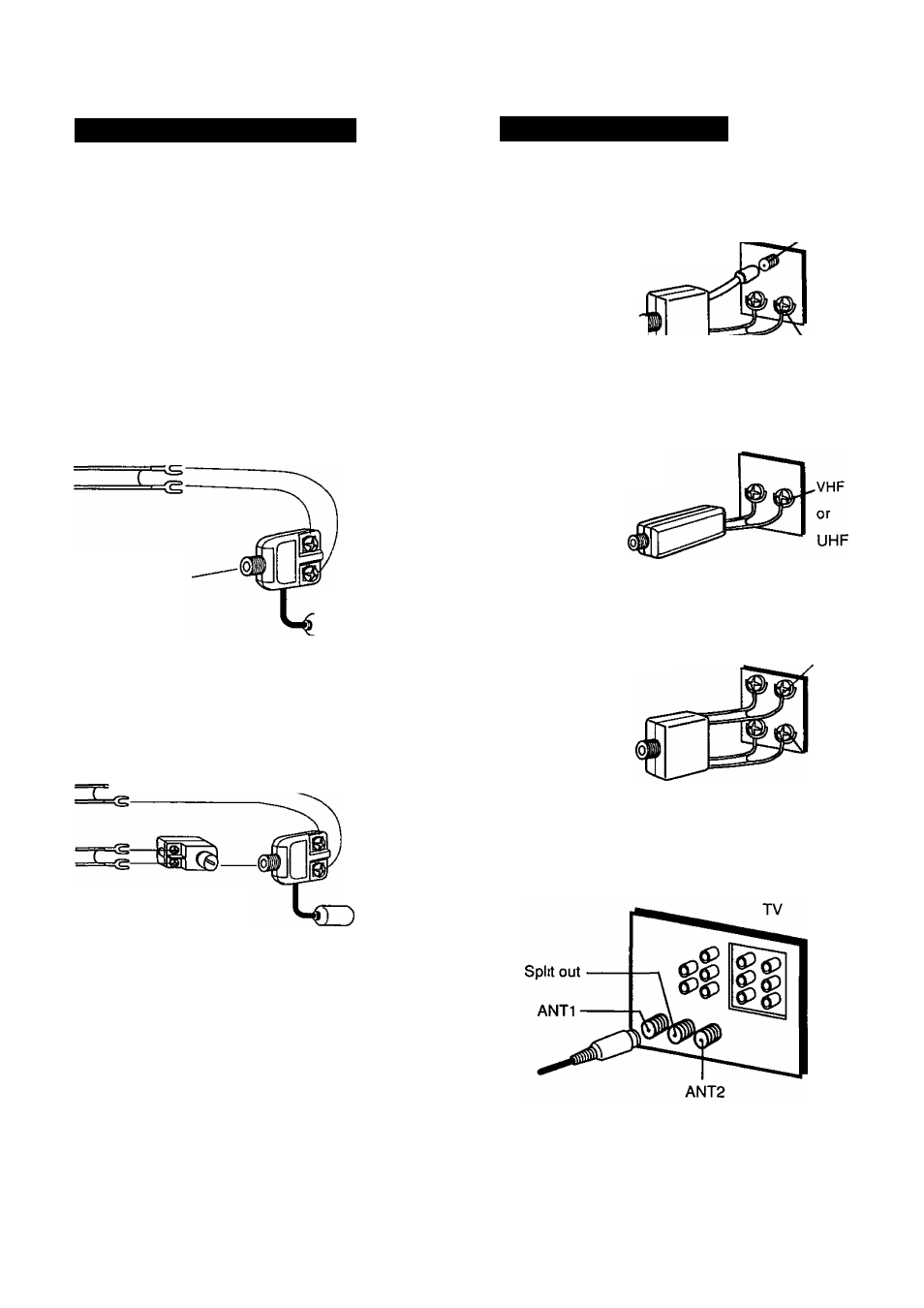

Between Antenna and VCR
Between VCR and TV
Case 1: Twin Lead Cable Only
To VCR Terminal
r
9
(Flat) Twin Lead 300
Ohm Cable
300-75 ohm Transformer
(not supplied)
Case 2: Twin Lead & Coaxial Cables
^cssC3
(Round) 75 Ohm
coaxial Cable
UHFA/HF
Band Mixer
(not supplied)
D
To VCR Terminal
Case 3: Two Twin Lead Cables
=ce-
300-75 ohm Transformer
(not supplied)
UHFA/HF
Band Mixer
(not supplied)
To VCR Terminal
If your TV has both post and screw-type VHF
terminals, using the post connection is
recommended to minimize signal loss
Case 1: Screw & Plug Type Terminal
UHFA/HF Band Separator
^ wup
(not supplied)
—
^ \UHF
RF Coaxial Cable
Case 2: Screw Type Terminal
75-300 ohm Transformer
(not supplied)
TV
Case 3: Double Screw Type Terminal
TV
UHF/VHF Band Separator
(not supplied)
VHF
^UHF
Case 4: Complex TV Terminal
TERMINALS ON BACK OF TV SET
Connect to one of the ANT terminals and select
the same antenna number on the TV
