Index of Controls

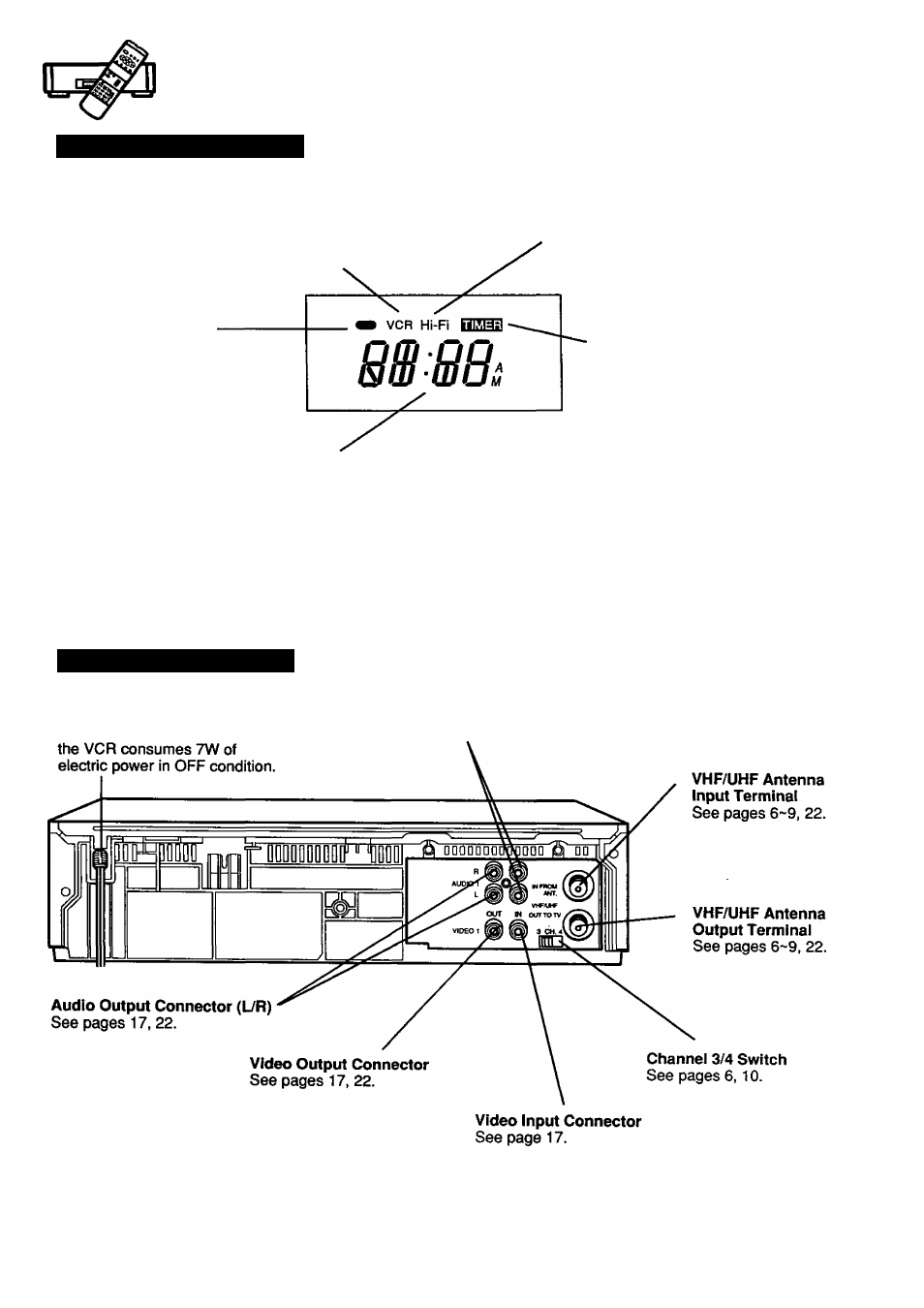

Multi Function Display

VCR Indicator

Appears when the VCR/TV
selector is set to VCR.

Power Indicator

This indicator lights

when power is turned on.

Hi-Fi Indicator

When Hi-Fi audio is monitored or

played back, this indicator appears.

Timer Indicator

This indicator lights when the VCR

is set for a Timer Recording, or if a
length is set for normal recording.

It flashes when a Timer Recording
has been set, but a tape has not

been inserted into the VCR.

Clock/Statua/Channel Display

Displays the current time.
Briefly displays VCR status when function button is pressed.
Also, briefly displays the channel number selected, "LI” or “L2”
when channel button is pressed or select a line input.

Rear View of the VCR

AC Power Plug

When plugged into an AC outlet,

Audio Input Connector (L/R)
