D
escription
of
controls
PV-4760

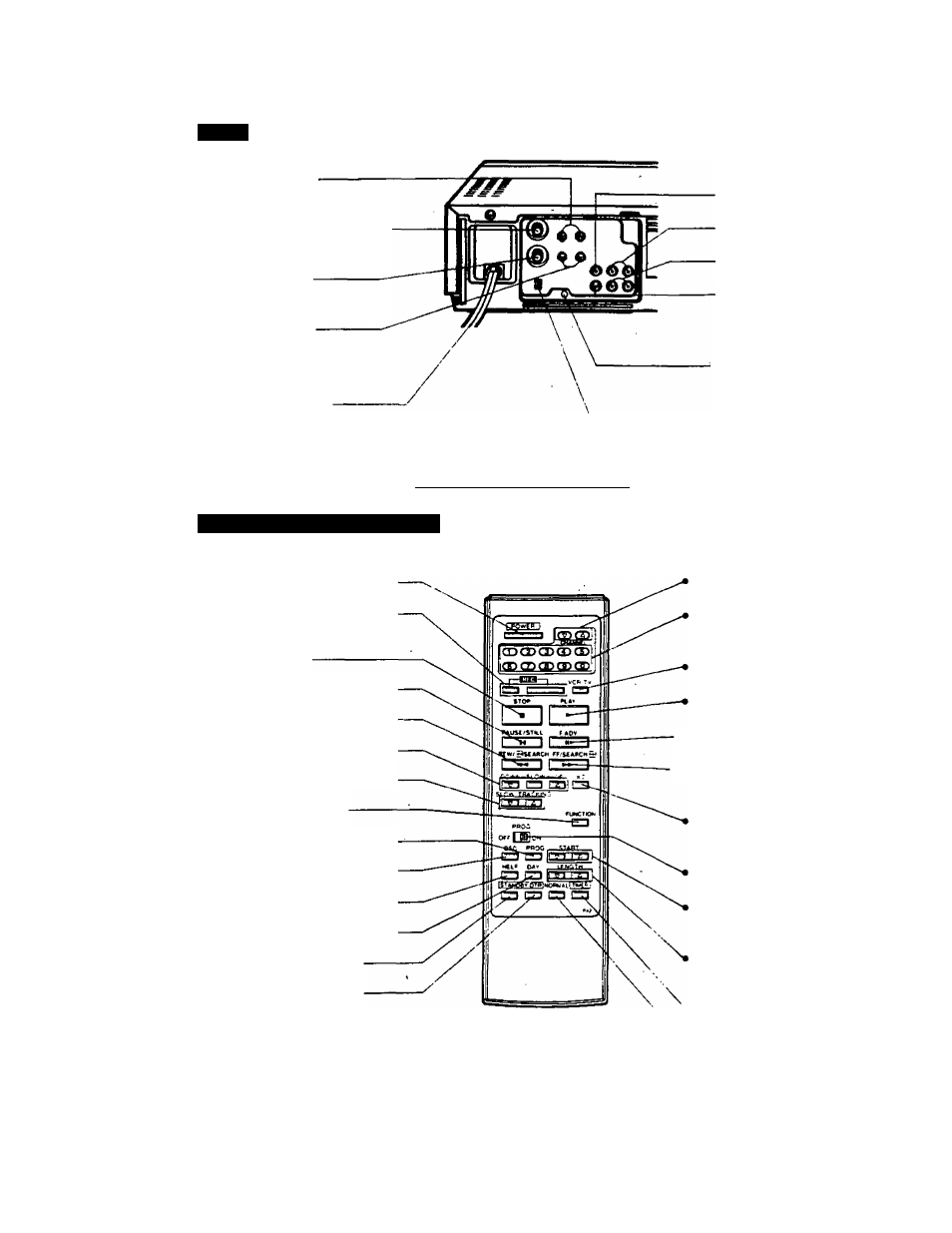

REAR
; ANTENNA CONNECTION
; «UNF ANTENNA
INPUT TERMINALS
(IN FROM ANTENNA)
• VHF ANTENNA
INPUT TERMINAL
(IN FROM ANTENNA)
• VHF ANTENNA
OUTPUT TERMINAL
(OUT TO TV SET)
• UHF ANTENNA
OUTPUT TERMINALS
(OUT TO TV SET)
• AC POWER CORD
CONNECTIONS WITH
OTHER COMPONENTS
• VIDEO OUTPUT
CONNECTOR
• AUDIO OUTPUT
CONNECTOR (UR)
• AUDIO INPUT
CONNECTOR (UR)
• VIDEO INPUT
CONNECTOR
« VERTICAL LOCK
ADJUSTMENT CONTROL
CHANNEL 3/4 SWITCH
See separate Basic Guide For VCR Connections for more hook-up details.
WIRELESS REMOTE CONTROL
Various VCR function controls are conveniently available with your Wireless Remote Control.
• POWER BUTTON
• RECORD BUTTONS
(TWO BUTTON ENTRY)
• STOP BUTTON
• PAUS&STILL BUTTON
• REW/SEARCH ® BUTTON
• SLOW-MOTION BUTTONS
• SLOW TRACKING CONTROL
• FUNCTION BUTTON
• PROGRAM BUTTON *-
• OSD BUTTON*
• HELP BUTTON *-
• DAY BUTTON*
• STAND BY BUTTON *-
• ONE TOUCH RECORD
(O.T.R.) BUTTON*
* 'Tiese buttons
w
H: operate
w!,eii PROGRAM ON/OFF
SWITCH is ON.
See page 42 for Battery Replacement caution.
CHANNEL UP/DOWN KEYS
NUMERICAL KEYS (0,1, 2, 3,
4, 5, 6. 7,
e,
and 9)
VCR/TV SELECTOR BUTTON
PLAY BUTTON
-• FRAME ADVANCE BUTTON
-• FAST FORWARD/SEARCH
® BUTTON
DOUBLE SPEED (X2) PLAY
BUTTON
PROGRAM ON/OFF SWITCH
START BUTTONS
(UP/DOWN)*
LENGTH BUTTONS
(UP/DOWN)*
• TIMER BUTTON*
* NOR^iAL BUTTON*
- 6 -
