Connections, Operation, First – Panasonic PV-4760 User Manual
Page 31: Then dubbing, Tape, Recording, Duplication
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

R
e
-
recording
(TAPE
duplication
)
PV-4760
It is becoming more popular for friends to exchange and/or copy some of their favorite camera recordings. Such
dubbing from one recorder to another is simple and can be done as described below. You are cautioned that
the unauthorized exchanging and/or copying of copyrighted recordings may be copyright infringement.

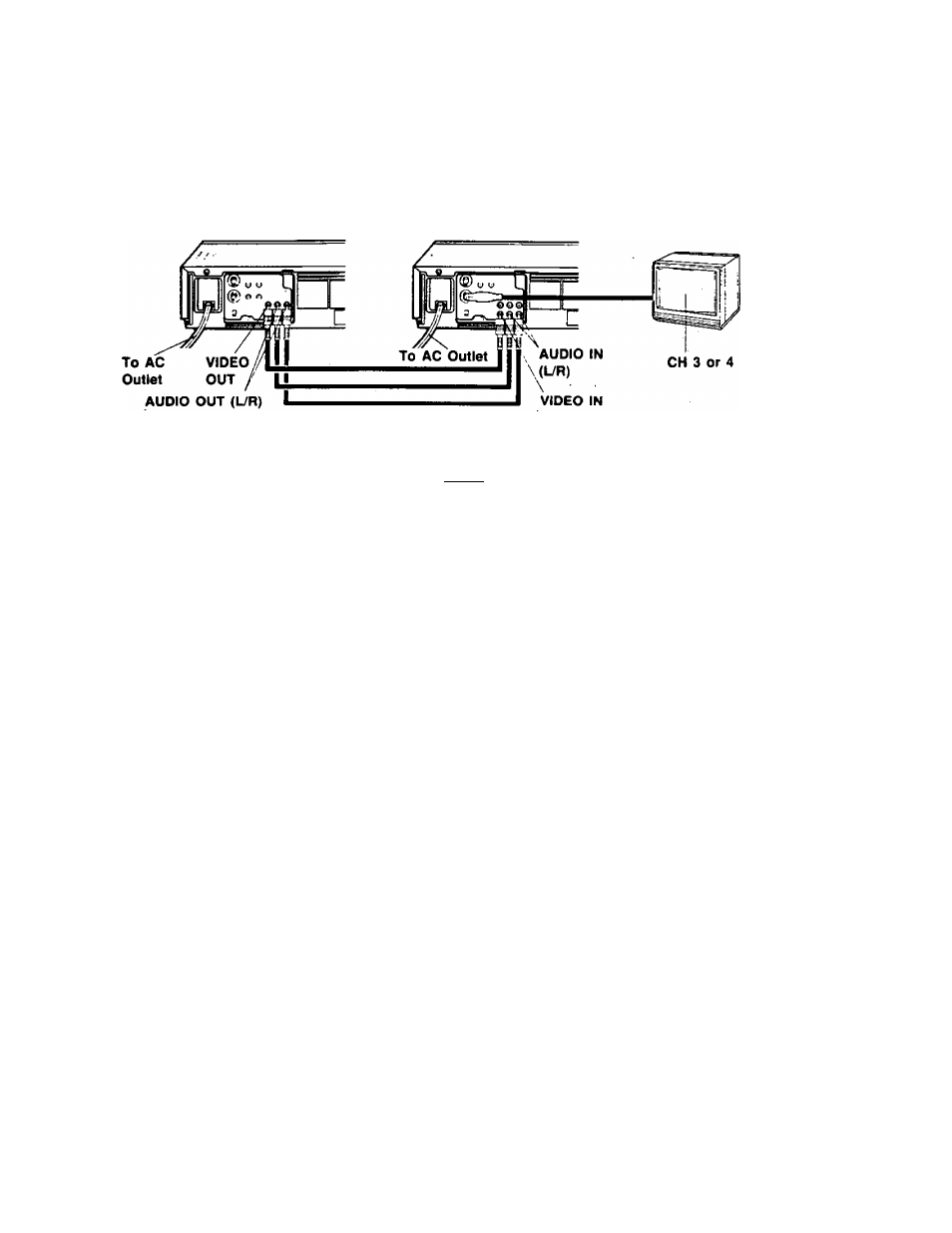

CONNECTIONS
• SET UP AND CONNECT THE TWO VCRS as illustrated.
Playing (Source) VCR
TV Set
Recording (Dubbing) VCR (Used for monitoring)
OPERATION
FIRST
Turn the TV and both VCRs ON.
Set TV CHANNEL Selector to the predetermined VCR Channel (3 or 4).
On Recording VCR set INPUT SIGNAL SELECTOR to LINE.
On Recording VCR set VCR/TV Selector to VCR.
SOURCE
On Playing VCR with original tape.
THEN
DUBBING
O
Insert Master tape.
O Press PLAY, then review on monitor TV.
O Press PAUSE at the start of scene you want to
record on Dubbing VCR; Source VCR is now in
Play/Pause mode.
On Recording VCR with blank or
programmed dubbing tape.
O
Select tape speed SP, LP or SLP.
0
Insert tape on which you want to do re-recording
(Dubbing).
O Press PLAY Button, review tape on monitor TV.
O Press PAUSE, at start of section you desire to
dub; Dubbing VCR is now in play/pause mode.
© Press TAPE COUNTER RESET Button to “0000".
O Press RECORD and PLAY Buttons together;
Dubbing VCR is now in Record/Pause mode.
Ct' Release Source VCR Play/Pause mode with Dubbing VCR
Record/Pause at the same time to begin Dubbing.
Press STOP Buttori on each VCR to stop Dubbing after
completion.
- 3 0 -
