1. Set VCR/TV selector to VCR.
2. Set TV channel selector to the output channel ot Convertor Box.
3. Set Converter Box channel selector to VCR output channel (channel 3 or 4).
[5]
[ALTERNATE CABLE 83 CONNECTION
WITH TWO CONVERTER/OESCRAMBLER BOXES

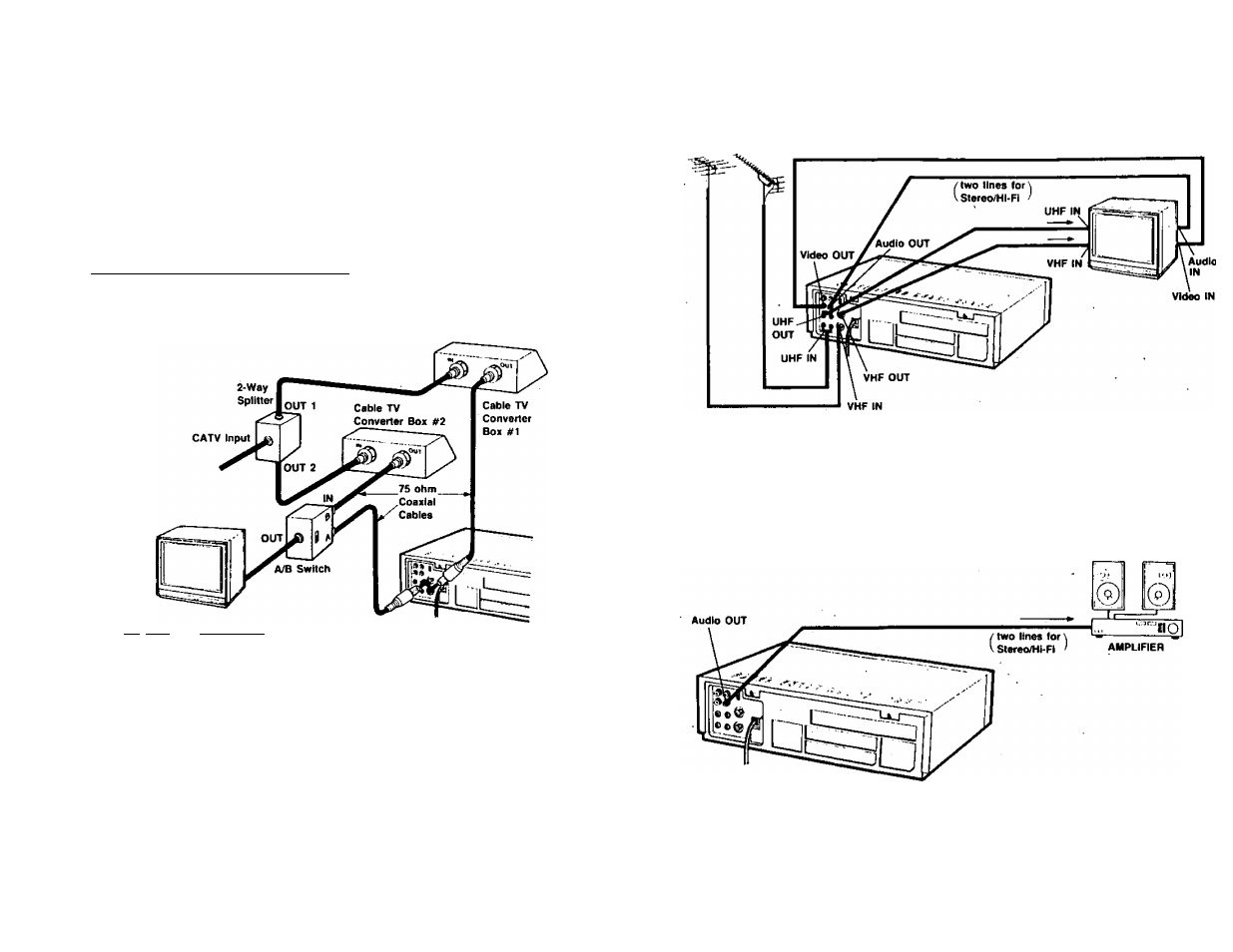

It you want to record and view combinations ot scrambled/unscrambled channels, you will need additional
equipment. A typical connection using two converter boxes, an A/B Switch, and a 2-Way Splitter is shown here.
Settings for Recording and TV Viewing
1. Set VCR channel selector to the output channel ot Converter #1.
2. Select channel to be recorded on Converter #1.
To view the channel being recorded:
• Set VCR/TV selector to VCR.
• Set A/B Switch to position A.
• Set TV channel selector to VCR output channel (channel 3 or 4).
NOTE'.These settings are also used to view playback ot a tape.
To view a different channel:
• Set A/B Switch to position B.
• Set TV channel selector to output channel of Converter #2,
• Select channel to be viewed on converter #2.
[6] TV AUDIO/VIOEO CONNECTIONS
If your TV has AUDIO IN and VIDEO IN terminals, you can connect the AUDIO OUT and VIDEO OUT connectors
ot your VCR to these terminals on your TV to receive a higher quality picture and sound.
VHP Antenna UHF Antenna
NOTE:
• For viewing the program Irom the VCR, set the VIDEO/TV selector on the TV (Monitor/Receiver)
to the "VIDEO" mode.
It you connect the VCR to a component stereo audio system, you can view the VCR picture on TV with sound.
from the audio system.
OUTPUTS
