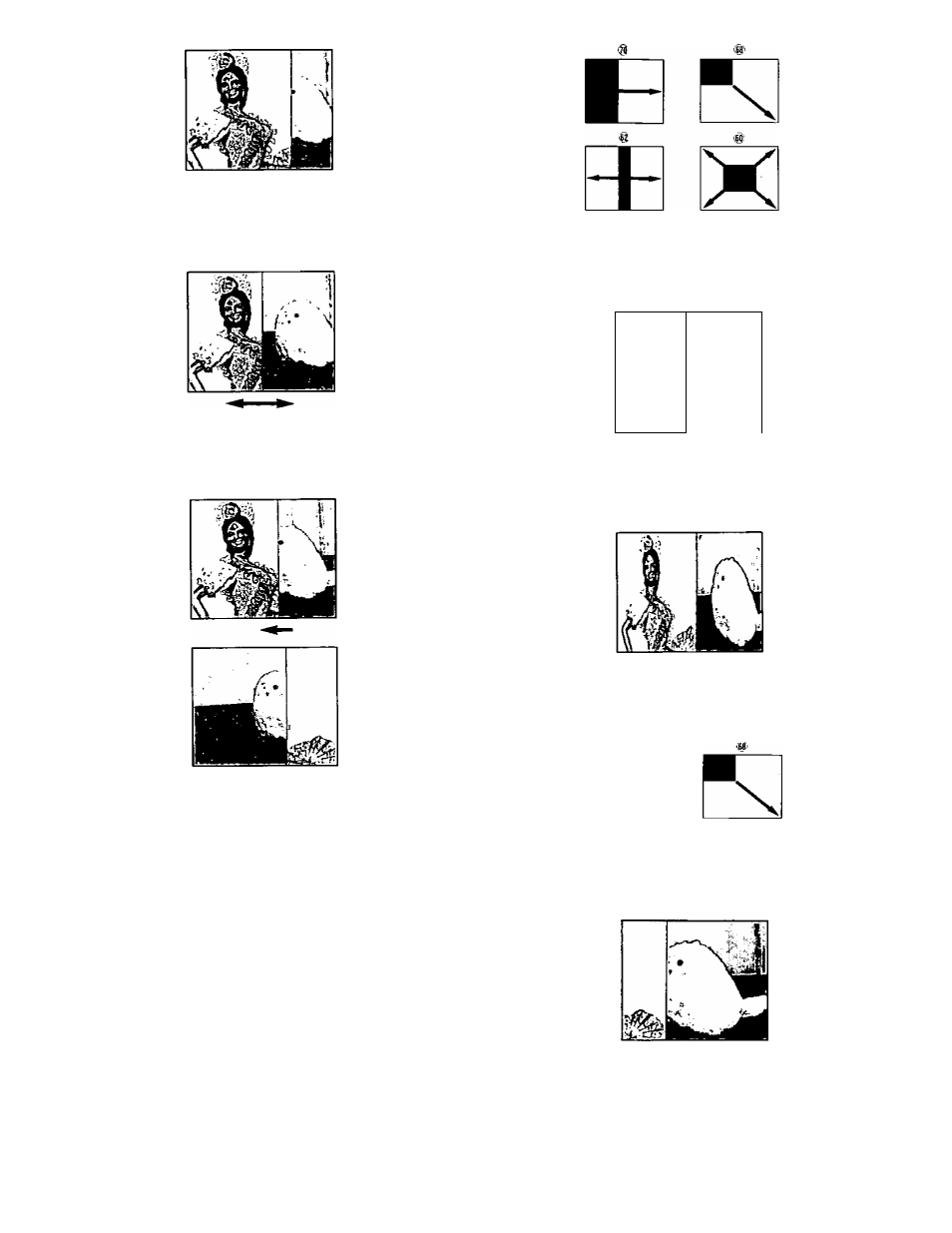

Press the REVERSE Button {28). The movement of the
wiped scene will be executed in the reverse direction.
Press both the ONE-WAY Button (27) and REVERSE
Button (28). The combination of these two functions
will allow for symetrical screen wiping.
Press'the COMPRESSION Button (71) once. The
compressed video scene (fully displayed but at avaiable
size) is wiped in/out on the monitor screen.
i
4a,
Press the COMPRESSION Button (71) twice. The
compressed video scenes for both A-bus and B-bus
images are wiped in-out on the monitor screen.
(2) Slide
The following wipe pattern can be used with this mode.
70
E
4. Pattern Modifier
Modify Buttons should be used in combination with
some of the Wipe Pattern Select Buttons. If the
prohibited combination is made, the LED on the Modify
Button goes off or the Straight Wipe Button (70) is
automatically selected.
Note ;
For the details of the combinations, refer to the
Wipe Pattern Table on page 28.
(1) Compression
The following wipe pattern from the Wipe Pattern
Selection Buttons can be used with this mode.
Press the SLIDE Button (69) once. Either A-bus or
B-bus image will slide over the other bus image,
- 2 4 -
