SYSTEM CONNECTION

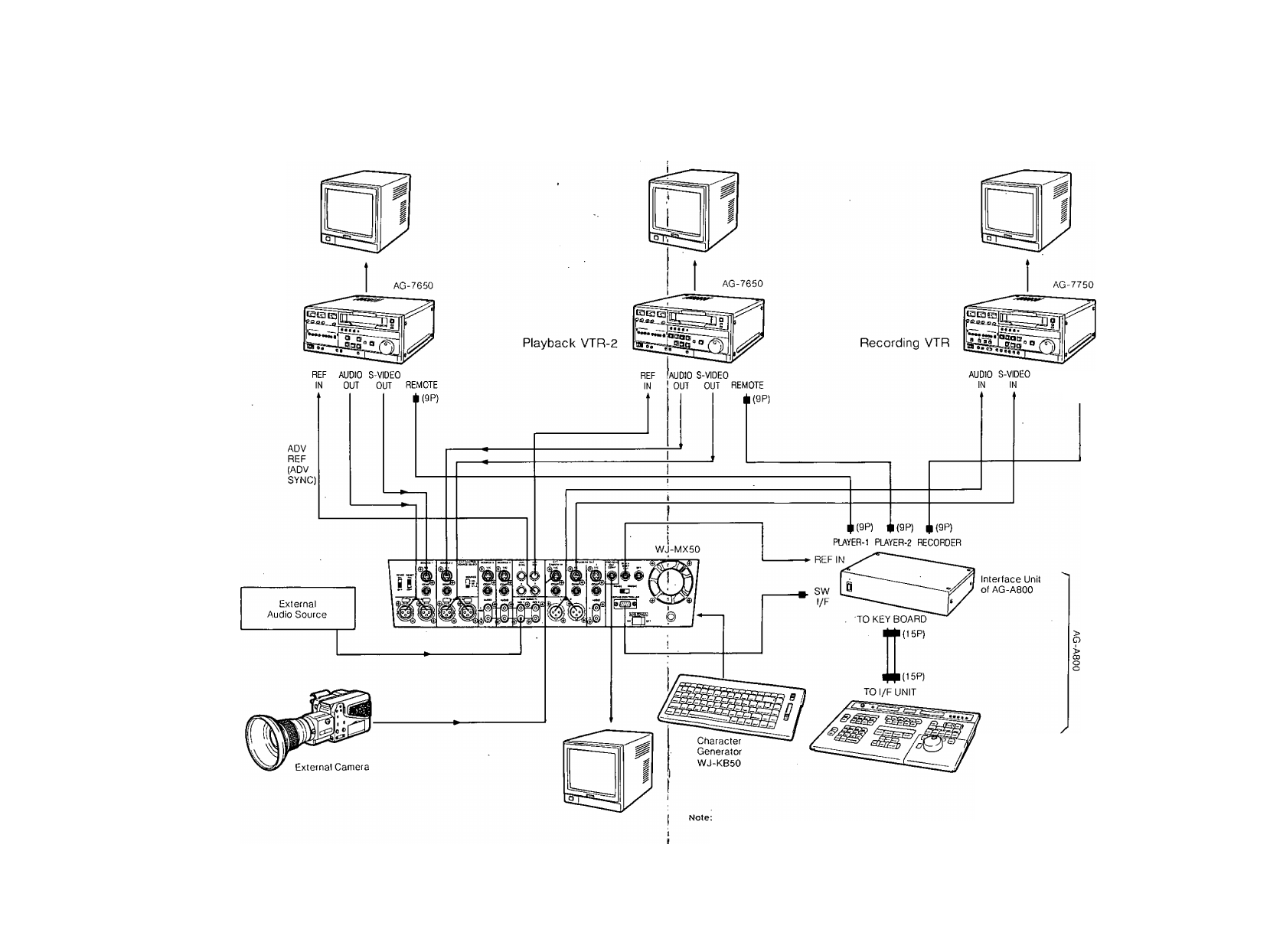

This system diagram shows the example of Panasonic A/B

ROLL EDITING SYSTEM with 2 Playback VTR's, 1 Recording

VTRand 1 Editing Controller AG-A800.

For the details of operations, setting up of controls and

connections for the VTR's, refer to the corresponding
operating manuals.

Playback VTR-1

REMOTE

*{9P)

Editing Controller

AG-A800

- 14 -

The ADV REF, ADV SYNC or BLACK BURST signal should be used.
The enough editing accuracy may not be obtained without this signal. This signal is necessary for the Compression function and Trail
function when it is recorded on the VTR,

- 15 -
