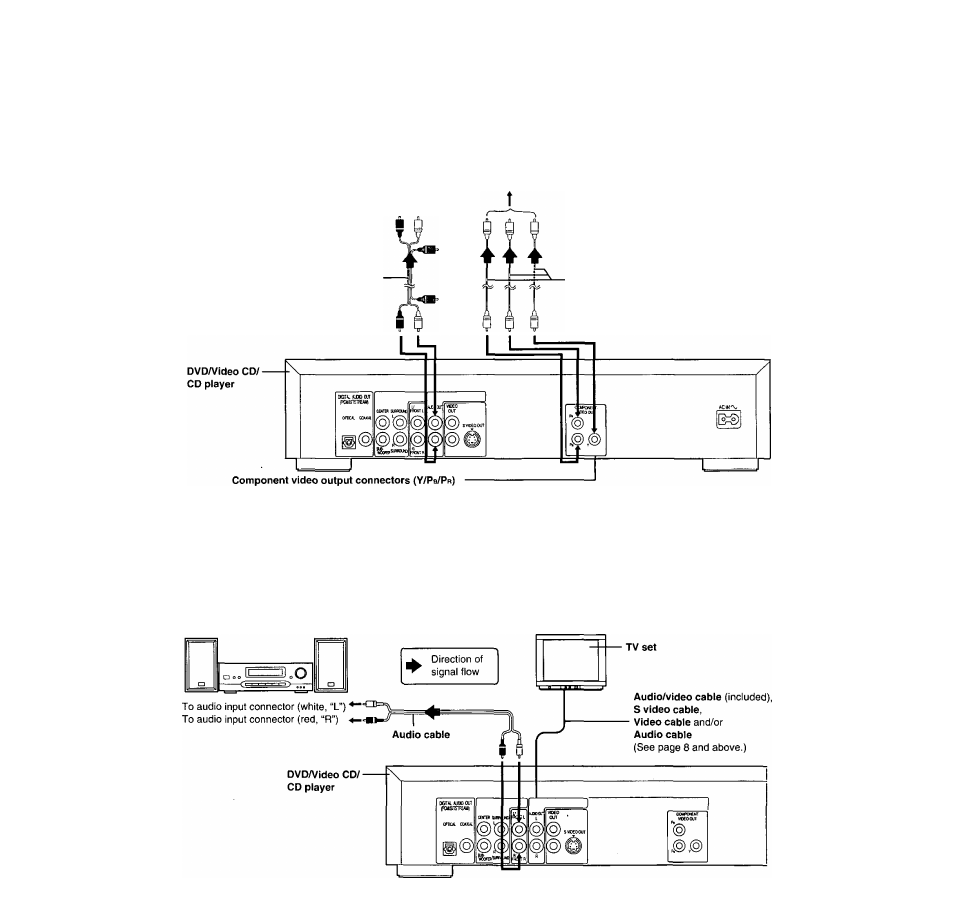

Connecting to a TV set or monitor with component video input connectors ]
[Z
TV set or monitor
To audio input connector (white, “L")
To audio input connector (red, “R") ♦
t I
To component video input connectors (Y/P b /P r )
Direction of
signal flow
Audio/video cable
(included) Video cable
The component video output connector outputs the color difference signals (P b /P r ) and luminance signal (Y)
separately in order to achieve high fidelity in reproducing colors.
•The description of the component video input connectors depends on the TV set or monitor
(e.g. Y/P b /P h , Y/B-Y/R-Y, Y/C b /C r and so on). Refer to the instruction manual of your TV set for details.
Optional audio connections
Connecting to audio equipment
Audio equipment
