Quick Tour IV - GIS/CAD Export 74 Getting Started with SKI-Pro-2.5en

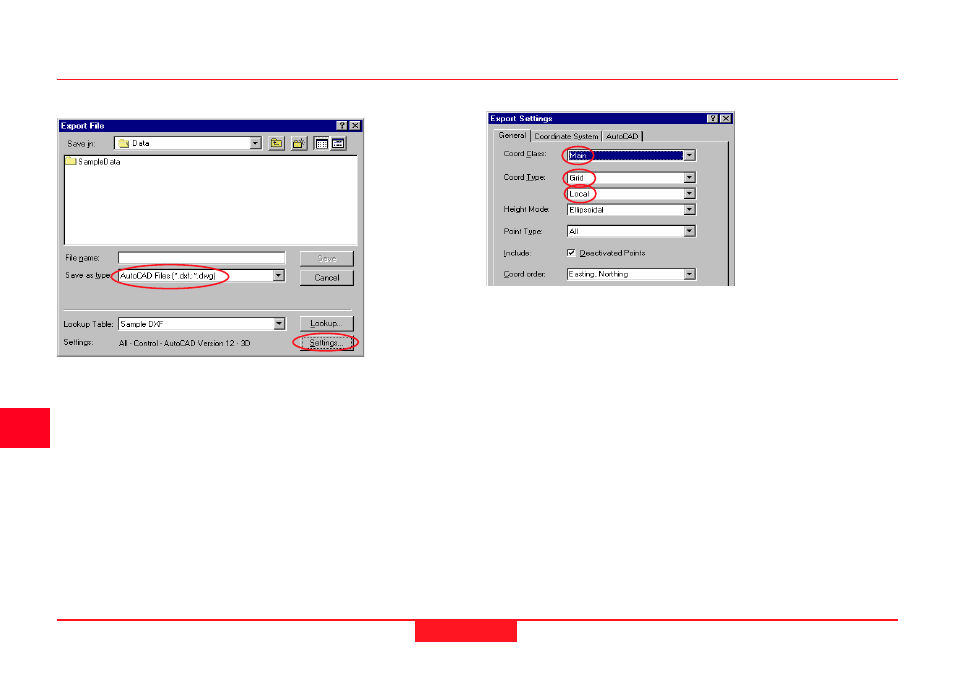

The following dialog appears again:
Click the Settings button.
The following Property sheet appears:
Change Coord. Class to Main. The coordinate triplets of
the highest class will be exported.
Make sure the Coord Type is set to Grid and Local.
To continue, click on the Coordinate System tab.
Make sure the Coordinate System Sample RT is
selected.
To continue, click on the AutoCAD tab. Ensure that the
Format is set to DXF as this is the ASCII format which is
supported by most GIS/CAD packages.
The remaining settings do not matter for this exercise.
Click on OK to close the Settings property page.
Quick Tour IV - GIS/ CAD Export, continued
