Quick Tour IV - GIS/CAD Export 72 Getting Started with SKI-Pro-2.5en

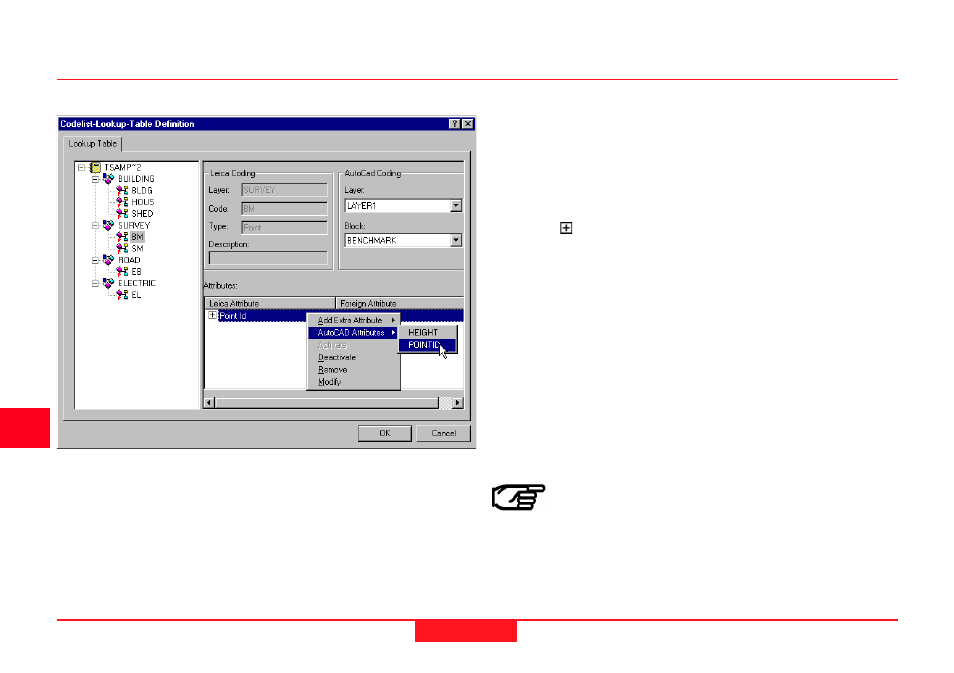

The following property sheet appears:
On the left hand side is a tree view of the codelist used in
the field. On the right hand side you can open boxes for
the AutoCAD Layers and Blocks as defined in the DXF-
header file. You have to match the thematical codes used
in the field with the AutoCad Coding (Layers and Blocks).
Additionally it is possible to match the attributes of each
“Leica” Code with the attributes as defined for the
AutoCAD blocks.
To match the first “Leica” Code with the AutoCAD Coding
proceed as follows:
In the Tree-View on the left expand all Layers by click-
ing on the icons.
In the Tree-View click on BM and select LAYER1 and
BENCHMARK from the combo boxes.
In the Attributes window right-click, select Add Extra
Attribute and then Point Id.
Right-click again, select AutoCAD Attribute and then
POINTID.
In the same manner match the Extra Attribute Eleva-
tion with the AutoCAD Attribute HEIGHT.
The Code BM is now matched!
In the Sample Project the codes do not contain
Attributes. Therefore it is only possible to
match the default Attributes Point Id and
Elevation.
Quick Tour IV - GIS/ CAD Export, continued
