Figure 5-33
Without the protocol

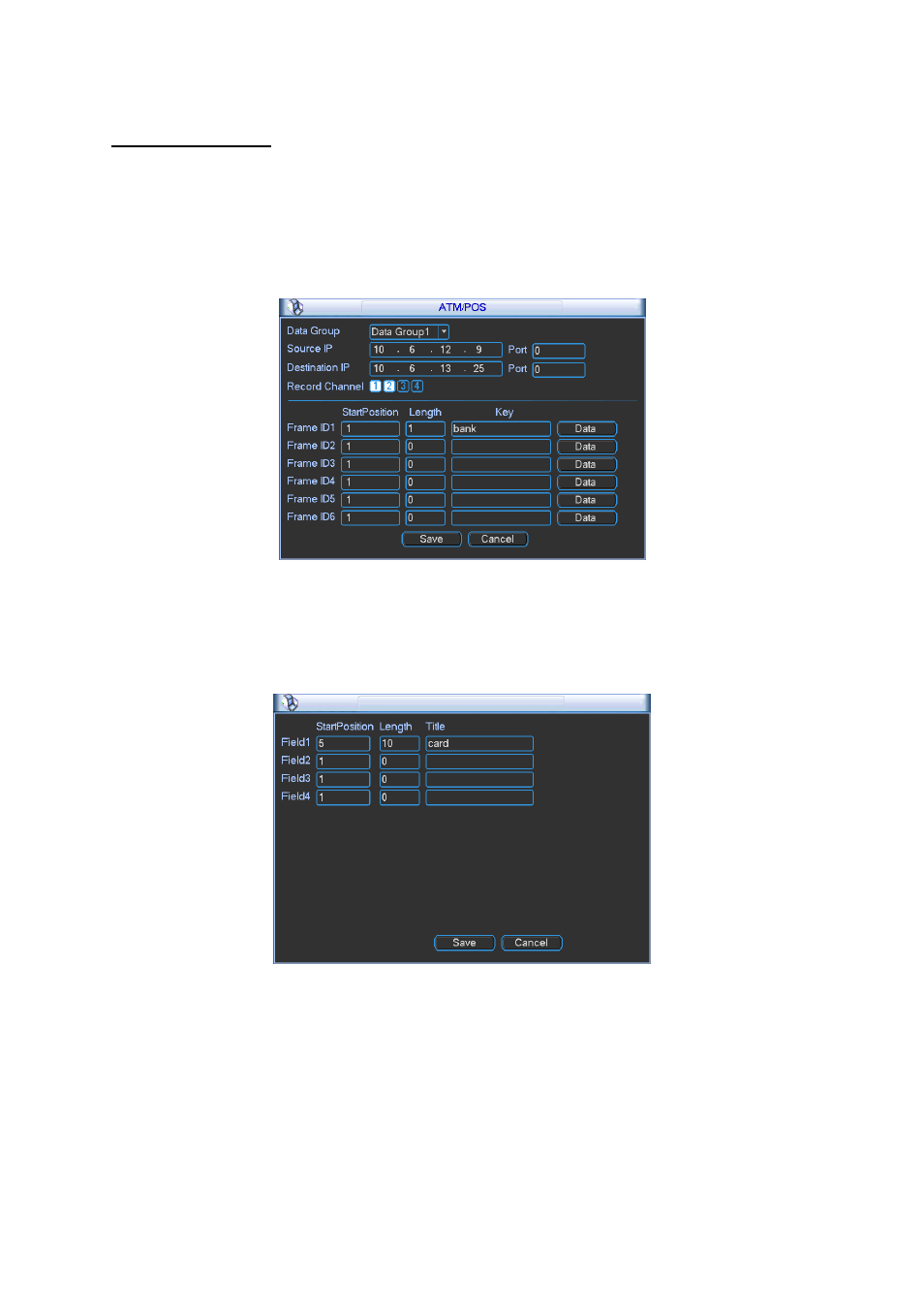

For the ATM/POS without the protocol, the interface is shown as in Figure 5-34.
Source IP refers to host IP address that sends out information (usually it is the device host.)
Destination IP refers to other systems that receive information.
Usually you do not need to set source port and target port.
There are total four groups IP. The record channel applies to one group (optional) only.
Six frame ID groups verification can guarantee information validity and legal.
Figure 5-34
Click Data button you can see an interface is shown as in Figure 5-35.
Here you can set offset value, length, title according to your communication protocol and data
package. .
Figure 5-35
5.5.9 Config File Backup
The configuration file backup interface is shown as below. See Figure 5-36.
This function allows you to copy current system configuration to other devices.
