50

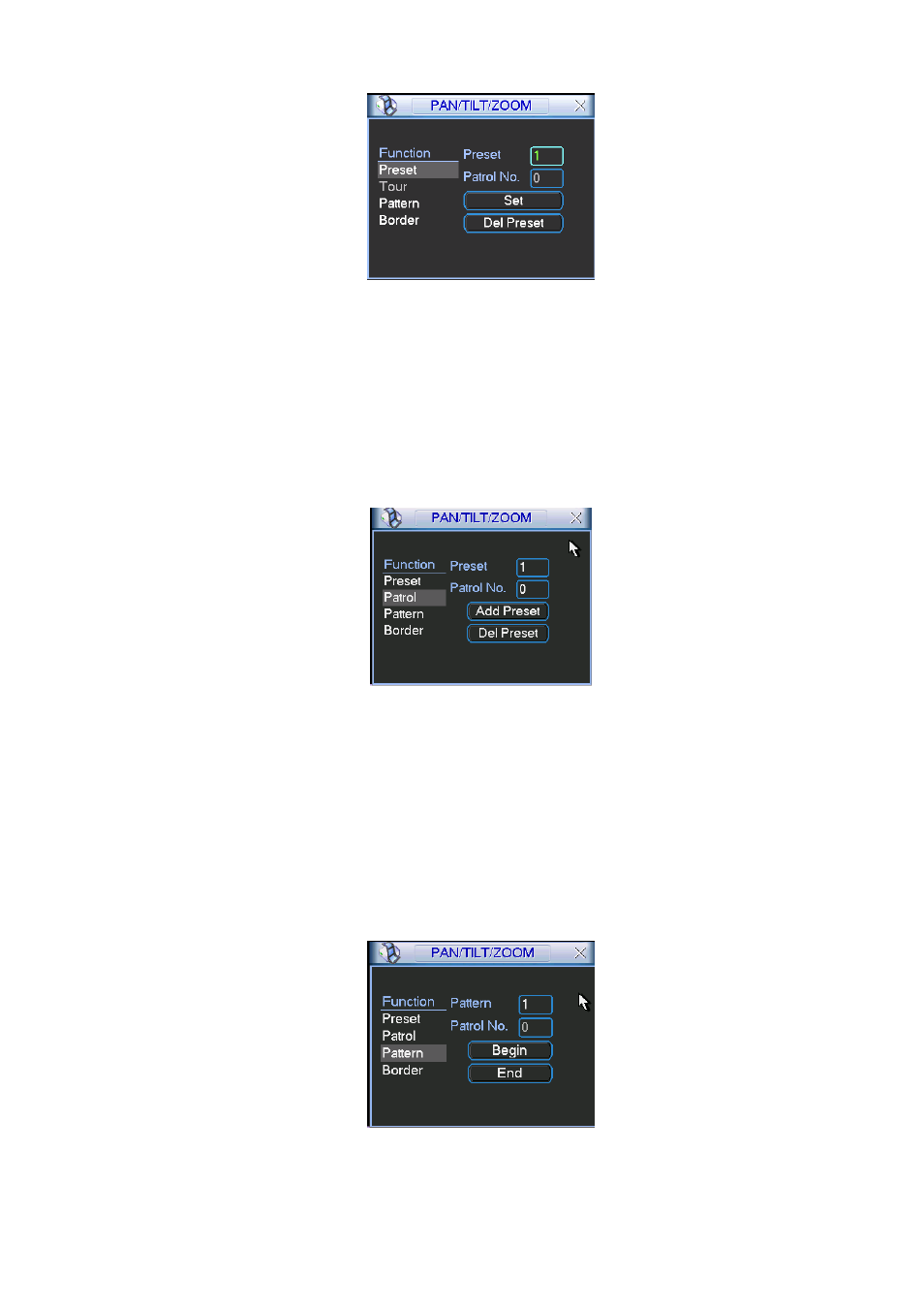

Figure 4-38
4.9.2 Activate Preset
In Figure 4-37, please input preset number in the No. blank, and click preset button.
4.9.3 Patrol setup (Tour Setup)
In
X339H339H339H
Figure 4-36, please click patrol button. The interface is shown as in Figure 4-39.Input preset
number and add this preset to a patrol (tour). For each patrol (tour), you can input max 80
presets.
Figure 4-39
4.9.4 Activate Patrol (tour)
In Figure 4-39, input patrol (tour) number in the No. blank and click patrol button
4.9.5 Pattern Setup
In Figure 4-38 click pattern button and then click ―begin‖ button. The interface is shown as in
Figure 4-40. Then you can go to Figure 4-33 to modify zoom, focus, and iris.
Go back to Figure 4-40 and click ―end‖ button. You can memorize all these operations as pattern
1.
Figure 4-40
4.9.6 Activate Pattern Function
