DVR systems DVR31xxH Series - Manual (Page 49)

49

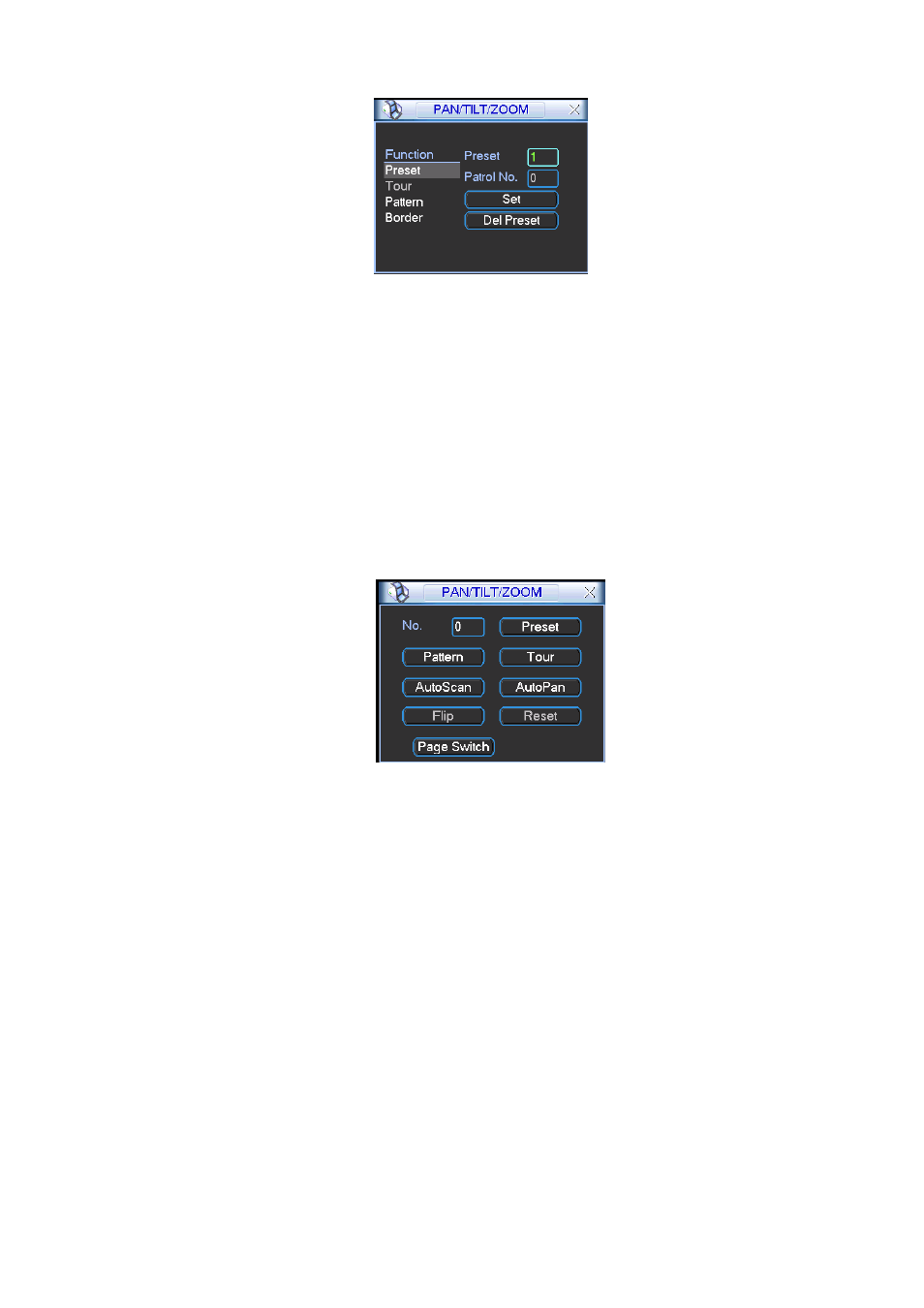

Figure 4-36
In
X328H328H328H
Figure 4-33, click page switch button, the interface is shown as in Figure 4-37.
Here you can activate the following functions:
 Preset
 Tour
 Pattern
 Auto scan
 Auto pan
 Flip
 Reset
 Page switch
Figure 4-37
Note:
 Preset, tour and pattern all need the value to be the control parameter. You can define it as
you require.
 You need to refer to your speed dome user ’s manual for Aux definition. In some cases, it
can be used for special process.
 The following setups are usually operated in the
X328H328H328H
Figure 4-33, Figure 4-36 and Figure 4-37.
4.9.1Preset Setup
In Figure 4-33, please use eight direction arrows to adjust camera to the proper position.
In Figure 4-36
X
, click preset button and input preset number. The interface is shown as in Figure
4-38
Now you can add this preset to one tour.
