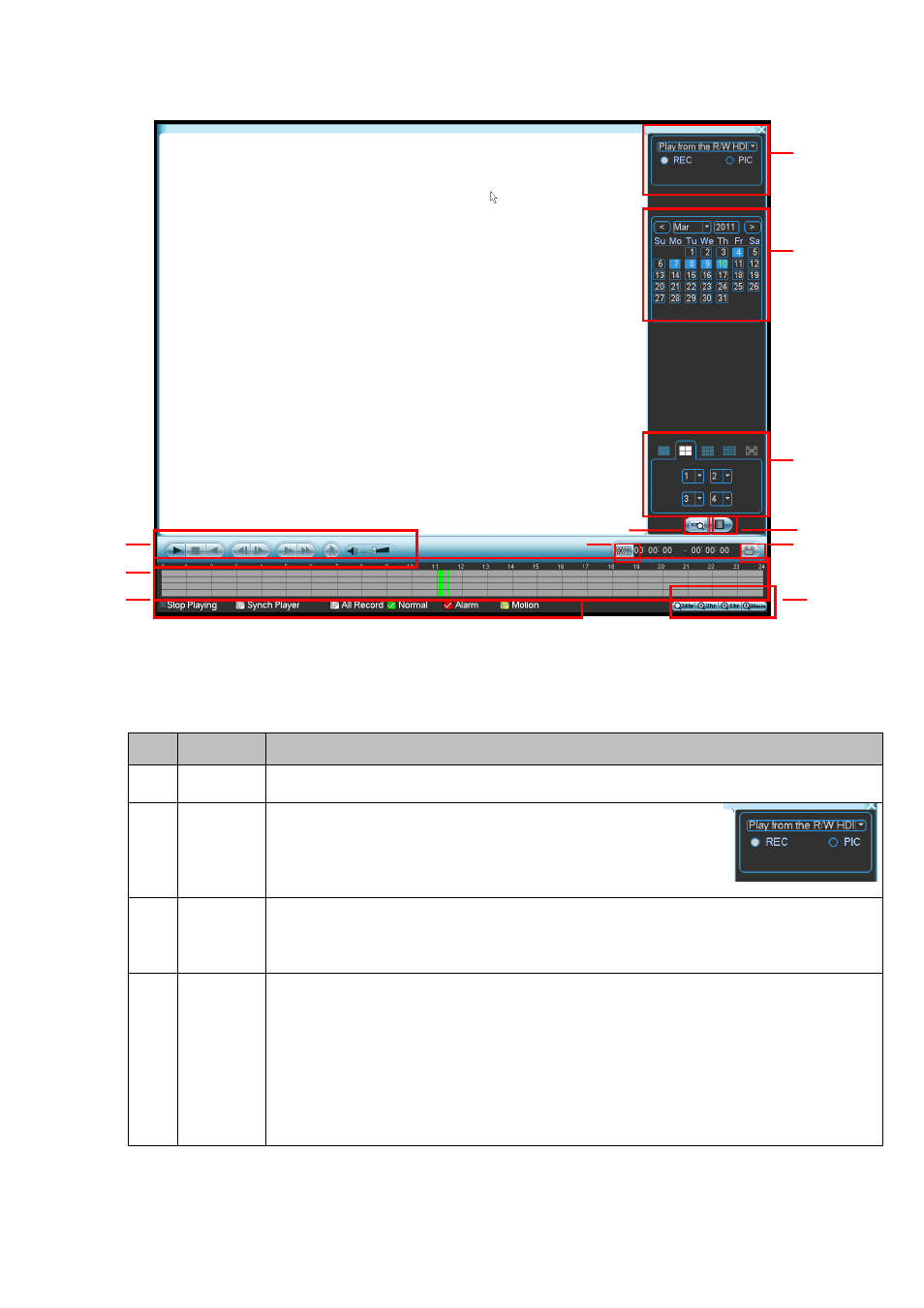

Figure 4-11
Please refer to the following sheet for more information.
SN Name Function
1
Display
window Here is to display the searched picture or file.
Support 1/4/9/16-window playback.
2
Search
type
Here you can select to search the picture or the recorded
file.
When there is displayed picture on the left pane, you can
set the corresponding setup
3 Calendar
The blue highlighted date means there is picture or file. Otherwise, there is no
picture or file.
In any play mode, click the date you want to see, you can see the corresponding
record file trace in the time bar.
4
Playback
mode
and
channel
selection
pane.
Playback mode：1/4/9/16. (It may vary due to different series.)
 In 1-window playback mode: you can select 1-16 channels.
 In 4-window playback mode: you can select 4 channels according to your
requirement.
 In 9-window playback mode, you can switch between 1-9 and 10-16 channels.
 In 16-window playback mode, you can switch between1-16 and 17-32
channels.
The time bar will change once you modify the playback mode or the channel
option.
