In Figure 4-37, input mode value in the No. blank, and click pattern button.
4.9.7 Auto Scan Setup
In Figure 4-36, click border button. The interface is shown as in Figure 4-41. Please go to Figure
4-33, use direction arrows to select camera left limit
Then please go to Figure 4-41 and click left limit button
Repeat the above procedures to set right limit.

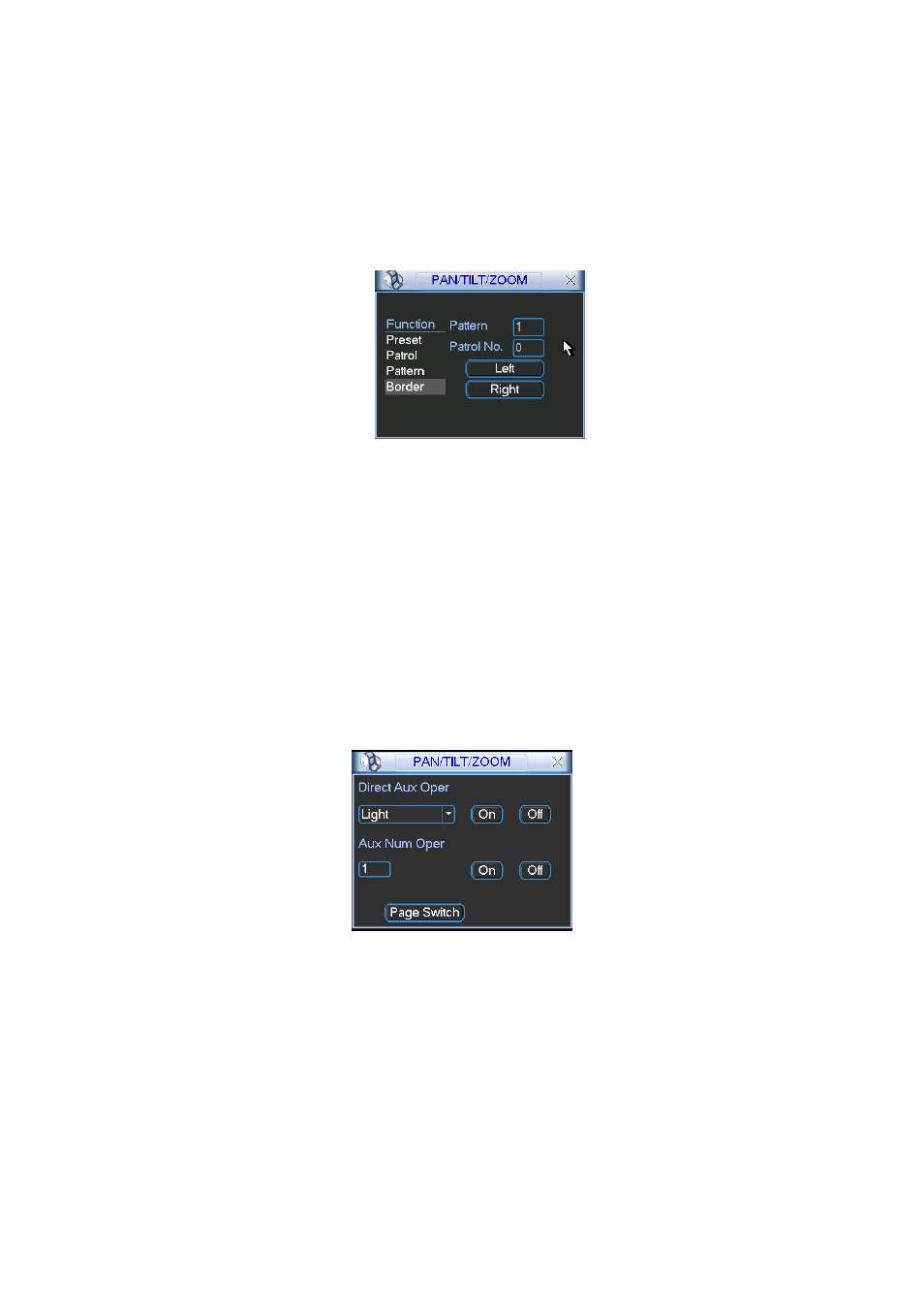

Figure 4-41
4.9.8 Activate Auto Scan
In Figure 4-37, click ―Auto Scan‖ button, the system begins auto scan. Correspondingly, the auto
scan button becomes Stop button. Click stop button to terminate scan operation.
4.10 Flip
In Figure 4-37, click page switch button, you can see an interface is shown as below. See Figure
4-42. Here you can set auxiliary function. The aux value has relation ship with the Aux button of
the decoder.
Click page switch button again, system goes back to Figure 4-33.
Figure 4-42
