38

4.4.2.2 Activation Snapshot

Please follow the steps listed below to enable the activation snapshot function. After you

enabled this function, system can snapshot when the corresponding alarm occurred.
 In Encode interface, click snapshot button to input snapshot mode, size, quality and

frequency.

 In General interface please input upload interval.
 In Detect interface please enable snapshot function for specified channels. Or in alarm

interface please enable snapshot function for specified channels.

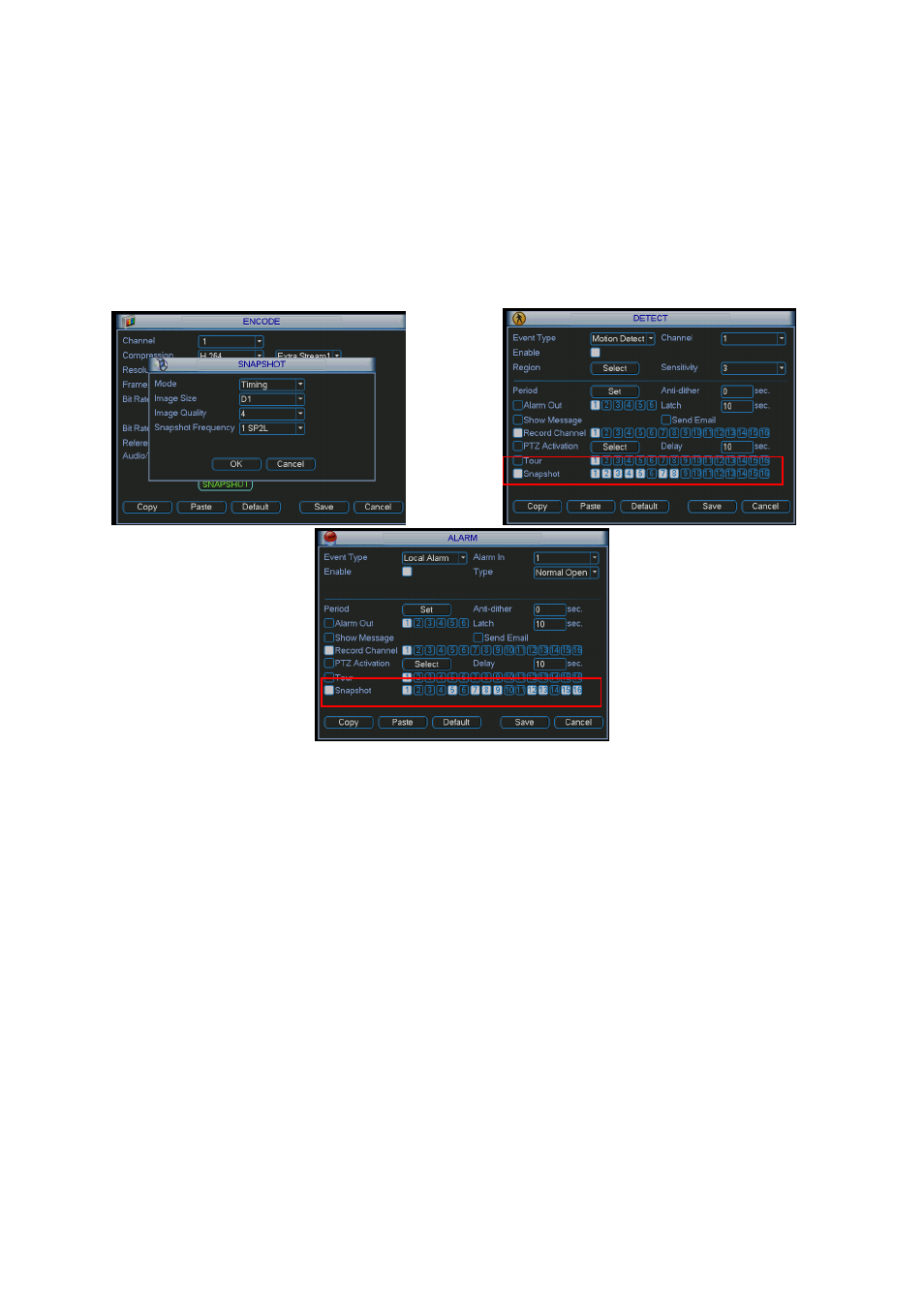

Please refer to the following figure for detailed information. See Figure 4-15.

Figure 4-15

4.4.2.3 Priority

Please note the activation snapshot has the higher priority than schedule snapshot. If you

have enabled these two types at the same time, system can activate the activation snapshot

when alarm occurs, and otherwise system just operates the schedule snapshot.

4.4.3 Image FTP

In Network interface, you can set FTP server information. Please enable FTP function and

then click save button. See Figure 4-16.

Please boot up corresponding FTP server.

Please enable schedule snapshot (Chapter 4.4.2.1) or activation snapshot (Chapter 4.4.2.2)

first, now system can upload the image file to the FTP server.
