3240S F I B E R O P T I C M U L T I P L E X E R
3240S Fiber Optic Multiplexer
4.9.2.1 Reset Counters
When this option is selected, the counters are immediately reset and the same screen will be displayed again reflecting the
counters after reset (zero count). The counters at the remote 3240S will not be reset if unit is off-line. Select '1' or Reset
Counters, then 'Enter' from the Multiplexer Configuration/Status menu to reset the LOS counters. No Subsequent screens will
appear.
4.9.2.2 Change Line Code
Selection 2 is used to change the I/O port's line coding. Select '2' or Change Line Code, then 'Enter' from the Multiplexer
Configuration/Status menu. Reference Figure 4-26, where Unit 1, Slot 1, Port 3, was changed to AMI line coding.
Ensure that the line coding jumpers are off when controlling the line coding function via NMS.

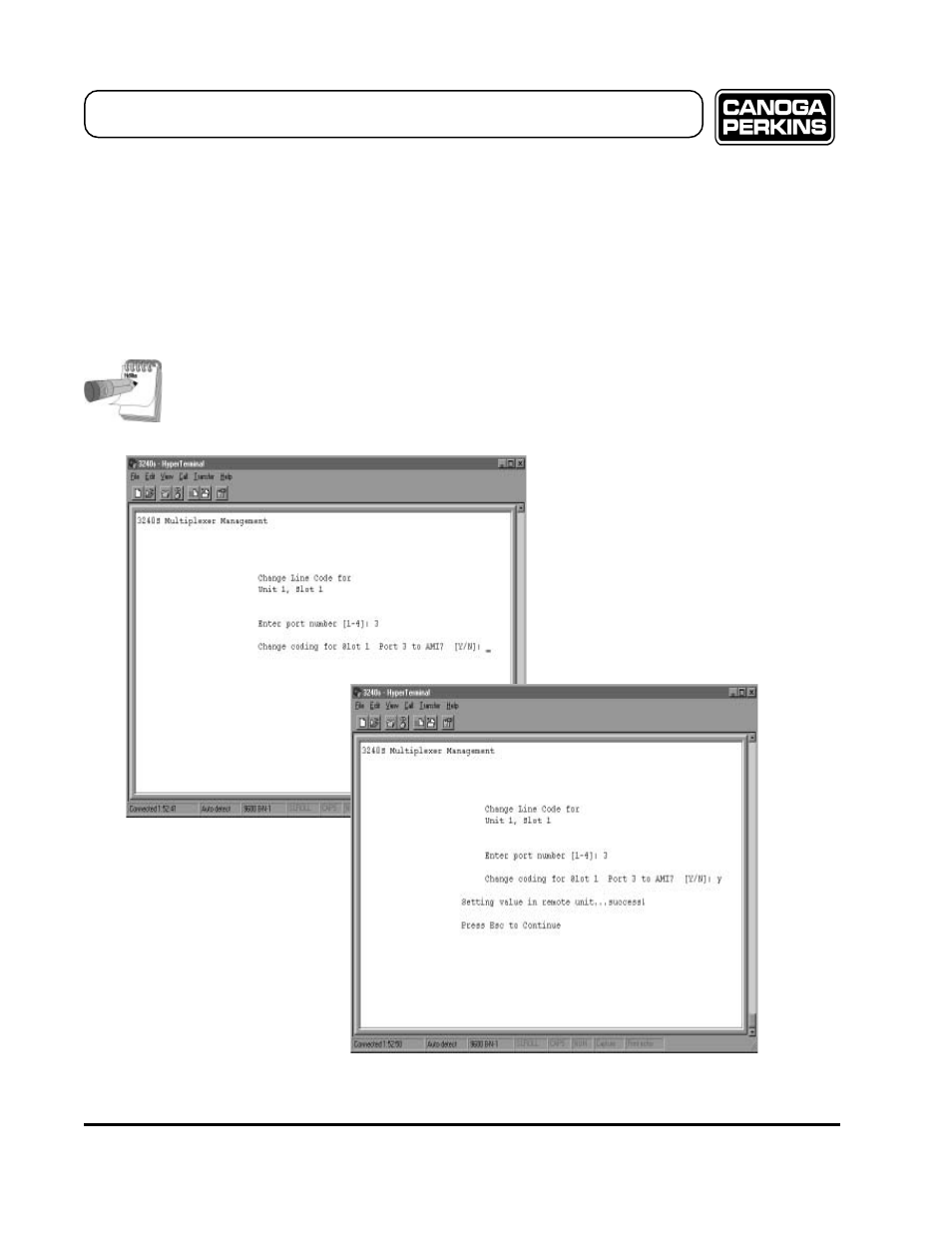

Figure 4-26
Change Line Coding Screens
4-28
