WEATHER GUARD Model 252-3-02 EZ-GLIDE® System, Full-Size, GM - Manual (Page 7)

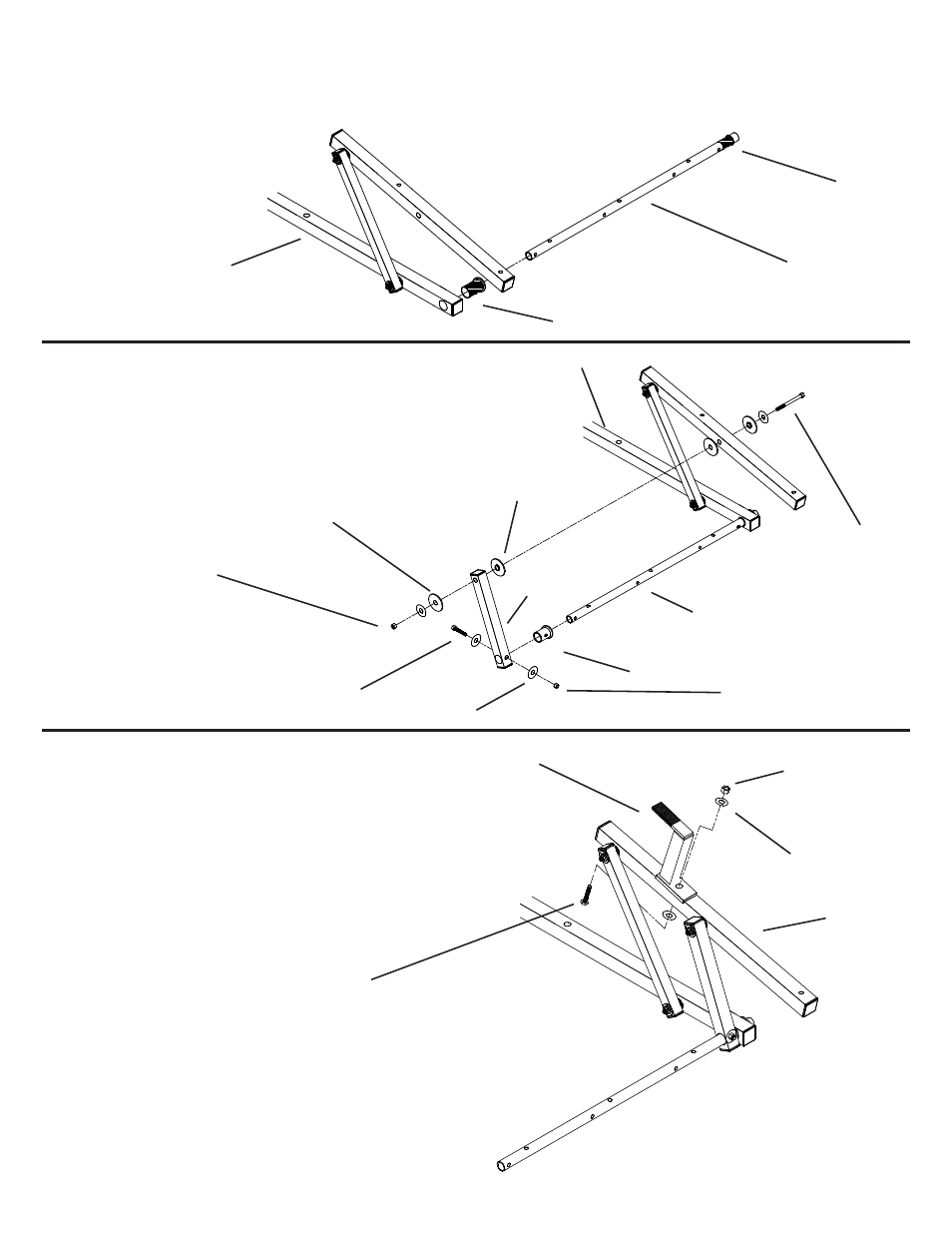

STEP 6
Use the supplied lubricant ( Vaseline™) and coat the pre-assembled Black Plastic Bushing (A). Insert Front Drive Tube
(B) into the larger Black Plastic Bushing (C) in the Front Crossmember Assembly (D) so that the black bushings are fully
seated.
(A)
(B)
(C)
(D)
STEPS 7 & 8
Slide a White Plastic Bushing (A) onto the Front Drive Tube (B) until it is
butted up to the Cross-Member (C). Align holes in the tube and bushing.
Slide the Pivot Arm (D) over the tube and bushing, align holes, and install
the 3/8-16 x 2-1/4" Fastener. Next install the 5/16-18 x 4-1/4" Fastener
with four Flat Plastic (E) bushings as shown.
(A)
(B)
(D)
* 3/8-16 x 2-1/4"
Hex Hd. Bolt
(2) 3/8" Flat
Washer
3/8-16 Nylon
Lock Nut
5/16-18 x 4-1/ 4"
Hex Hd. Bolt
(2) 3/8" Flat
Washer
5/16-18 Nylon
Lock Nut
(E)
STEP 9
Place the Ladder Support (A) on top of
the Connecting Tube (B) and install the
5/16-18 x 2-3/4" Fastener. (A)
(B)
5/16-18 x 2-3/4"
Hex Hd. Bolt
(2) 5/16" Flat
Washer
5/16-18 Nylon
Lock Nut
(C)
NOTE: Tighten all marked (*)
fasteners to 200 in. lbs.
7
