WEATHER GUARD Model 252-3-02 EZ-GLIDE® System, Full-Size, GM User Manual
Page 12

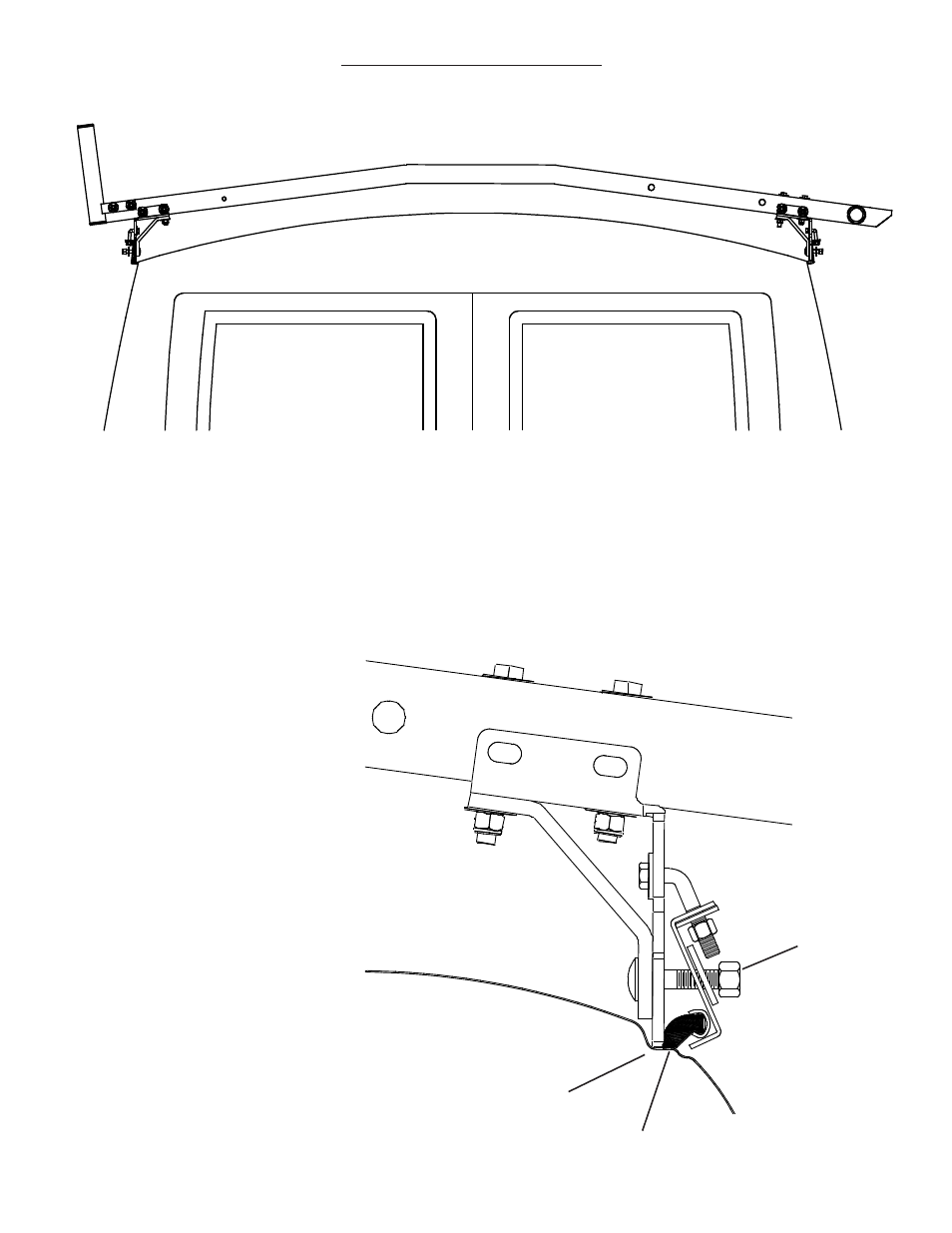

VEHICLE MOUNTING PROCEDURE
NOTE:
Rotation section not
shown for clarity
If installing a Model 252 on a Chevy
or GMC van, the mounting base must
contact the van roof as shown below.
Due to excess body caulk in some gut-
ters on GM vans, it may be necessary
to cut a portion of the caulk out and
then re-caulk after installation is com-
plete.
Mounting Base must contact the
roof gutter.
MODEL 252
GM APPLICATION
Caulk
5/16-18 x 2"
Carriage Bolt
12
