WEATHER GUARD Model 252-3-02 EZ-GLIDE® System, Full-Size, GM User Manual
Page 11
FR
ONT
TO REAR DRIVE
TUBE ASSEMBL
Y

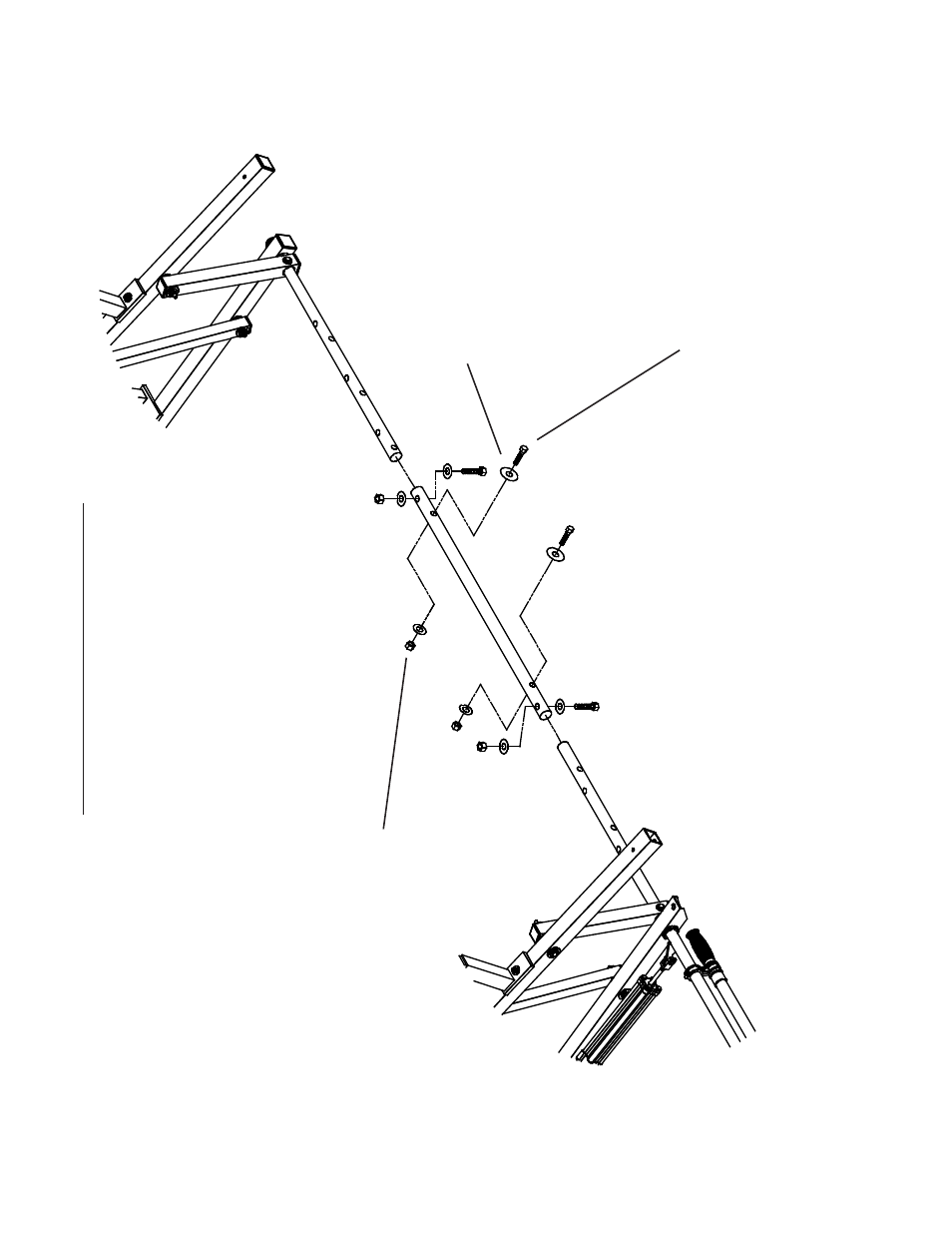

STEP 13
Locate desired front to rear length
(5' or 6' or 7' or 8') and install
5/16-18 x 2" Fasteners
(Tighten fastener
s to 200 in.
lbs.)
(4) 5/16-18
Nylon Lock
Nut
(8) 5/16" Flat
W
asher
(4) 5/16-18 x 2"
Hex Hd. Bolt
STEP 14
Cover any exposed holes on Front and Rear Drive
Tubes
with the 1" Dia. V
inyl Hole Covers
STEP 15
Seal the ends of the Center Drive
Tube, the four 5/16-18 Fasteners,
and the two 3/8-16 Fasteners with the tube of sealant supplied.
11
