WEATHER GUARD Model 252-3-02 EZ-GLIDE® System, Full-Size, GM User Manual

Page 13

background image

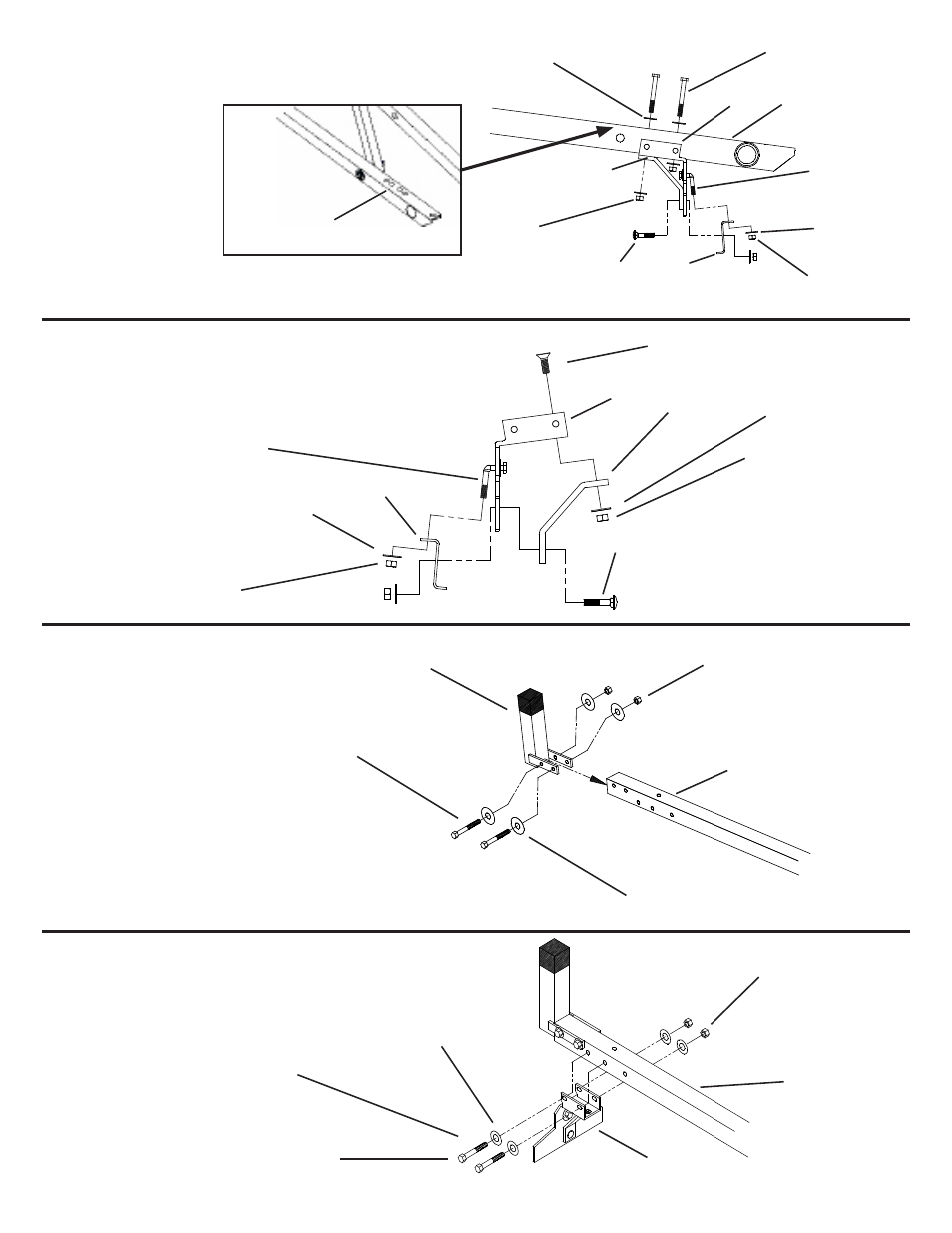

STEP 16 (PASSENGER SIDE Front and Rear)
Attach Mounting Base (A) to Gusset (B), Cross-Member (C),
and Clamp (D) with fasteners shown.

(C)

5/16-18 x 1" Phillips
Flat Hd. Screw

(B)

(A)

(3) 5/16-18 Nylon
Lock Nut

(5) 5/16 Flat
Washer

STEP 17 (DRIVER SIDE Front and Rear)
Attach Mounting Base (A) to Gusset (B) and Clamp (C) with
fastener shown. Tighten only the 5/16-18 x 1" Phillips Screw,
leave all other fasteners loose for easier mounting on vehicle.

(2) 5/16-18 x 2-3/4"
Hex Hd. Bolt

(A)

(B)

(2) 5/16-18
Flat Washer

(2) 5/16-18
Nylon Lock Nut

STEP 18 (DRIVER SIDE Front and Rear)
Attach Driver Side End Stop (A) to
Cross-Member (B) with 5/16-18 x 2-3/4"
Fasteners.

(B)

(A)

(2) 5/16-18 x 2-3/4"
Hex Hd. Bolt

(4) 5/16-18 Flat
Washer

5/16-18 Nylon
Lock Nut

NOTE:
Rotation section not
shown for clarity

STEP 19 (DRIVER SIDE Front)
Attach Mounting Base with Gusset and clamp (A) to
Cross-Member (B) with 5/16-18 x 2-3/4" Fasteners.

(A)

(2) 5/16-18 x 2-3/4"
Hex Hd. Bolt

(4) 5/16-18 Flat
Washer

5/16-18 Nylon
Lock Nut

(B)

NOTE: To allow for final
fit-up, do not tighten
these fasteners at this
time.

(C)

(2) 1/4-20
Flat Washer

1/4-20 Nylon
Lock Nut

1/4-20 Nylon
Lock Nut

(2) 1/4" Flat
Washer

(D)

5/16-18 x 1-1/2" Carr. Bolt for Model 251 (Ford)

NOTE: To allow for final
fit-up, do not tighten
these fasteners at this
time.

5/16-18 x 2" Carr. Bolt for Model 252 (GM)

5/16-18 x 1-1/2" Carr. Bolt for Model 251 (Ford)

5/16-18 x 2" Carr. Bolt for Model 252 (GM)

13

NOTE:
Use inside
mounting holes
for Ford, GM.
Use outside
mounting holes
for Dodge.

1/4-20 x 2"

Bent Bolt

1/4-20 x 2"

Bent Bolt
