B&C Technologies SA Series Industrial - Manual (Page 89)

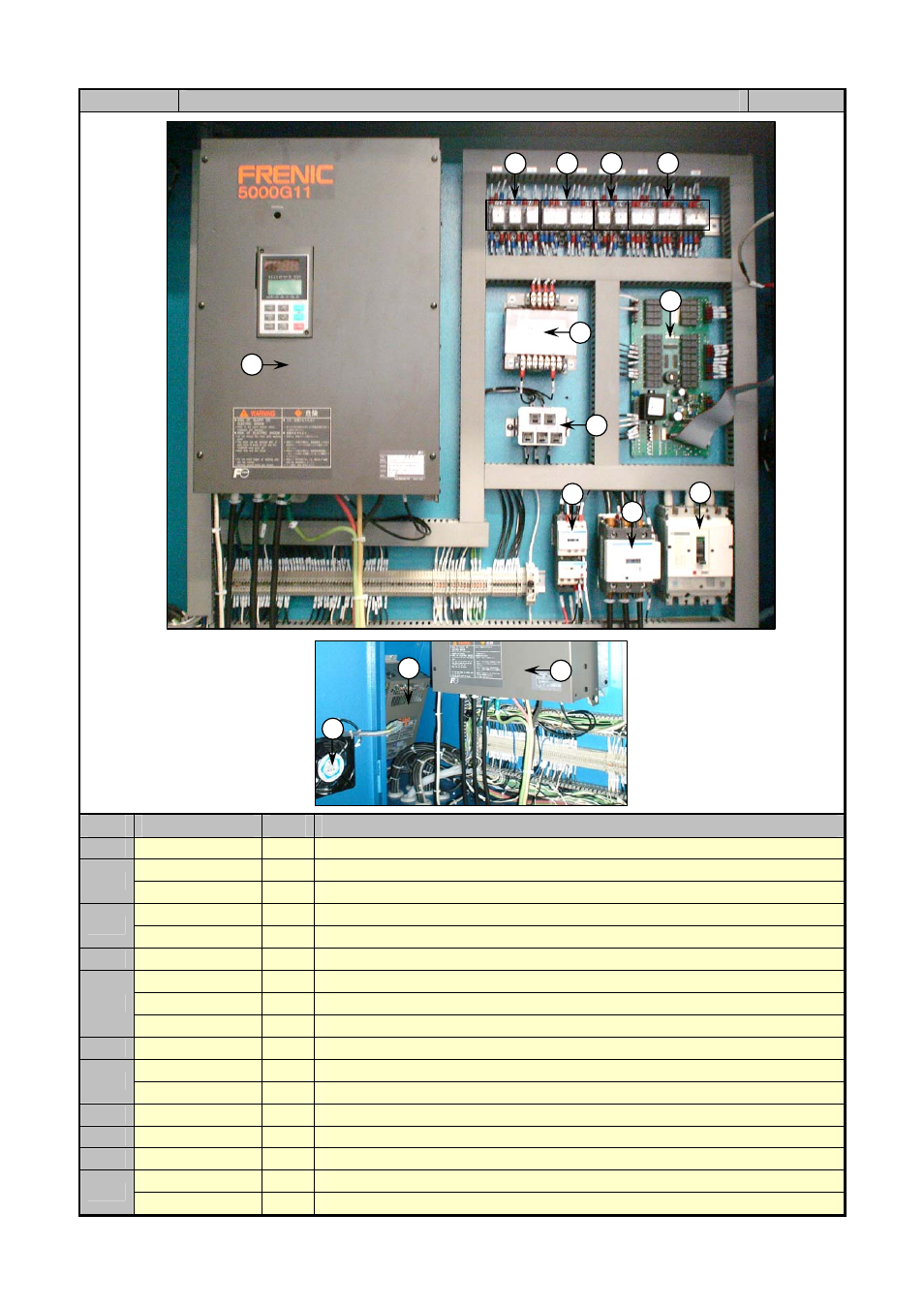

Section 8 Parts List: Electric Control Unit Page 10
Item Part No. Qty. Description
1 A0-E001-142 1 AC Drive inverter
A0-E009-001 5 Relay
2
A0-E009-020 5 Socket relay
A0-E009-011 5 Relay
3
A0-E009-021 5 Socket relay
4 A0-E006-032 1 Transformer
A0-E010-029 2 Circuit breaker 6A
A0-E010-034 2 Circuit breaker 3A 5
A0-E010-035 1 Circuit breaker 2A
6 A0-E007-003 1 EL6 Output board
A0-E004-001 1 Magnetic contactor
7
A0-E025-026 1 Overload
8 A0-E004-013 1 Magnetic contactor
9 A0-E010-057 1 Circuit breaker
10 A0-E002-019 1 Break unit
A0-E012-008 1 Fan, Cooling
11
A0-E012-009 1 Filter, Fan cooling
1
2 3 2 3
4
5
6
7
8
9
10 1
11
