INSTALLATION PROCEDURES
3-1
SECTION 3
INSTALLATION PROCEDURES
When installing the washer – extractor, it is important to allow adequate clearance on all
sides of the machine. When multiple machines are installed, it is important to allow for the specified
minimum clearances between machines. The following table shows recommended minimum
clearances for the various freestanding models.
NOTE:
The dimensions are approximate and subject to normal manufacturing tolerances. If
exact dimensions are required for construction purposes, request certified drawings
from the factory. We reserve the right to make changes at any time without notice.
Table.3-1 Dimension Clearances

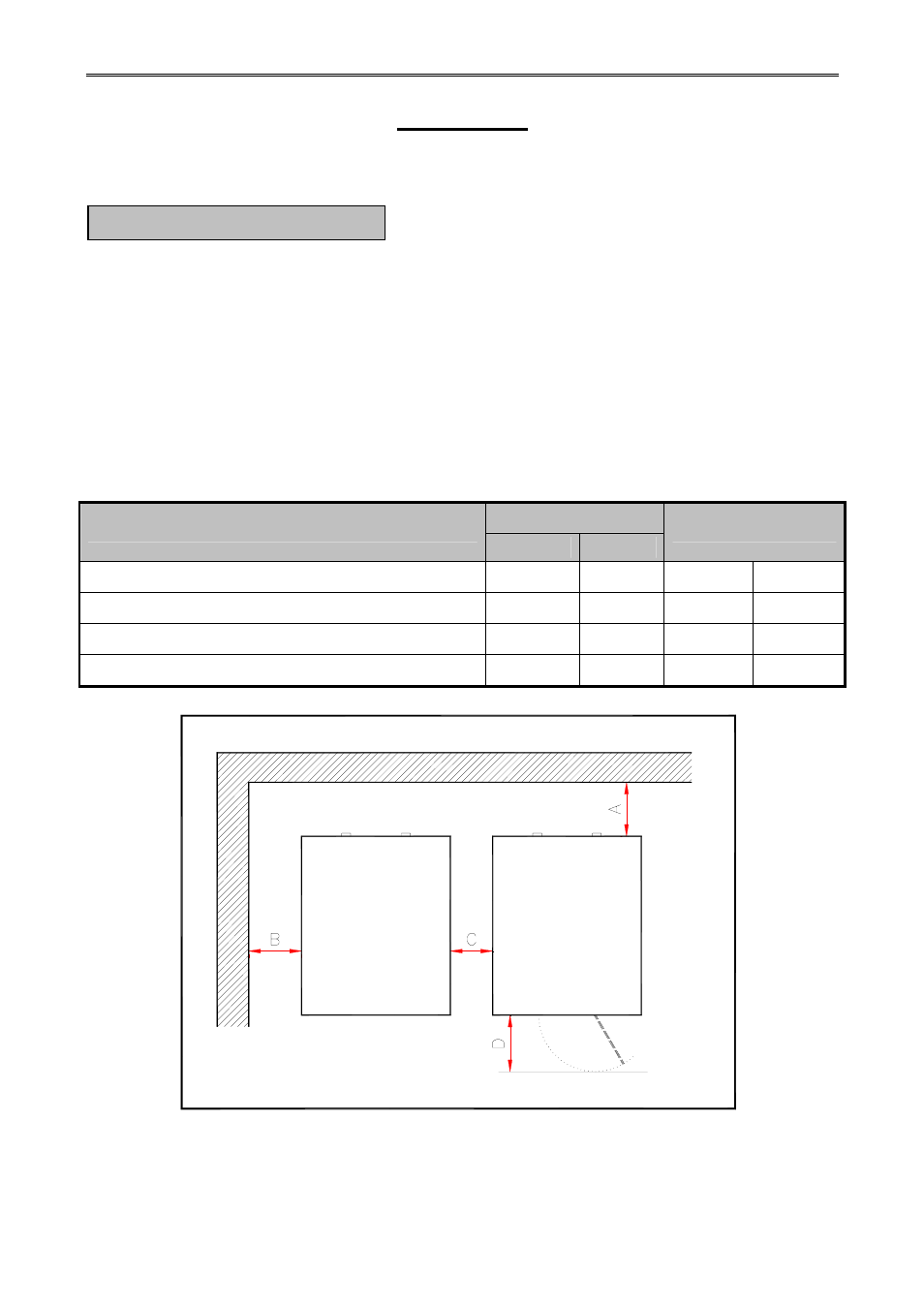

Figure.3-1 Dimensions for construction
UNTIS
Detail
Metric
US
SA Series Tilt
(A) Minimum rear clearance
mm
in
850
33.46
(B) Minimum clearance between machine and wall
mm
in
455
18
(C) Minimum clearance between machines
mm
in
850
33.46
(D) Minimum font clearance
mm
in
1200
47.24
A. DIMENSION CLEARANCES
