B&C Technologies SA Series Industrial - Manual (Page 86)

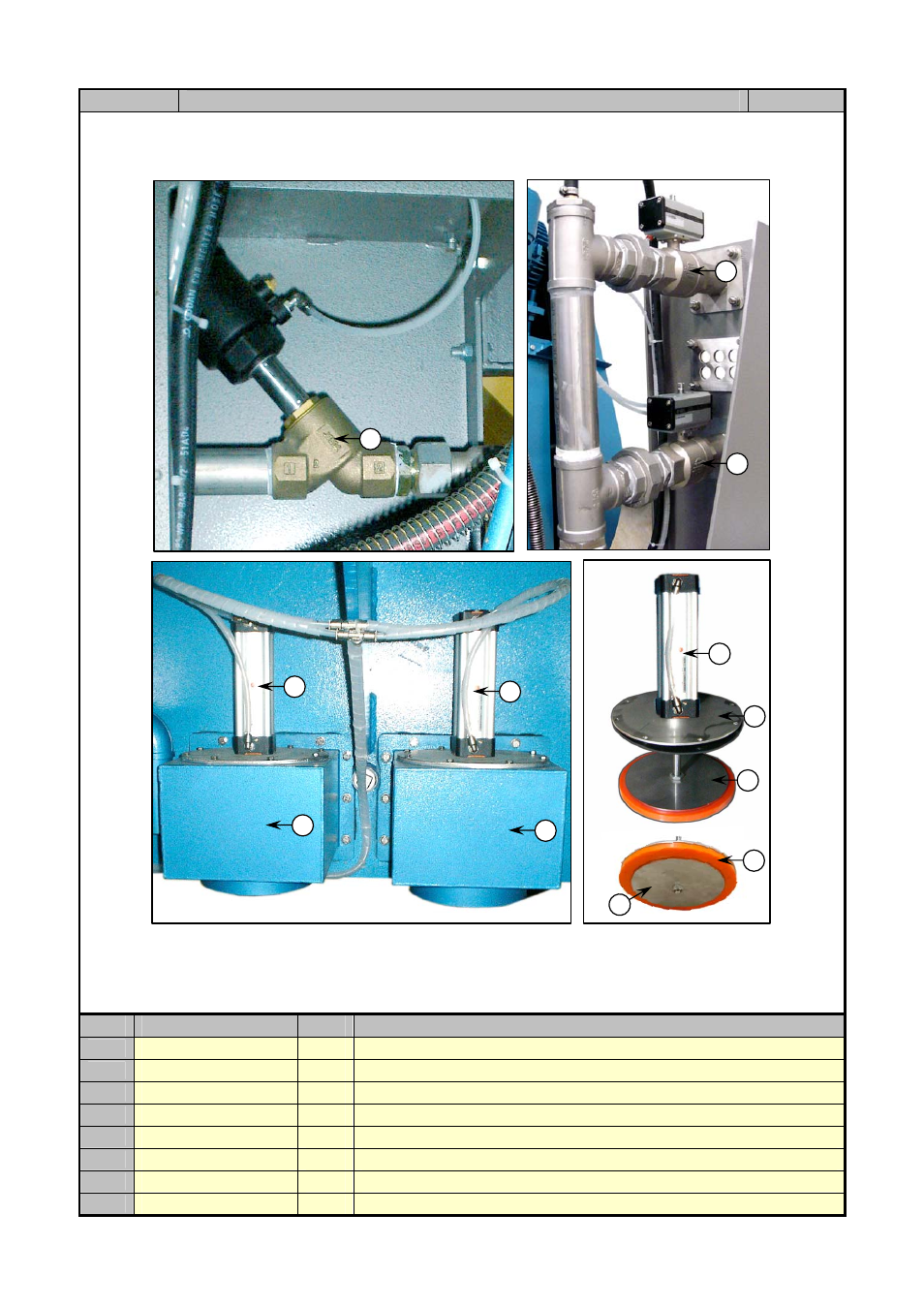

Section 8 Parts List: Drain Valve, Water Valve, Steam Valve Assembly Page 7
Item Part No. Qty. Description
1 A0-E047-070 1 Steam valve
2 A0-P012-008 2 Water valve
3 A0-TSA01-534 2 Drain valve
4 A1-S450-032 2 Drain air cylinder mounting plate
5 A1-S450-034 2 Seal backing plate
6 A0-A001-047 2 Drain rubber seal
7 A1-S450-033 2 Seal front plate
8 A1-S450-012 2 Drain box
1
2
2
3
3
3
4
5
6
7
8
8
