Under DISP ▲ an extra menu is available especially useful during deflation. Besides the
pressure, also the real time heart rate and Korotkoff tone are indicated. Each heart rate is
shown with the symbol α and Korotkoff as Ԁ.
When BP has finished the SYSTOLIC and DIASTOLIC values are shown in the upper line.
With the DISP ▲ the average heart rate during the BP can be made visible:
When DISP ▲ is pressed once more, you are back in the normal screen. So the BP readings
are available only once after the measurement.
A list of most occurring warnings and errors is given in D.4 Abort codes BP system.
The built-in BP module offers, in case of malfunction or poor performance, the possibility to
make error codes visible. See for more information the user guide supplied with this
ergometer.
Caution: The interpretation of the error codes should be done only by experts. Ask your
supplier for more information.
D.2 Patient Hook-up
Correct patient hook-up is very important. Experience has shown that a lot of troubles can be
avoided when the rules below are kept in mind. Especially BP measurement using Korotkoff
tones under stress requires accurate preparation.
D.2.1
Apply the cuff
On the inside of the upper arm you can feel the brachial artery. Palpate the brachial artery to
ensure proper placement. The best place for the microphone is where you can most clearly
feel the pulse (Fig. 23 Palpating the arm). Upper clothing should be taken off!
Pulled up garments should not jam the upper arm.
D.2.2 Position of the cuff

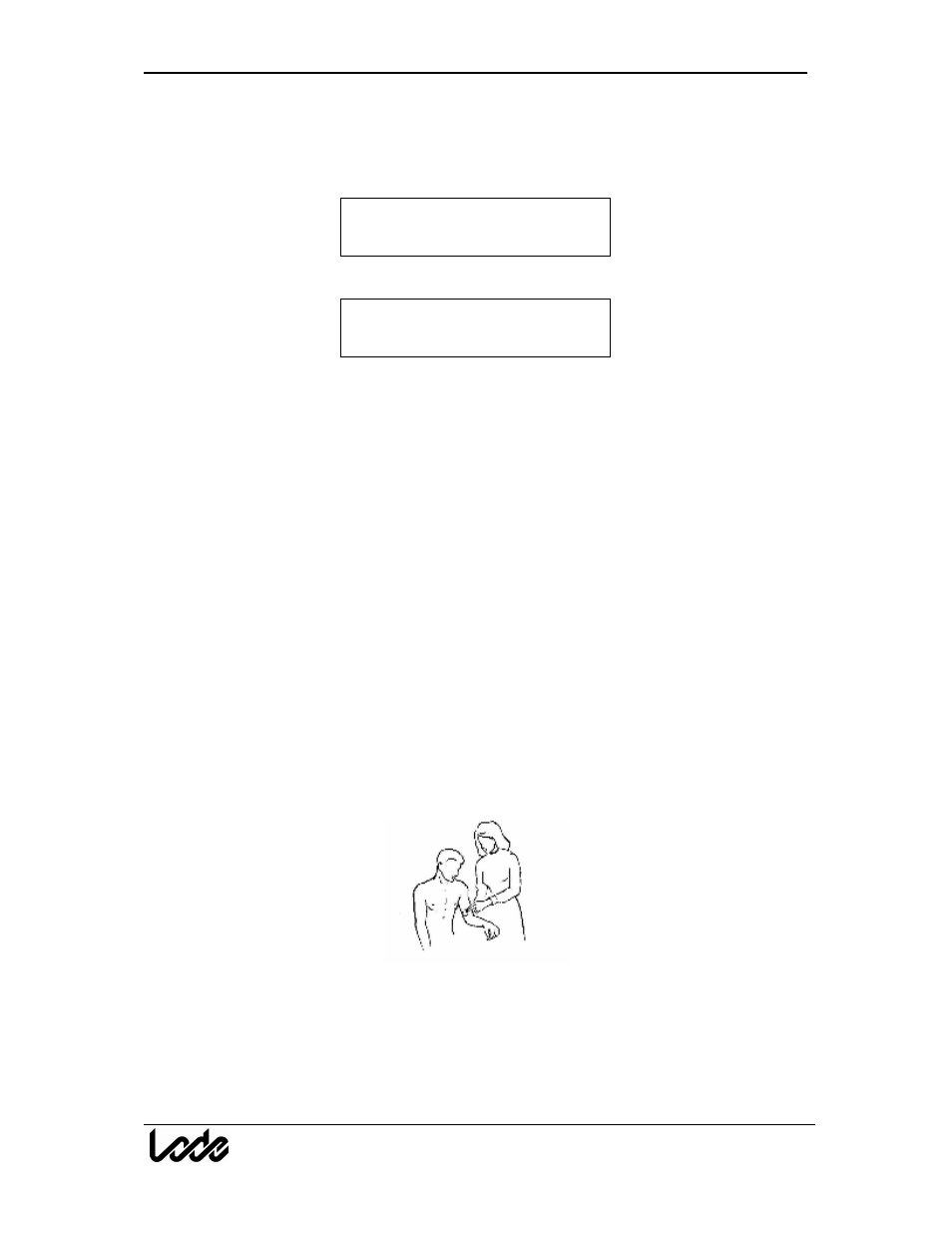

Fig. 23 Palpating the arm
S/D 120/ 80 mmHg
DISP START MAN
BPM HR
θ 64/m
DISP START MAN
