58 Chapter 5 Performing ECG Tests Welch Allyn CP 200 Electrocardiograph

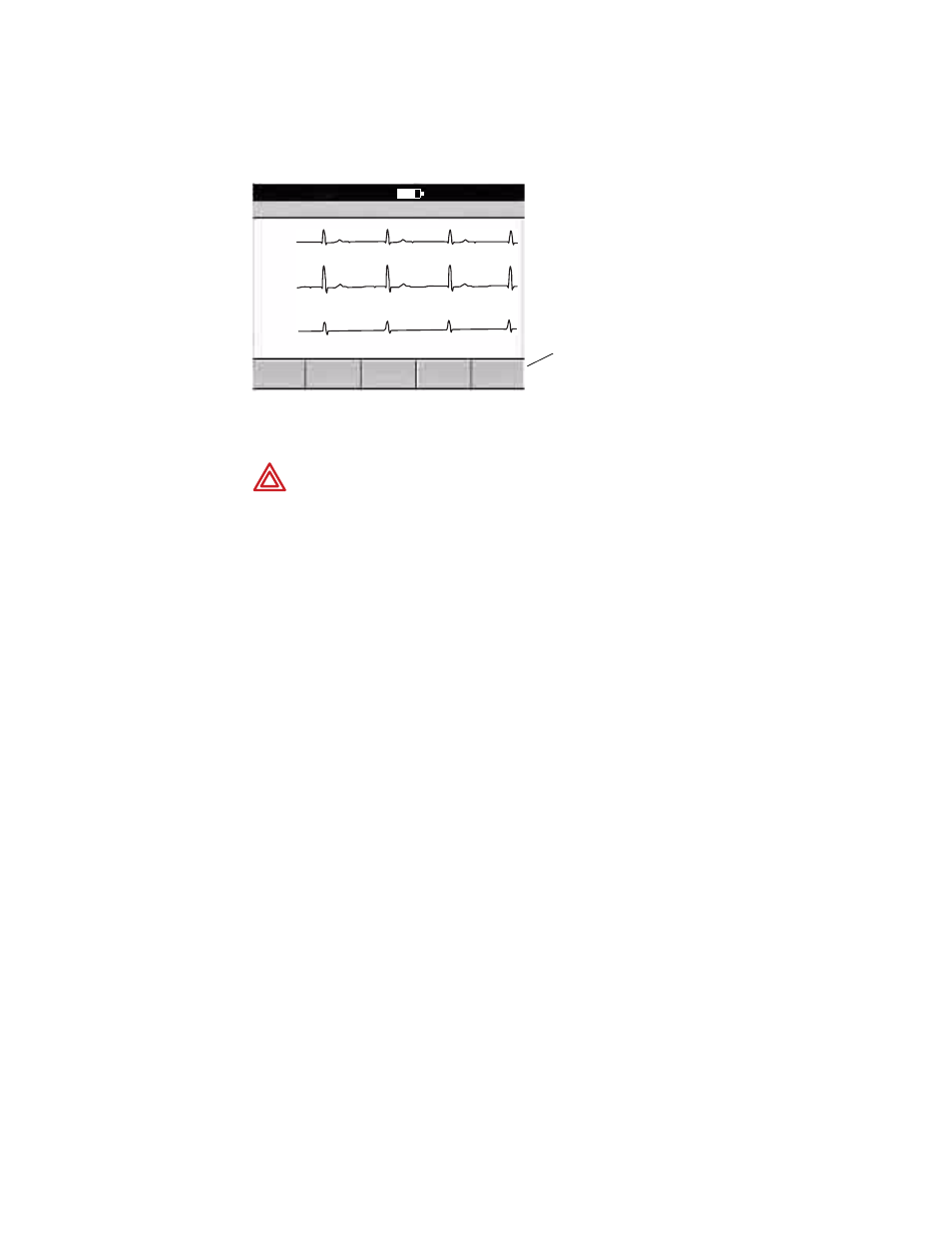

Figure 38. “Auto ECG Acquisition” Screen
4. Verify ECG quality on the screen.
5. (Optional) Adjust the waveforms.
See “Adjusting the ECG Waveforms” on page 68.
6. Press Print ECG.
7. If prompted, choose whether to wait for the electrocardiograph to acquire 10 seconds
of filtered, processed data before printing.
If you override the wait time and print the available data immediately, be aware that
the printed data will be insufficient in quality or quantity or both.
The report prints.
After printing, the Auto ECG Post-Print screen appears. Figure 39 on page 59.
WARNING Do not perform ST segment analysis on the ECG screen display,
since these ECG representations are scaled. Make manual measurements of
ECG intervals and magnitudes on printed ECG reports only.
Note If a red stripe appears along the edge of your report, replace the paper.
See
“Loading the Thermal Chart Paper” on page 23.
Doe, Jane
Gain
Muscle
Filter
Baseline
Filter
Print
ECG
Leads
9:17AM Oct 16 08
Auto ECG Acquisition
AUTO ON ON Softkeys for adjusting the
waveforms or printing
I
V
aVR
HR: 75
