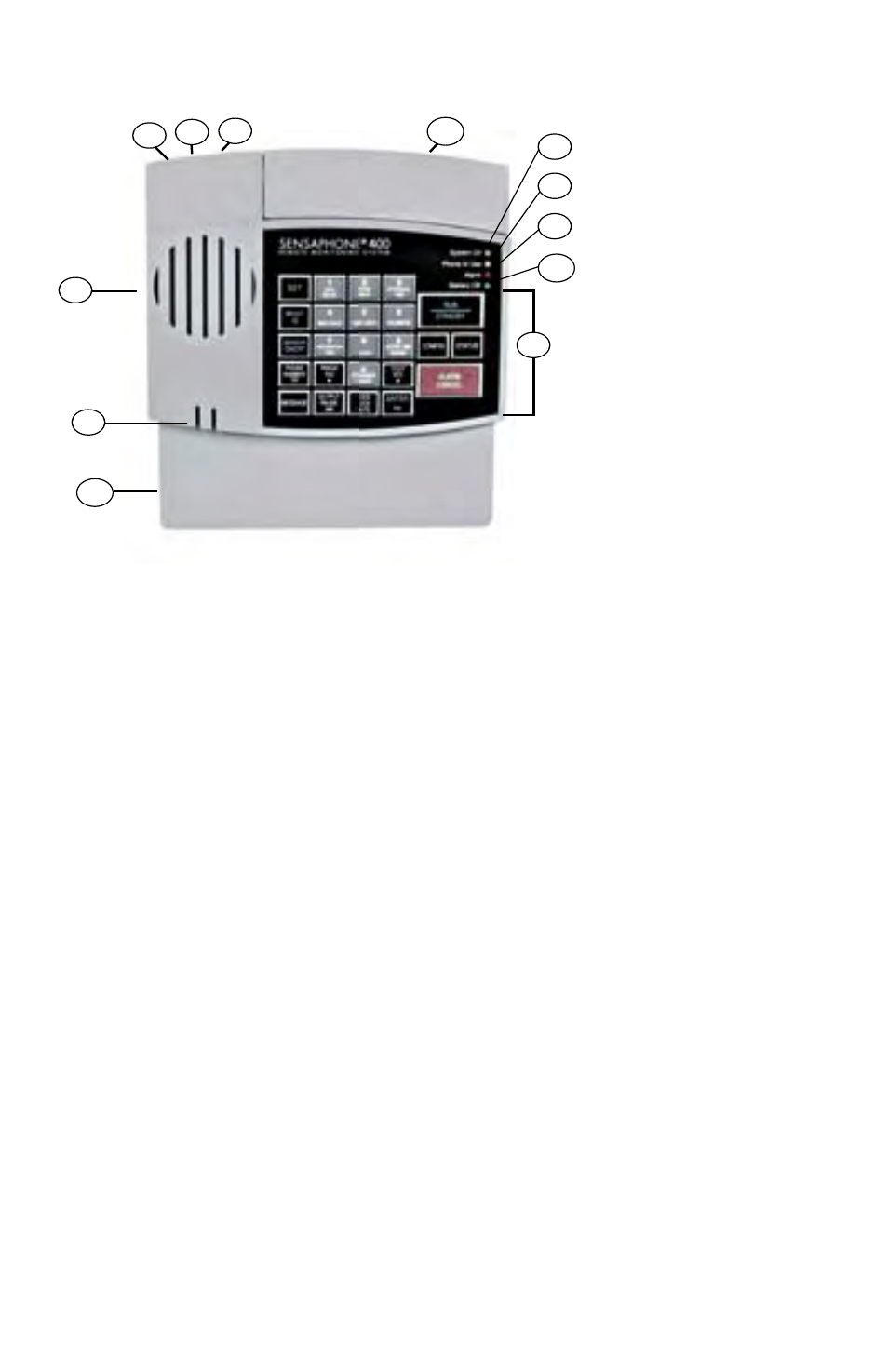

Layout
1. Programming Keypad
2. Power Jack
3. Phone Extension Jack
4. Phone Line Jack
5. Speaker
6. Built in Microphone
7. System on LED
8. Phone-in-use LED
9. Alarm LED
10. Battery OK LED
11. Battery Compartment
12. Input/Output Wiring
Door
LED INDICATORS
The LEDs provide on-site alarm and status information. Listed
below are descriptions of how the LEDs work.
System On
LED Off: Unit is off
LED On: Unit is in Run mode
LED Blinking: Unit is in Standby mode
Phone-In-Use
LED On: The unit or some other device is
communicating on the phone line
LED Off: Phone line is not in use
LED Blinking: No telephone service detected
1
2
4 3
5
7
9
8
20
6
11
10
12
