Rice Lake Sartorius Midrics 1 and 2 Series - Operating Instructions User Manual
Page 54

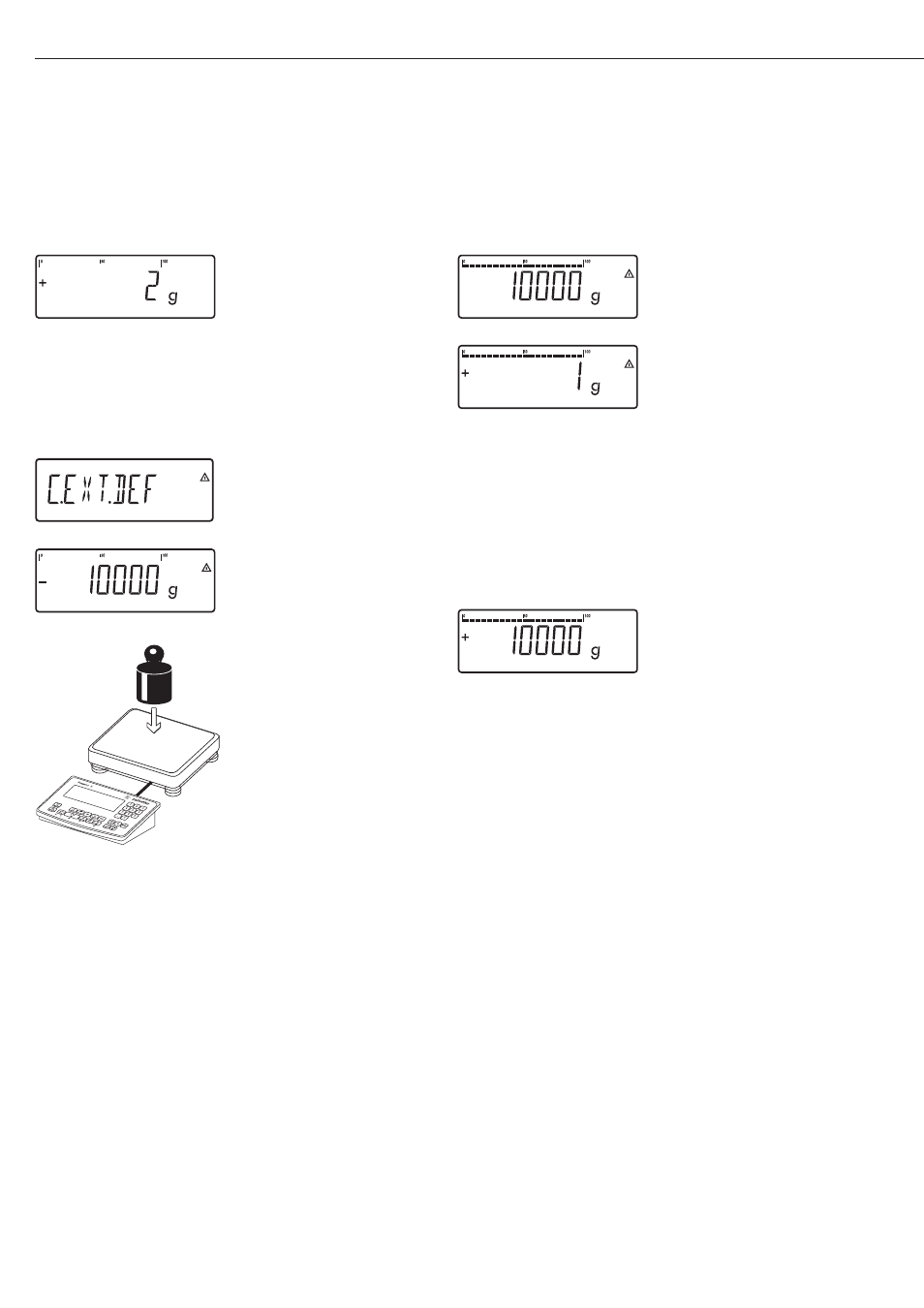

Example:
External calibration and manual adjustment with default weights
(weighing parameters: factory settings)
(
1. Zero the scale.
J
2. Start calibration
(e.g., after calibration prompt:
flashing
WP
symbol).
c.ext.def
is shown for
two seconds.
You are prompted to place
the required weight on the
platform (e.g., 10,000 kg)
3. Position the calibration weight
on the weighing platform
The difference between
measured value and the true
mass is shown with a plus
or minus sign.
Ext.
calibration
Printout is generated,
Nom.
+
10000 g
if adjustment was not
Diff. +
1 g
performed and the procedure
was cancelled by pressing (.
)
4. Start adjustment
(or cancel calibration/adjust-
ment by pressing ().
After adjustment,
the calibration weight value
is displayed.
--------------------
A GMP-compliant printout
24.10.2006
10:15
is generated.
Typ
MW1P1
Ser.no.
12345678
Vers.
1.0103.11.2
BVers.
01-26-06
--------------------
Ext.
calibration
Nom.
+
10000 g
Diff. +
1 g
Ext.
adjustment
Diff. +
0 g
--------------------
24.10.2006
10:15
Name:
--------------------
54
