17 CLS-420 Installation Manual
3.5.3 Charging the Lithium-Ion Battery
The lithium-ion battery comes with a two-bay, level-3 stand alone smart battery charger, a DC power jack, and a
AC power cord as shown in Figure
3-9.
To calibrate the
battery pack,
press the button
on front label.
See Section
3.5.4

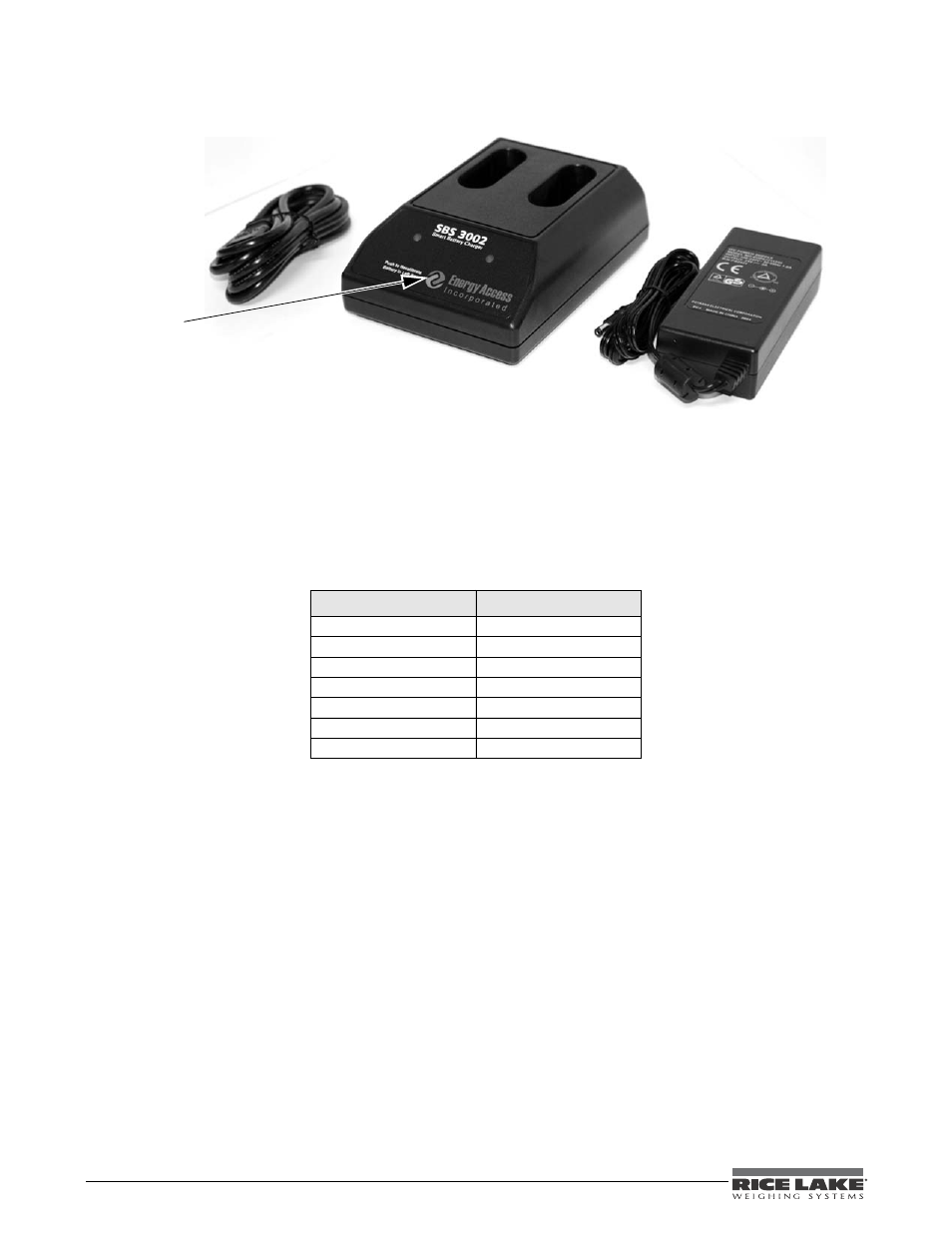

Figure 3-9. Two-Bay Battery Charger and Parts for the Lithium-Ion Battery
The average charge time for the battery is three hours each.
Use the following steps to charge the battery prior to use:
1. Insert the plug end of the power cable into the DC power jack on the battery charger and the AC plug into
an outlet.
2. Insert battery into the bay.
3. There is one LED indicator in front of each bay which will illuminate to indicate the status of the battery as
follows:
Table 3-3. Battery Charging LED Signals
Signal Description
Off No Battery
Green Flashing Fast Charging
Green Solid Fully Charged
Yellow Flashing Recalibrating
Yellow/Green Alternating Recalibrating
Yellow Solid Standby
Red Flashing Error
3.5.4 Calibrating the Lithium-Ion Battery
In order to keep the battery fuel gauge as accurate as possible, it is necessary to occasionally run the pack through a
recalibration cycle. To do this, place the battery in the left bay of the charger and press the button on the front label
(see Figure
3-9). This will initiate the recalibration sequence in the left bay only. The process can take up to nine
hours to complete and a recommended recalibration should be done once quarterly to keep the battery accurate.
