Page 8

4
Precision Loads On-Board Weighing Installation & Service Manual
3.0
Load Cell Assemblies and General Specifications
3.1
Feed Wagon Cantilever Beam
Model PL9000-11 load cell is designed for use in feed wagon and other light duty agricultural on-board scale
applications. Rated dynamic capacity of the load cell is 7000 lbs (3175 kg). The single tie-down bolt used is 1-1/4
-12UNF x 2.50" L and must be torqued to 1000 lb/ft. The body bracket mounting bolt holes require 3/4" coarse
thread Grade 8 bolts requiring a minimum torque of 400 lb/ft.

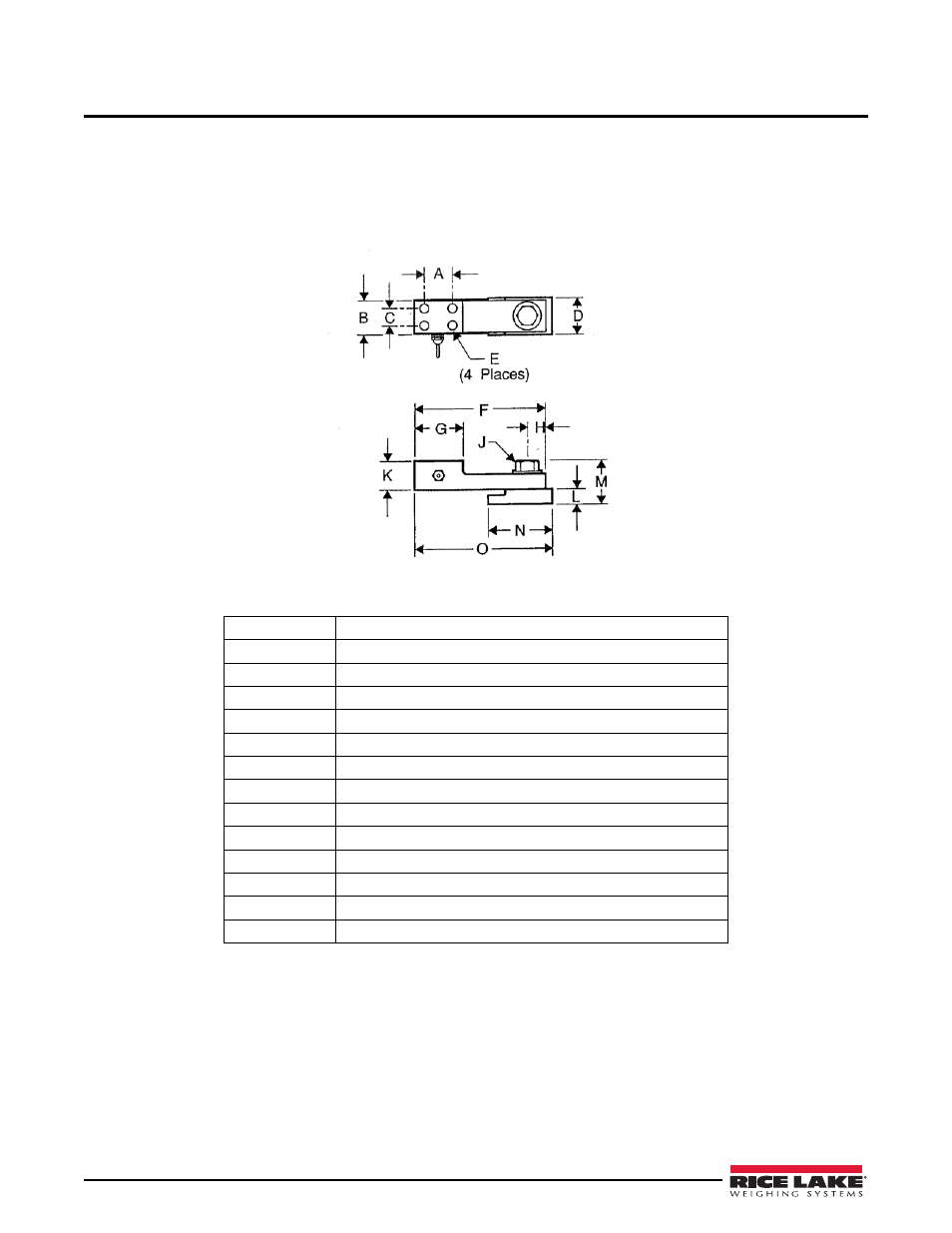

Figure 3-1. Model PL9000-11 Specifications
Table 3-1. Model PL9000-11 Specifications
A
2.3” (58mm)
B
2.84” (72mm)
C
1.42” (36mm)
D
3.0” (76mm)
E
3/4-10 UNC x 1.0” (25mm) deep, 4 places
F
10.8” (274mm)
G
4.0” (102mm)
H
1.5” (38mm)
J
1 1/4-12 x 2 1/8” UNF SAE Grade 8 bolt and flat washer
K
2.3” (58mm)
L
1.2” (30mm)
M
3.4” (86mm)
N
5.3” (135mm)
O
11.3” (287mm)
