3.3.1 Configuration Menu

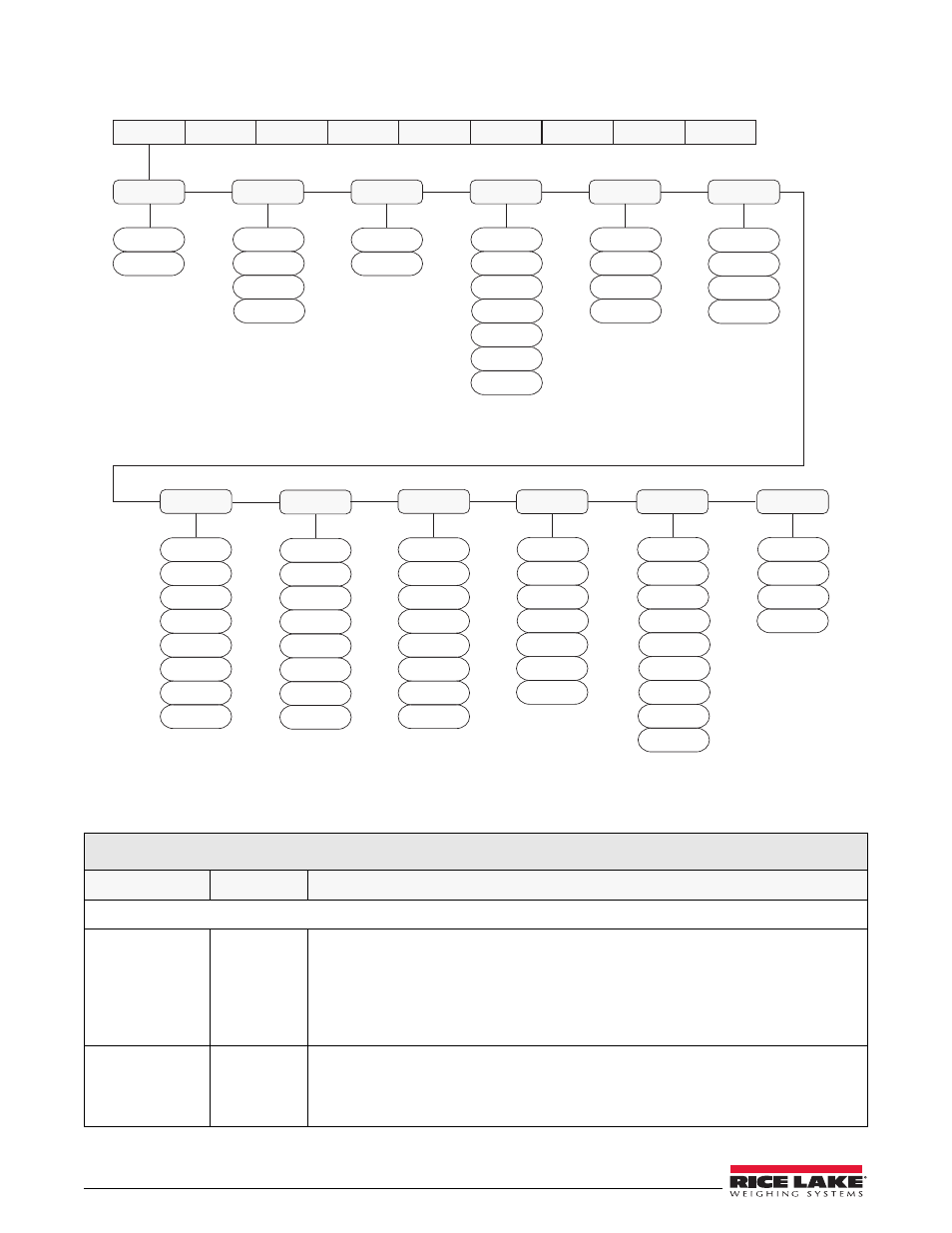

Figure 3-1. Configuration Menu
CONFIG Menu
Parameter Choices Description
Level 2 submenus
GRADS 10000
number Graduations — Specifies the number of full scale graduations. The value entered must be in
the range 1–100 000 and should be consistent with legal requirements and environmental
limits on system resolution.
To calculate GRADS, use the formula, GRADS = Capacity / Display Divisions.
Display divisions for primary and secondary units are specified on the FORMAT menu.
ZTRKBN OFF
0.5D
1D
3D Zero track band — Automatically zeroes the scale when within the range specified, as long
as the input is within the configured zero range (ZRANGE parameter). Selections are ±
display divisions. Maximum legal value varies depending on local regulations.
Table 3-2. Configuration Menu Parameters
