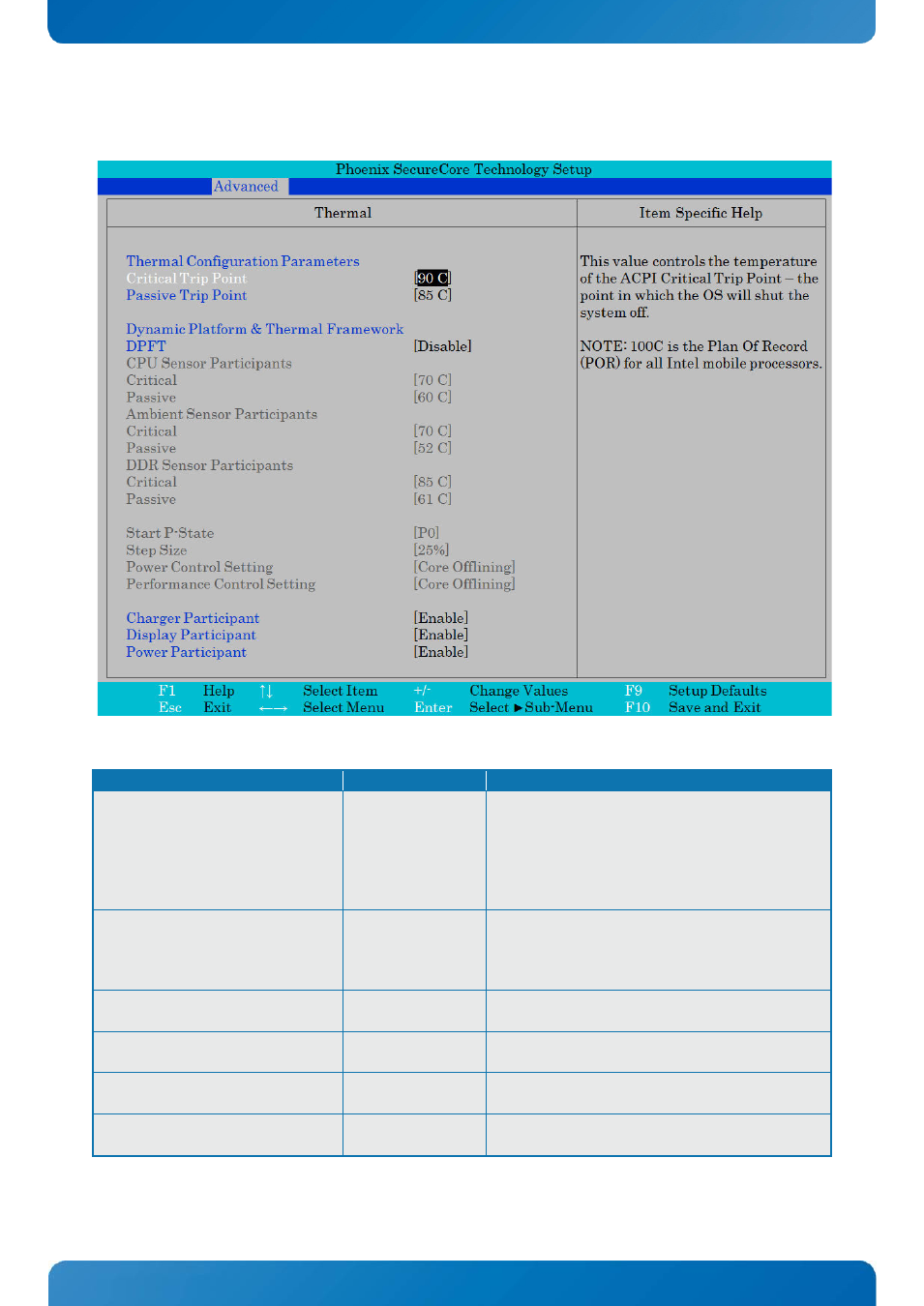

Thermal
Phoenix SecureCore Technology Setup
Advanced
Thermal Item Specific Help
Thermal Configuration Parameters
Critical Trip Point
Passive Trip Point
Dynamic Platform & Thermal Framework
DPFT
CPU Sensor Participants
Critical
Passive
Ambient Sensor Participants
Critical
Passive
DDR Sensor Participants
Critical
Passive
Start P-State
Step Size
Power Control Setting
Performance Control Setting
Charger Participant
Display Participant
Power Participant
[ 90 C ]
[85 C]
[Disable]
[70 C]
[60 C]
[70 C]
[52 C]
[85 C]
[61 C]
[P0]
[25%]
[Core Offlining]
[Core Offlining]
[Enable]
[Enable]
[Enable]
This value controls the temperature
of the ACPI Critical Trip Point – the
point in which the OS will shut the
system off.
NOTE: 100C is the Plan Of Record
(POR) for all Intel mobile processors.
F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select ► Sub-Menu F10 Save and Exit
Function Selection Description
Critical Trip Point
15 C, 23C, 31 C,
39C, 47 C, 55 C, 63
C, 71 C, 79 C, 85 C,
87 C,
90 C
This value controls the temperature of the ACPI
Critical Trip Point – the point in which the OS will
shut the system off.
NOTE: 100C is the Plan Of Record (POR) for all
Intel mobile processors.
Passive Trip Point
15 C, 23C, 31 C,
39C, 47 C, 55 C, 63
C, 71 C, 79 C,
85 C,
87 C, 90 C
This value controls the temperature of the ACPI
Passive Trip Point – the point in which the OS
will begin to throttling the processor.
DPFT
Disable
Enable
Enable/Disable DPTF.
Charger Participant
Disable
Enable
Enable/Disable Charger Participant Device.
Display Participant
Disable
Enable
Enable/Disable Display Participant Device.
Power Participant
Disable
Enable
Enable/Disable Power Participant Device.
