KTD-N0904-D Page 27 IO-Area Connectors
pITX-E38 Users Guide
Pin 1

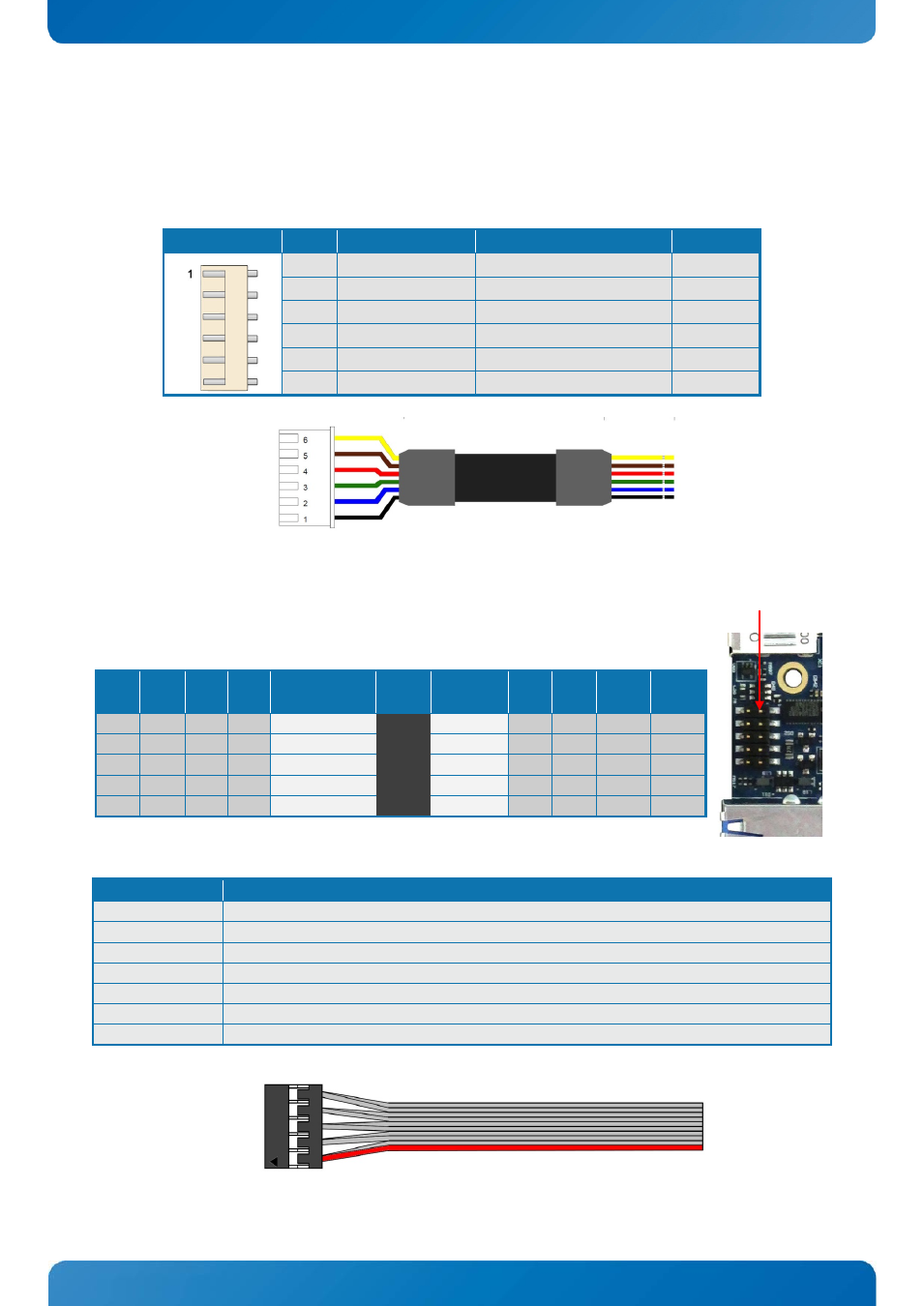

Audio Connector 7.5
The on-board Audio circuit implements High Definition Audio with UAA (Universal Audio Architecture),
featuring 24-bit stereo DAC and 20-bit stereo ADCs.
Available cable kit:
96063-0000-00-1 Cable KAB-SOUND-CMP-2
Front Panel Connector (FRONTPNL) 7.6
Note1, LED output has integrated 220 ohm.
Signal Description
RSTIN# Reset Input active low.
PWRBTN_IN# Power Button In. Toggle this signal low to boot the board or to shut down.
Beep
+5V 5V maximum load is 500mA.
3.3V 3.3V signal via 220 ohm resistor pullup to 3.3V.
SATA_LED# SATA Activity LED (active low signal). 3V3 output when passive.
SUS_LED Suspend Mode LED (active high signal). Output 3.3V via 220Ω.
Available cable kit:
1055-8065 Cable Frontpanel 10p 20cm OE pITX-E38
Header Pin Signal Description Type
1 Line-in left O
2 Mic Microphone I
3 Line-in right O
4 Line-out left I
5 GND Ground PWR
6 Line-out right O
Note Pull
U/D
Ioh/
Iol Type
Signal PIN Signal Type Ioh/
Iol
Pull
U/D Note
- - I PWRBTN_IN# 2 1 RSTIN# I - -
- - PWR Gnd 4 3 GND PWR - -
- - PWR 5V 6 5 Beep - -
220R - O 3.3V 8 7 3.3V O - 220R
1 - - O SuspendLED 10 9 SataLED# O - - 1
