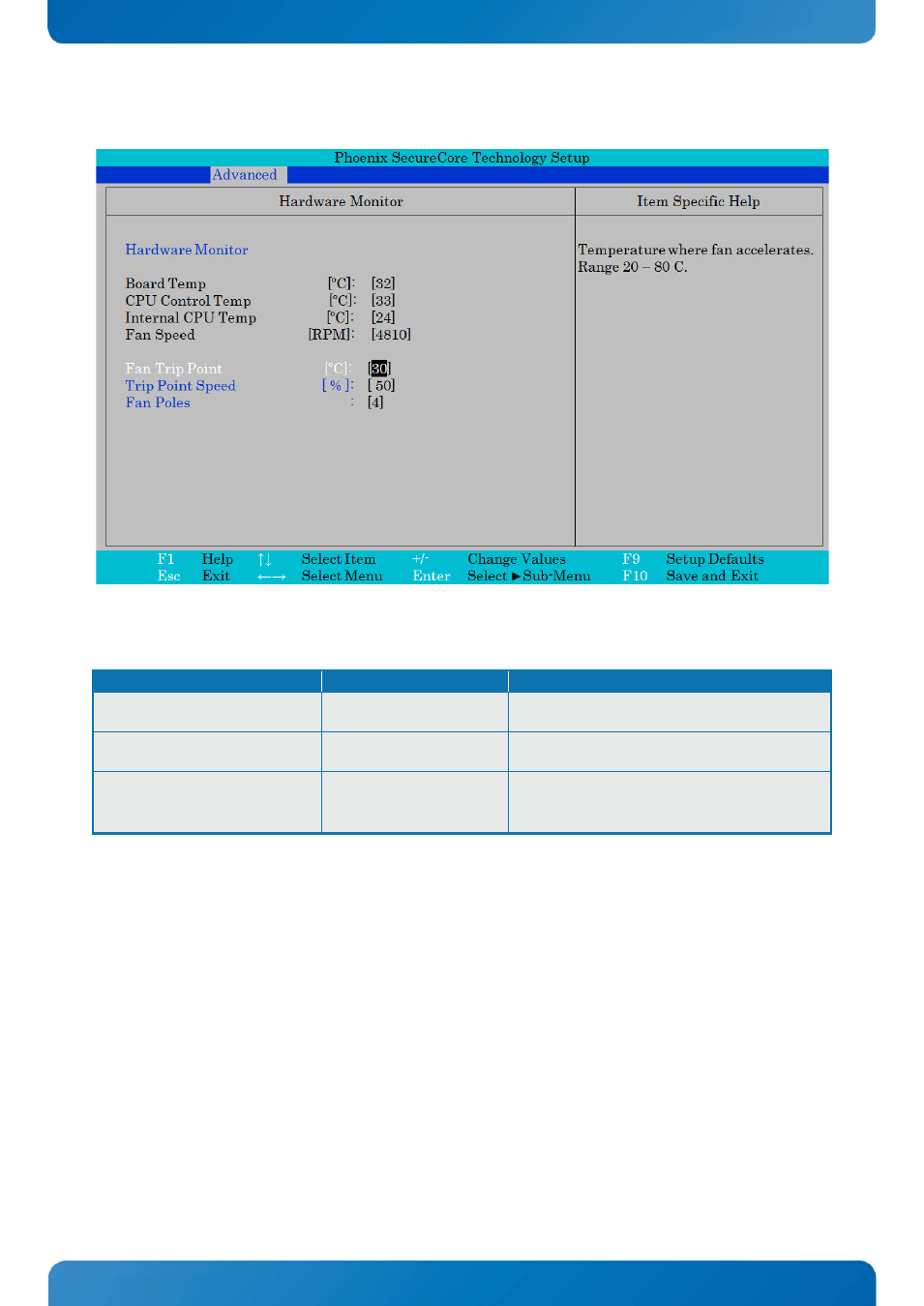

Hardware Monitor
Phoenix SecureCore Technology Setup
Advanced
Hardware Monitor Item Specific Help
Hardware Monitor
Board Temp [ºC]:
CPU Control Temp [ºC]:
Internal CPU Temp [ºC]:
Fan Speed [RPM]:
Fan Trip Point [ºC]:
Trip Point Speed [ % ]:
Fan Poles :
[32]
[33]
[24]
[4810]
[ 30 ]
[ 50]
[4]
Temperature where fan accelerates.
Range 20 – 80 C.
F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select ► Sub-Menu F10 Save and Exit
Function Selection Description
Fan Trip Point 20, 21, …, 30, …, 80
Temperature where fan accelerates.
Range 20 – 80 C.
Trip Point Speed 30, 31, …, 50, …, 100
Fan speed at trip point in %. Minimum value
is 30.
Fan Poles
2
4
6
The number of pole pairs inside the fan. Ex:
Fan poles=4 generates 2 pulses every one
rotation.
