IO-Area Connectors

pITX-E38 Users Guide

USB Connectors (IO Area)

6.1

The pITX-E38 board contains support for 1 USB3.0/2.0 port (Lower USB port, USB0) and one USB2.0 port

(higher USB port, USB1) in the IO area.

USB 2.0 ports allowing data transfers up to 480Mb/s. The USB 3.0 port allowing data transfers up to 5Gb/s.


(Two internal USB ports are available via internal 4-pin connectors)

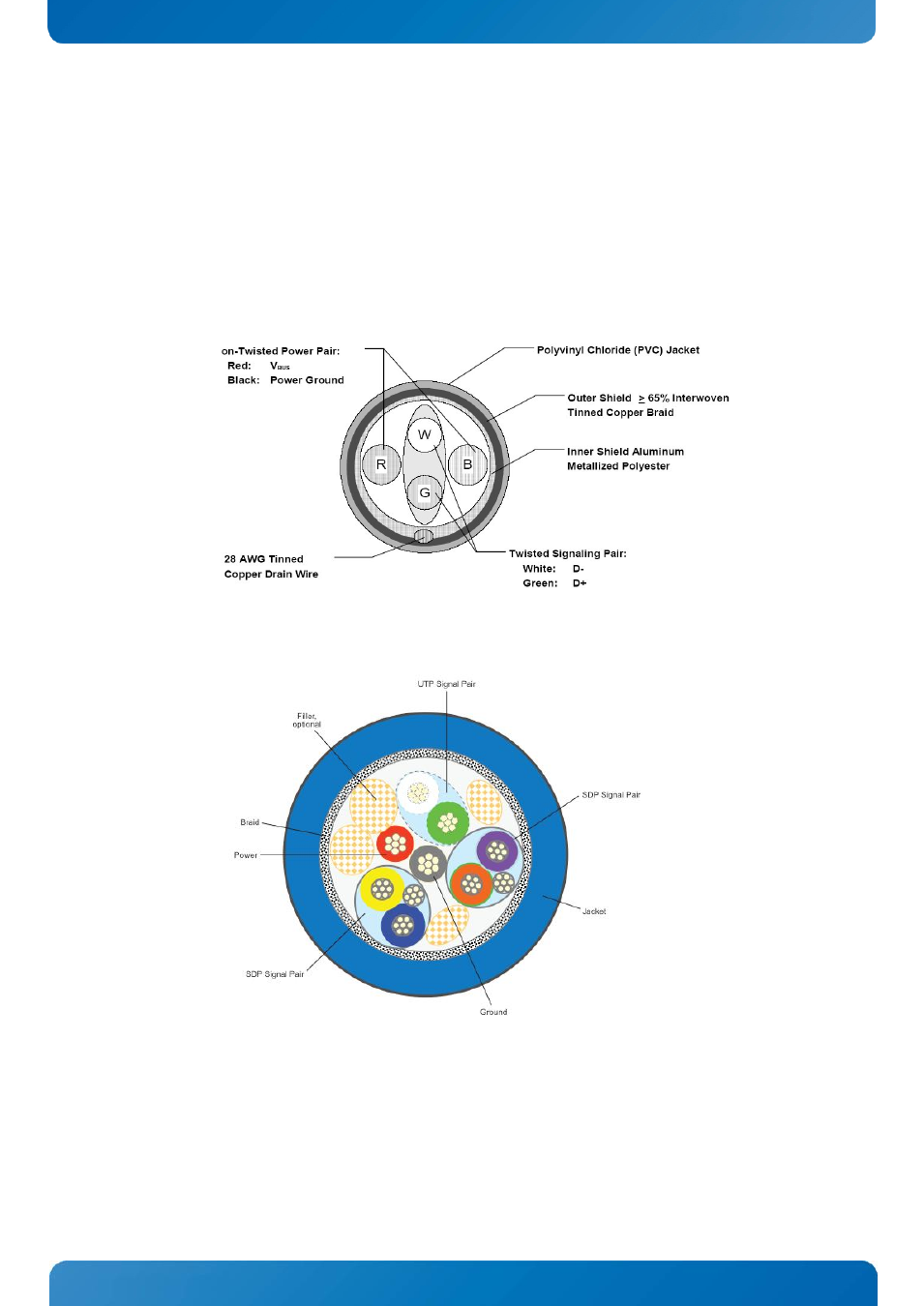

For USB2.0 cabling it is required to use only HiSpeed USB cable, specified in USB2.0 standard:








For USB3.0 cabling it is required to use only HiSpeed USB cable, specified in USB3.0 standard:
