KTD-N0904-D Page 47 BIOS - Advanced
pITX-E38 Users Guide
Display Configuration
Function Selection Description
Onboard LVDS
Disabled
Enabled
Enable/Disable onboard LVDS.
Resolution
640 x 480
800 x 480
800 x 600
1024 x 600
1024 x 768
1280 x 800
1280 x 1024
1366 x 768
1600 x 1200
1920 x 1080
Custom
Resolution of panel to select.
Manufacture
(Standard)
AUO
Philips
Primeview
Samsung
Manufacture of panel to select.
Panel name Note1
640x480 18
640x480 24
N/A
Name of panel to select.
Panel VCC
3,3V
5V
VCC of panel selected panel.
Backlight Enable Active
Low
High
Inversion of backlight signal.
Note1: Depend on Resolution and Manufacture combination. If combination does’nt exist then Panel name
is N/A (Not Available).

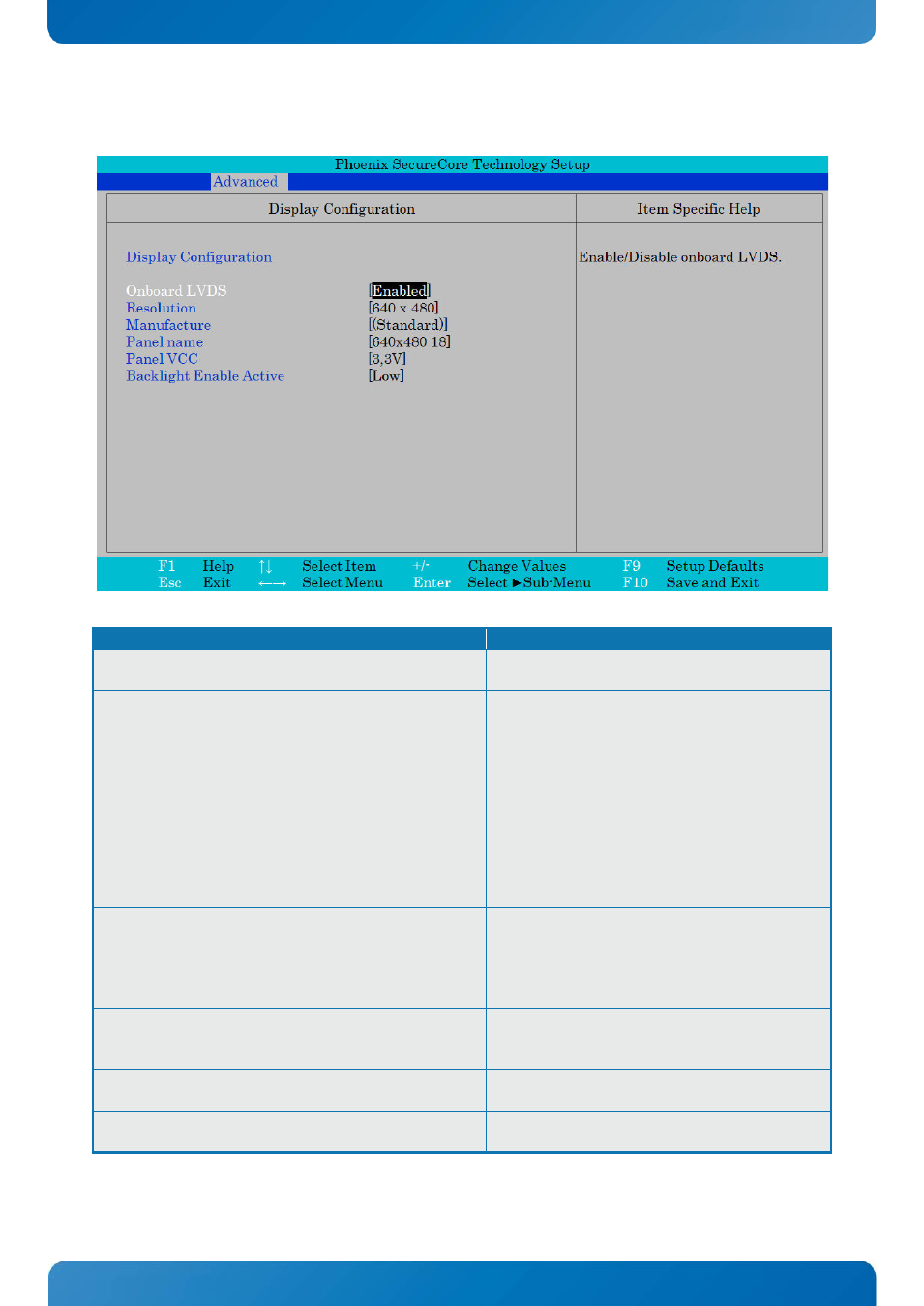

Phoenix SecureCore Technology Setup
Advanced
Display Configuration Item Specific Help
Display Configuration
Onboard LVDS
Resolution
Manufacture
Panel name
Panel VCC
Backlight Enable Active
[ Enabled ]
[640 x 480]
[(Standard)]
[640x480 18]
[3,3V]
[Low]
Enable/Disable onboard LVDS.
F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select ► Sub-Menu F10 Save and Exit
