KTD-N0904-D Page 11 System Specification
pITX-E38 Users Guide
System overview 3.1

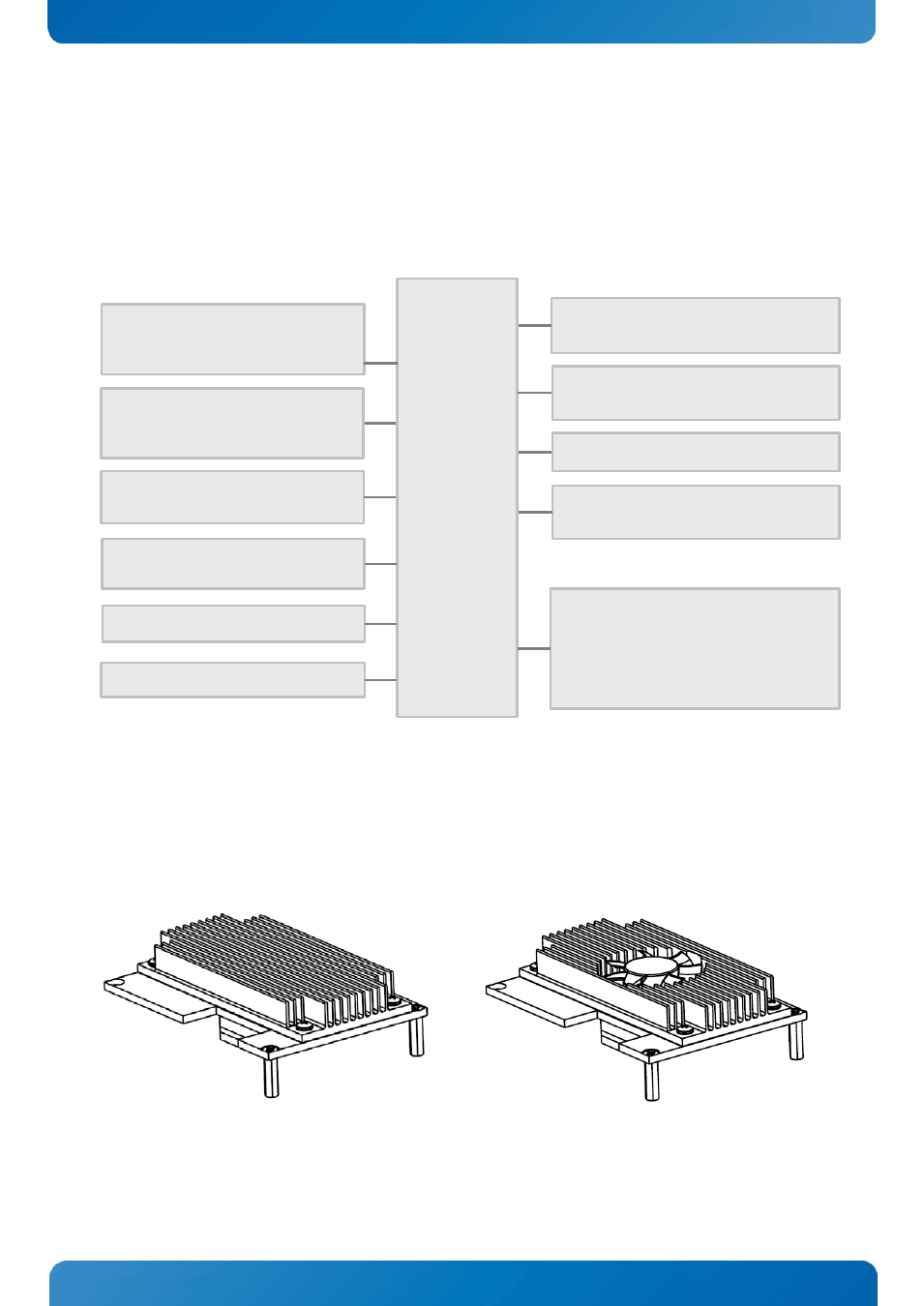

The block diagram below shows the architecture and main components of the pITX-E38. The key component
on the board is the Intel ® Atom E38xx SoC (Bay Trail).
Integrated premounted cooler 3.2
Passive cooler on the pITX-E3815 and pITX-E3826 Active cooler on the pITX-E3845
Intel
Atom
E3815/26/
45
System on
Chip
SODIMM DDR3L 1066/1333
1 slot 1-8GB.
DP (DisplayPort 1.1),
LVDS (2 pixel/clock, 24 bit):
DP + LVDS
SPI BIOS Flash (64MBit)
SPI Header
10x GPIO
Hardware Monitor NCT7802Y:
Fan
SoC temperature
System temperature (LM75)
2x COM (RS232, TTL level)
1x LAN GbE (Intel Pearsonville)
10/100/1000Mb
Audio Codec 2HD73C1T5PRGIC1X8:
Line-In, Line-Out & Mic
mSATA or mPCIe (no USB)
1x SATA 2.0 1x USB3.0/2.0 (IO area)
1x USB2.0 (IO area)
2x USB2.0 (internal)
MicroSD Card slot
