KTD-N0904-D Page 28 IO-Area Connectors
pITX-E38 Users Guide

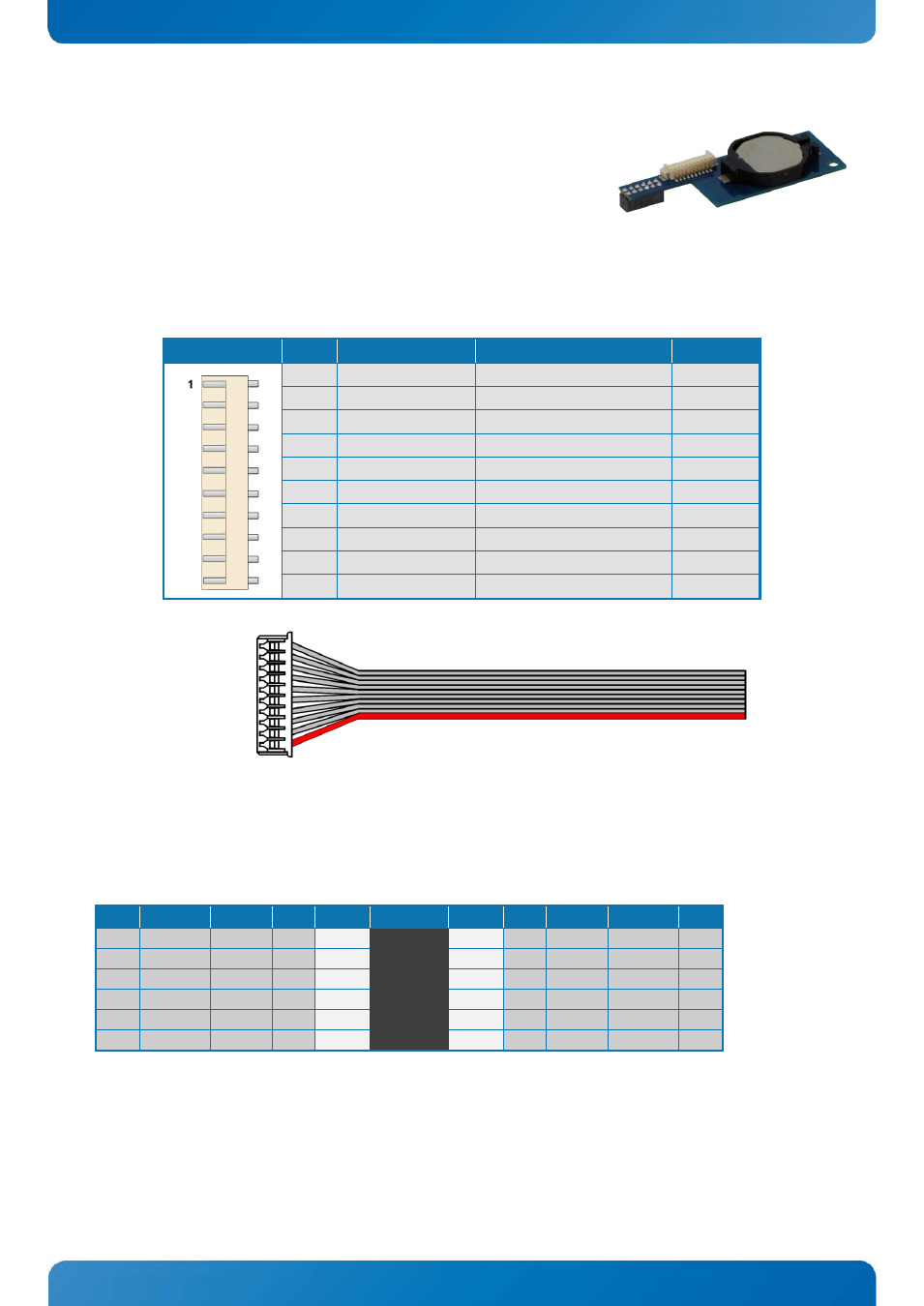

Battery Module 7.7
The battery module PN PN 1055-7645 contains Lithium battery
BR2032/BN in a socket, GPIO connector and SBC-Connector. The SBC
Connector is used to interface the SBC-GPIO and SBC-Ext-Bat connectors.
GPIO Connector (GPIO)
The GPIO connector is present on the Battery Module.
Available cable kit:
1055-8063 Cable GPIO 10p 20cm OE pITX-E38
SBC Connector (SBC-Connector)
The SBC connector is present on the Battery Module and used to interface the Battery Module to the SBC.
Header Pin Signal Description Type
1 3.3V 3.3V Power Out PWR
2 GPIO0 IOT
3 GPIO1 IOT
4 GPIO2 IOT
5 GPIO3 IOT
6 GPIO4 IOT
7 GPIO5 IOT
8 GPIO6 IOT
9 GPIO7 IOT
10 GND Ground PWR
Note Pull U/D Ioh/Iol Type Signal PIN Signal Type Ioh/Iol Pull U/D Note
- - Bat- 2 1 Bat+ -
- TBD IOT GPIO7 4 3 GND PWR -
- TBD IOT GPIO5 6 5 GPIO6 IOT TBD -
- TBD IOT GPIO3 8 7 GPIO4 IOT TBD -
- TBD IOT GPIO1 10 9 GPIO2 IOT TBD -
- PWR 3.3V 12 11 GPIO0 IOT TBD -
