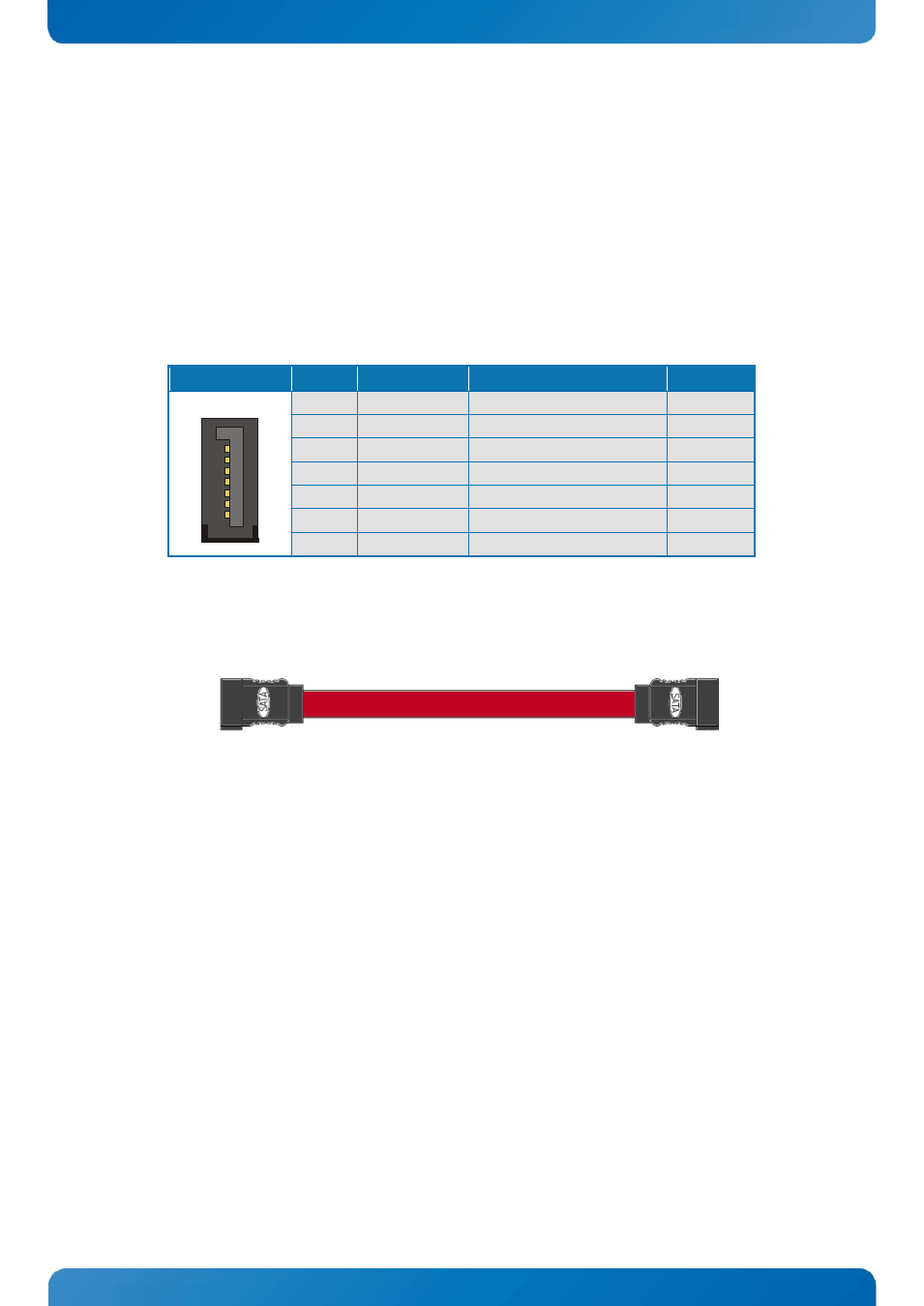

8.6 SATA0, 1, 2, 3, 4, 5 (J12, J13, J9, J11,J10 & J39)
The six SATA ports comply with SATA 3.0 and supports IDE emulation mode, AHCI (Advanced Host
Controller Interface) 1.3 mode and RAID mode (RAID 0, RAID 1 and RAID10) across all 6 ports.
The SATA5 (J39) is shared with the mSATA connector.
The SATA 3.0 supports transfer rates up to 6 Gbit/s, but also SATA 1.0 and SATA 2.0 transfer rates are
supported, 1.5 Gbit/s and 3.0 Gbit/s respectively.
The S-ATA
® interface is available through standard L-type connector (7 pins).
Header Pin Signal Description Type
1 GND Ground PWR
2 TX+ Transmit (positive) DSO
3 TX- Transmit (negative) DSO
4 GND Ground PWR
5 RX- Receive (negative) DSI
6 RX+ Receive (positive) DSI
7 GND Ground PWR
Available cable kit:
PN 821035 Cable SATA 500mm
