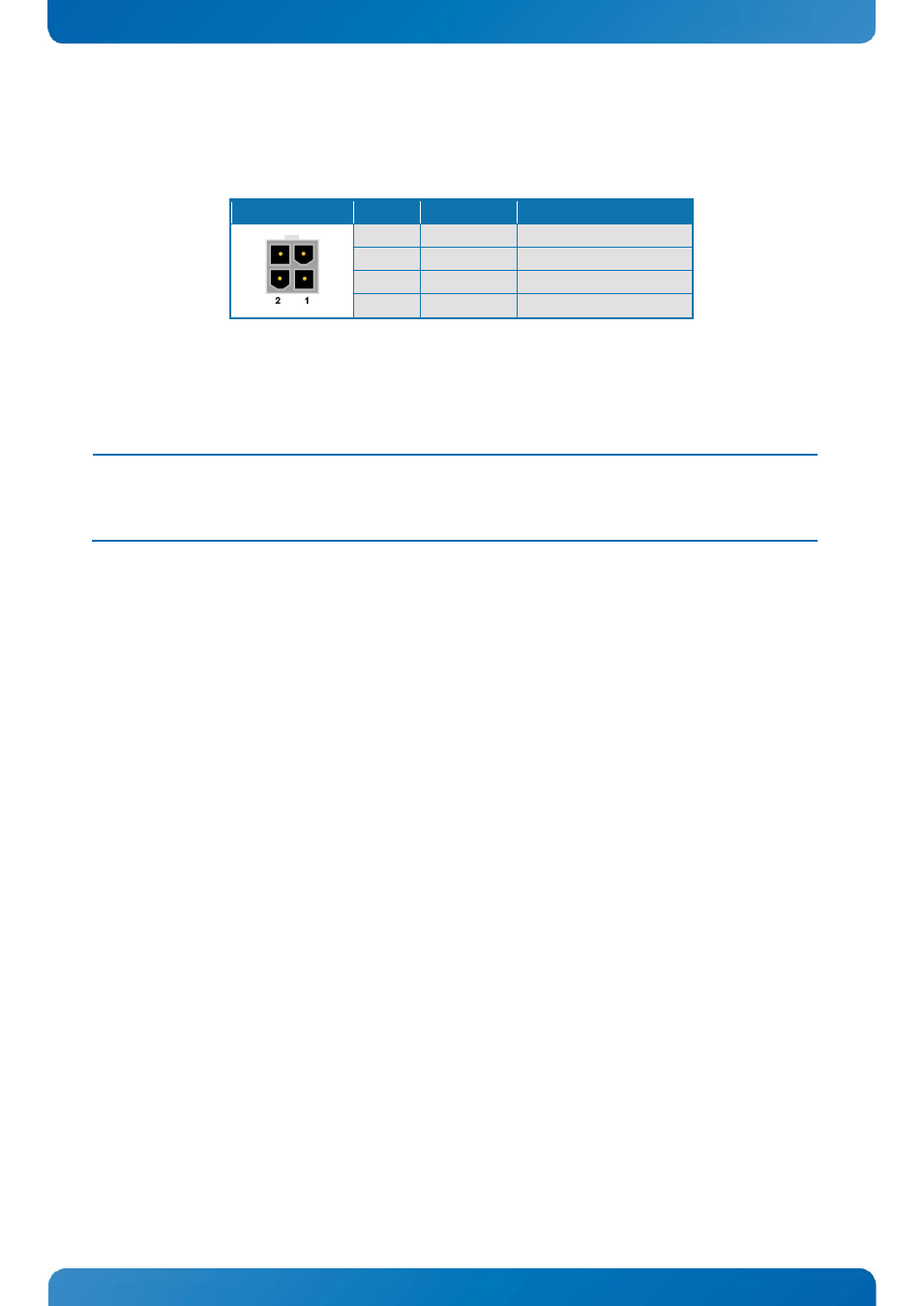

4-pin 12V Power Connector (J19)
The KTA75/Flex has an internal power input connector for supplying voltage in the range from +11.4V to
+12.6V. The power connector is a 4 pin 12V ATX connector type Lotes ABA-POW-003-K02 or similar.
Header
Pin
Signal
Description
1
GND
Ground
2
GND
Ground
3
12V
Power supply +12V
4
12V
Power supply +12V
Warning: Hot Plugging power supply is not supported. Hot plugging might damage the board.
Note 1: Use of the 4-pin ATX+12V Power Connector is required for operation of all KTA75 board versions.
Notes:
To protect the external power lines of peripheral devices make sure that
- the wires have the right diameter to withstand the maximum available current.
- to enclosure of the peripheral device fulfills the fire-protecting conditions of IEC/EN 60950.
Alternatively the DC Power External Connector can be used
