7.3

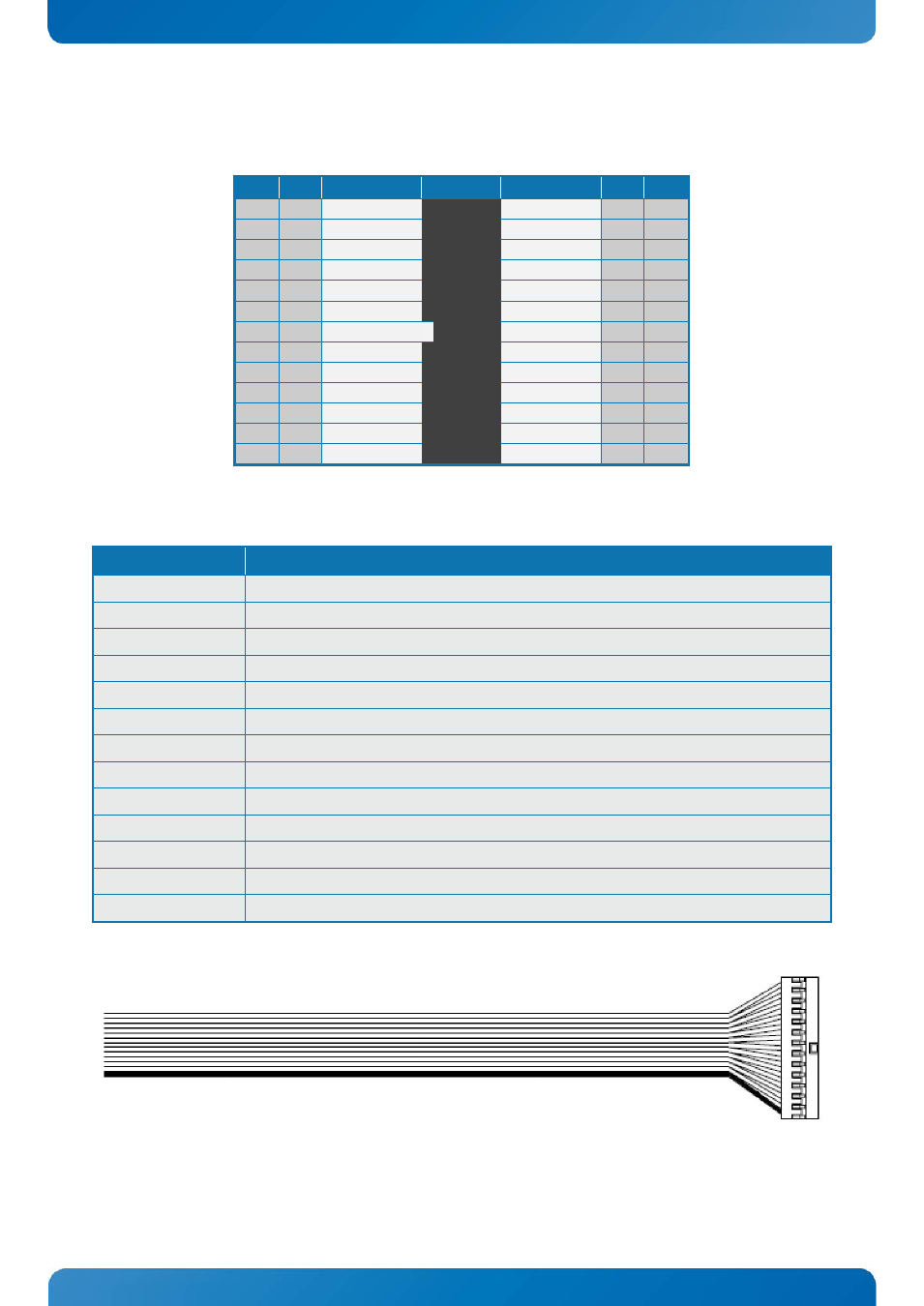

Audio Header Connector (J41)

The Audio Header connector is a 26 pin connector type Molex 87832-2620 or similar.

Note Type

Signal

PIN

Signal

Type Note

AO

LFE-OUT

1 2

CEN-OUT

AO

PWR

AAGND

3 4

AAGND

PWR

1

AO FRONT-OUT-L

5 6

FRONT-OUT-R AO

1

PWR

AAGND

7 8

AAGND

PWR

AO REAR-OUT-L

9 10

REAR-OUT-R AO

AO SIDE-OUT-L

11 12

SIDE-OUT-R

AO

PWR

AAGND

13 14

AAGND

PWR

1

AI

MIC1-L

15 16

MIC1-R

AI

1

PWR

AAGND

17 18

AAGND

PWR

1

LINE1-L

19 20

LINE1-R

1

NC

NC

21 22

AAGND

PWR

PWR

GND

23 24

NC

NC

O

SPDIF-OUT

25 26

GND

PWR

Note 1: Shared with Audio Stack connector (in Rear IO area).


Signal

Description

FRONT-OUT-L

Front Speakers (Speaker Out Left).

FRONT-OUT-R

Front Speakers (Speaker Out Right).

REAR-OUT-L

Rear Speakers (Surround Out Left).

REAR-OUT-R

Rear Speakers (Surround Out Right).

SIDE-OUT-L

Side speakers (Surround Out Left)

SIDE-OUT-R

Side speakers (Surround Out Right)

CEN-OUT

Center Speaker (Center Out channel).

LFE-OUT

Subwoofer Speaker (Low Freq. Effect Out).

NC

No connection

MIC1

MIC Input 1

LINE1

Line 1 signals

F-SPDIF-OUT

S/PDIF Output

AAGND

Audio Analogue ground


Available cable kit:



PN 821043 Cable, Audio Open-End (300 mm)
