GS160/320 System Overview 2-15
2.3.7 Clock Splitter Module
The clock splitter module converts one global signal to identical copies
of a signal that is then distributed to master phase lock loops
associated with the ASICs and the system processors within a QBB. It
also generates independent clock signals for the I/O domain.

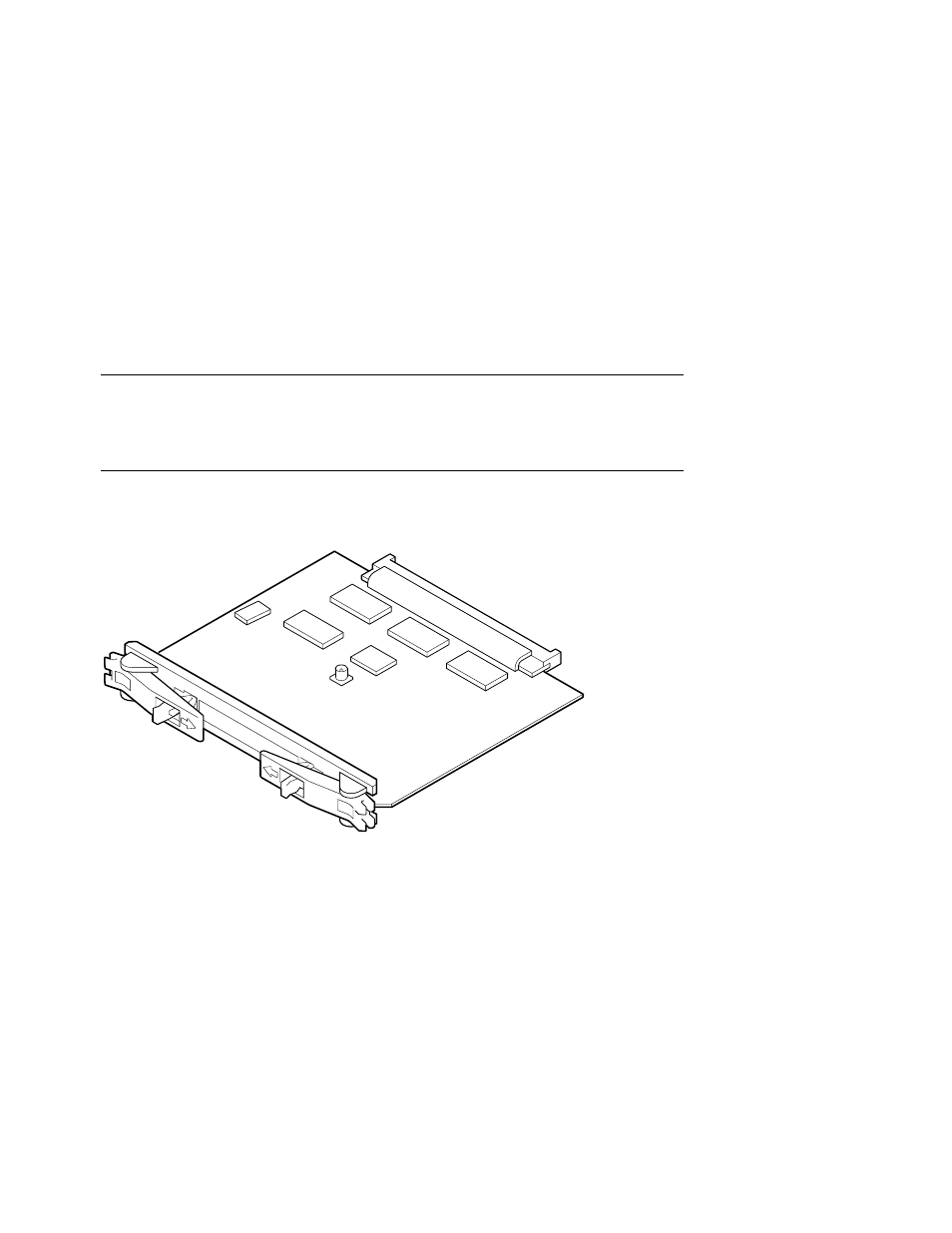

Figure 2–11 Clock Splitter Module
PK2222
